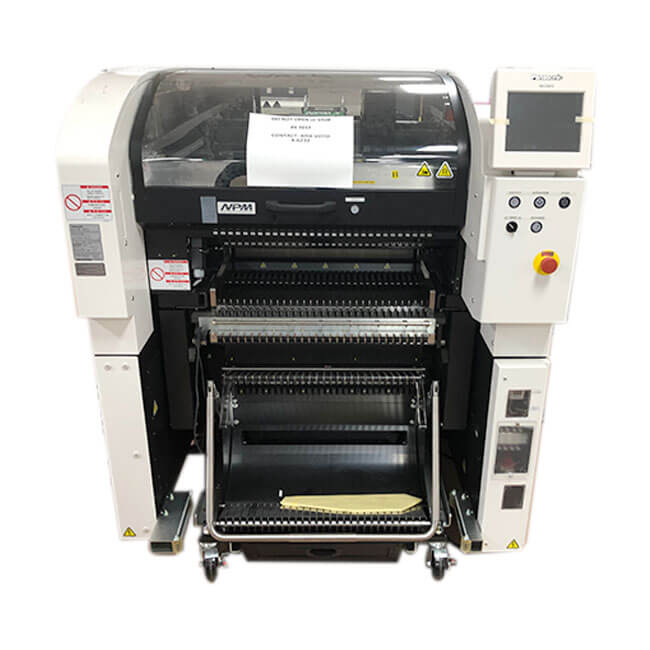

Panasonic NPM-W2 Pick and place machine

Placement Speed : 77,000 CPH
Applicable PCB : 750 x 550mm
Accuracy: ± 75 μ m /dot ± 100 μ m /component
Component Rance:IPC98(1608): 49500cph

BASIC INFO

Panasonic NPM-W2 Pick and place machine

Panasonic NPM-W2 is a high-productivity and high-quality mounting model with advanced productivity, model changeover ability, and component adaptability in variable-mix variable-volume production.

High productivity and high-quality mounting achieved at the same time

High model changeover ability

Advancement in component adaptability and support to PCB length

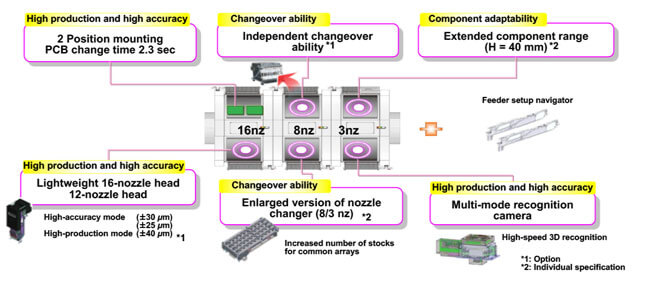

Features and Benefits of “Production Modular NPM-W2”

High-productivity and high-quality mounting, model changeover ability, and component adaptability in variable-mix, variable-volume production

Panasonic NPM-W2 surface mount machine Specifications

Machine Model	NPM-W2
Speed	16+16 head		12+12 head		8+8 head	3+3 head
	High Speed Mode (ON)	High Speed Mode (OFF)	High Speed Mode (ON)	High Speed Mode (OFF)
	77,000cph (0.047s/chip)	70,000cph (0.051s/chip)	64500cph (0.056s/chip)	62500cph (0.058s/chip)	40000cph (0.090s/chip)	16,000cph, (0.327s/chip)
Component Rance	IPC98(1608): 59200cph	IPC98(1608): 56600cph	IPC98(1608): 49500cph	IPC98(1608): 49500cph		12500cph (0.423s/QFP)
Feeder Size/Reel Capacity	8mm/Max.120

PCB Size	Single Conveyor:
	50x50mm~750x550mm(Batch Installation)
	50x50mm~750x510mm;
	Dual Conveyor:
	50x50mm~350x550mm（Dual position installation）
	50x50mm~750x260mm;
Placement Accuracy（CPK≧1）	±40µm/chip	±30µm/chip	±40µm/chip	±30µm/chip	±30µm/chip	±30µm/QFP
		±25µm/chip			±30µm/ 12-32mm QFP,
					±50µm/ smaller than 12mm QFP,
					（CPK≧1）
