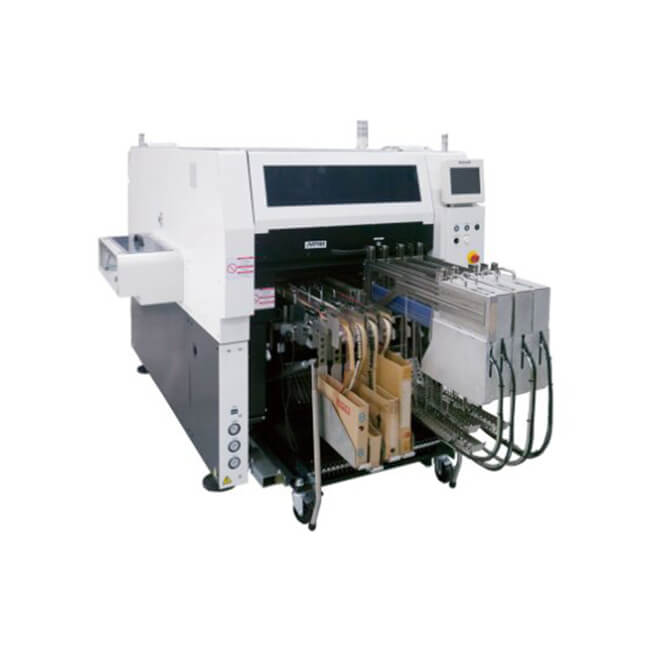

Panasonic NPM-VF Odd-form Component Insertion Machine

PCB Dimensions (mm): L 50 x W 50 ~ L 510 x W 460
PCB Exchange Time: 4.5s
Applicable Components Max. dimensions : L 130 mm × W 35 mm × H 60 mm • L 150 mm × W 38 mm × H 29 mm
Electric Source: 3-phase AC 200, 220, 380, 400, 420, 480 V 2.7 kVA

BASIC INFO

Panasonic NPM-VF Odd-form Component Insertion Machine

Supporting a wide variety of component sizes, packages, weights, and number of pins as an ideal solution for the automation of large and odd-form component insertion.

- Automation of odd-form components insertion process

- Supports SMT specifications

- Versatile and flexible support

- Various configurations of head tools and machine feeder configurations to adapt to different types of components

- Contributes to labor-saving and stable production with high productivity, flexibility and high quality manufacturing

Features and Benefits of “Odd-form Component Insertion Machine NPM-VF”

A single machine can handle odd-form components, radial/axial components and SMT placement

Components

- Component size Max. L 130 mm x W 35 mm

- Height Max. 60 mm

- Component weight Max. 200 g

Push force Max. 100 N

High-speed insertion with a maximum speed of 0.65 s is achieved by alternating insertion in a 2-beam (2-head) structure.

High-quality and stable production with image recognition and sensing technology developed

Head camera

Component camera

LED illumination is focused with a lens onto the lead only to recognize the position of the lead tip

Featured Specs

SKU	NM-EJR9A
Model ID	NPM-VF
Model No.	NM-EJR9A: Standard Conveyor
PCB Dimensions (mm)	L 50 x W 50 ~ L 510 x W 460
PCB Dimensions (mm)	Standard Conveyor:
	L 50 x W 50 ~ L 510 x W 460
	Anvil Conveyor (Option):
	L 50 x W 50 ~ L 460 x W 400
Max. PCB Mass *	Standard Conveyor & Anvil Conveyor:
	Up to 3kg
	[*1]
PCB Thickness	Standard Conveyor & Anvil Conveyor:
PCB Thickness	0.3 ~ 8 mm
PCB Flow	Standard Conveyor & Anvil Conveyor:
PCB Flow	Left ← Right / Left → Right (Flow direction is selectable)
Insertion Direction	Standard Conveyor & Anvil Conveyor:
Insertion Direction	360º (± 180º ) *1 degree unit
Insertion Push Force	Standard Conveyor & Anvil Conveyor:
Insertion Push Force	Up to 100 N
PCB Exchange Time	Standard Conveyor:
	4.5 s
	Anvil Conveyor (Option):
	5.5 s
Applicable Components	Standard Conveyor & Anvil Conveyor:
	Max. dimensions : L 130 mm × W 35 mm × H 60 mm • L 150 mm × W 38 mm × H 29 mm
	Max. component mass : 200g
Electric Source	3-phase AC 200, 220, 380, 400, 420, 480 V 2.7 kVA
Pneumatic Source	0.5 ~ 0.8 MPa, 200 L /min (A.N.R.)
Dimensions (mm)	W 1,866 x D 2,332 x H 1,554 (Main body only)
	W 2,166 x D 2,332 x H 1,554 (When downstream extension conveyor is connected)
	Note: Excluding the monitor, signal tower and ceiling fan cover.
Mass	2,590 kg (Only for main body : This differs depending on the option configuration)
