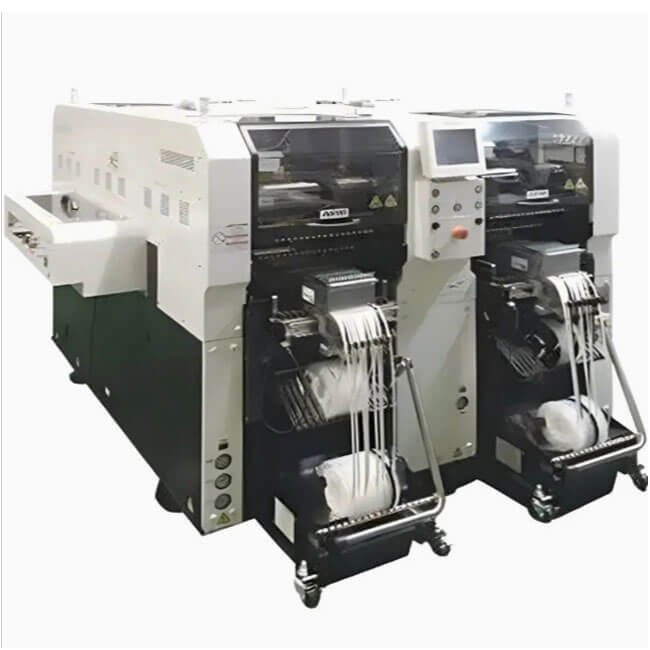

Panasonic NPM-DX Pick and place machine
The NPM-DX is Panasonic's next generation of X-Series mounting production concept for Smart manufacturing. The NPM-DX boasts a stable operation based on the autonomic function, Autonomous Line Control, allowing for APC system and automatic recovery option.
Realize reduced labor and improved utilization with the Concentrated control feature. This enables floor management system and available remote operation option. Reduced your work variations with improved navigation and automated items such as feeder setup navigation and component supply navigation.
Key Features
Standard installation of new functions like Changeover, Component Supply and Error Recovery for better workability and reduced labor needs
Data creation, the feeder cart (17-slot) , tape feeder and nozzle are compatible with NPM series
Taking the concept of NPM series Line connection with NPM-D and NPM-TT series is enabled
Available Automatic Recovery option (Pickup position automatic teach in case of an error)
Optional Remote operation option minimizes the amount of human-dependent work associated with the NPM-DX

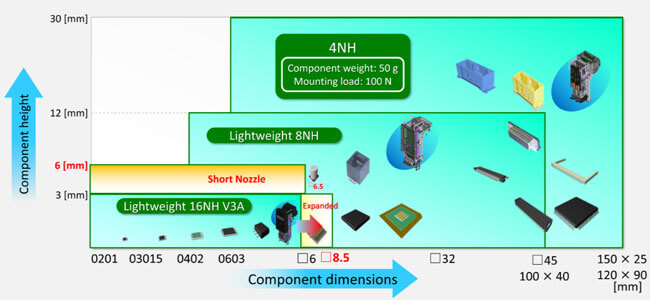

Features and Benefits of “Modular Placement Machine NPM-DX”Expansion of compatible components for various placement heads

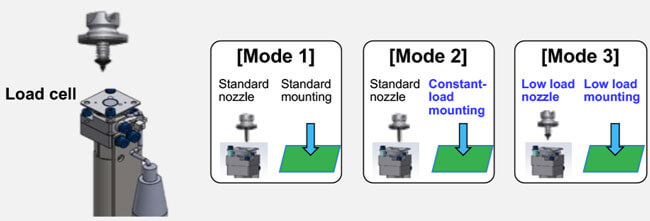

Enables high-accuracy load checking, which can support 0.5N of mounted load
High-accuracy load cells and additional measurement modes support constant load control and load checking of low-load nozzles
| SKU | NM-EJM8D |
| Model ID | NPM-DX |
| Model No. | NM-EJM8D |
| PCB Dimensions (mm) | Single-lane mode: L 50 × W 50 ～ L 510 × W 590 |
| Dual-lane mode: L 50 × W 50 ～ L 510 × W 300 | |
| *When the long spec. conveyor is selected | |
| PCB Exchange Time | 2.1 s ( L 275 mm or less) |
| 4.8 s ( L 275 mm or over to L 460 mm or less) | |
| *When the short spec. conveyor is selected / May differ depending on PCB specifications | |
| Electric Source | 3-phase AC 200, 220, 380, 400, 420, 480 V 5.0 kVA |
| Pneumatic Source * | Min.0.5 MPa、200 L /min（A.N.R.) |
| [*1] | |
| Dimensions (mm) * | W 1,665 [*2] × D 2,570 mm [*3] × H 1,444 mm [*4] |
| Mass | 3,600 kg |
| (Only for main body : This differs |
SMT Pick and place machine Brand
Efficient Technology Co.,Ltd provide a full SMT assembly line solutions, including SMT Production Line, SMT Pick and place machine, SMT Stencil Printer, SMT Inspection equipment, SMT Weling equipment, SMT Intelligent Storage System, SMT Automatic Insertion Machine, SMT Peripheral Equipment, SMT Feeders, SMT Nozzles, SMT Spare Parts etc any kind SMT machines you may need, please contact us for more information: WeChat: +8613714564591 Email: sales@efsmt.com
FAQ:
Q: What we can do for you?
A: One-stop SMT Solution Supplier; Reliable SMT Partner.
Q.What is your MOQ requirement for the machine?
A. 1 set moq requirement for the machine.
Q. This is the first i use this kind of machine, is it easy to operate?
A: Provide free training，There are also English manuals or instructional videos to show you how to use the machine.
Q: If the machine has any problem after we receive it, how can we do?
A: Our engineer will help to solve it first, and free parts send to you in machine warranty period.
Q: Do you provide any warranty for the machine?
A: Yes 1 year warranty will be provided for the machine.
Q: What is your payment terms?
A: 30% deposit in advance and 70% balance before shipment.
