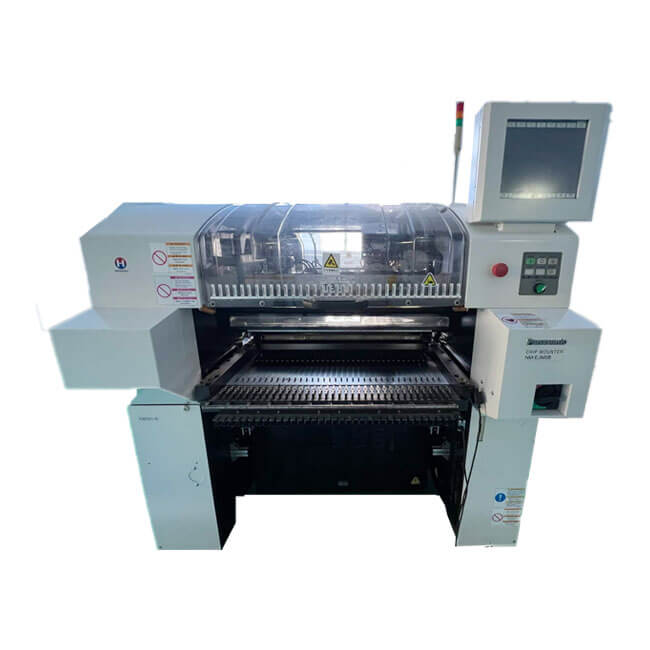

Panasonic CM101D Pick and place machine
Modular Placement Machine CM101-D
- Unites technologies of our industry-leading CM-series into a lean modular solution
- Flexible solution accommodates production variations with ease
- Minimal investment for quick ROl
- Compatible with other CM-series equipment
Model ID
CM101-d
Model No.
NM-EJM5B
PCB dimensions
L 50 mm × W 50 mm to L 460 mm × W 360 mm
High-speed head
Max. speed
12 nozzles
0.144 s/chip (Type A-2)
Placement accuracy
Component dimensions
±40 μm/chip (Cpk≥1)
(01005") 0402 chip +t to L 12 mm × W 12 mm × T 6.5 mm
High-flexibility head
Max. speed
LS8 nozzles
0.19 s/chip (Type A-0)
Placement accuracy
Component dimensions
± 50 μm/chip, ± 35 μm/QFP Z4 mm to ± 50 mm, ± 50 μm/QFP <24 mm (Cpk≥1)
(01005") 0402 + chip to L 100 mm × W 50 mm × T 15 mm *s
Multi-functional head
Max. speed
3 nozzles
0.8 s/QFP (Type B-0)
Placement accuracy
Component dimensions
±35 μm/QFP (Cpk≥1)
(0201") 0603 chip to L 100 mm × W 90 mm × T 25 mm *s
PCB exchange time
about 4.0 s (When no components are placed on the back of the PCB)
Electric source
3-phase AC 200, 220, 380, 400, 420, 480 V 1.4 kVA
Pneumatic source *2
0.5 MPa, 150 L/min (A,N.R.)
Dimensions *2
W 1 530 mm × D 1 807 mm × H 1 430 mm *3
Mass *4
1 720 kg
*Values such as maximum speed and placement accuracy may vary depending on operating conditions.
*Please refer to the'Specification' booklet for details.
*1: The 0402 chip requires a specific nozzle/feeder.Please contact us for details.
*2:Only for main body
*3:Excluding monitor and signal tower
*4:Only for main body. This may depend on option.
*5:When T is more than 11.5mm, special nozzles are needed, Please consult us separately.
*6:When T is more than 21mm, special nozzles are needed. Please consult us separately.
SMT Pick and place machine Brand
Efficient Technology Co.,Ltd provide a full SMT assembly line solutions, including SMT Production Line, SMT Pick and place machine, SMT Stencil Printer, SMT Inspection equipment, SMT Weling equipment, SMT Intelligent Storage System, SMT Automatic Insertion Machine, SMT Peripheral Equipment, SMT Feeders, SMT Nozzles, SMT Spare Parts etc any kind SMT machines you may need, please contact us for more information: WeChat: +8613714564591 Email: sales@efsmt.com
FAQ:
Q: What we can do for you?
A: One-stop SMT Solution Supplier; Reliable SMT Partner.
Q.What is your MOQ requirement for the machine?
A. 1 set moq requirement for the machine.
Q. This is the first i use this kind of machine, is it easy to operate?
A: Provide free training，There are also English manuals or instructional videos to show you how to use the machine.
Q: If the machine has any problem after we receive it, how can we do?
A: Our engineer will help to solve it first, and free parts send to you in machine warranty period.
Q: Do you provide any warranty for the machine?
A: Yes 1 year warranty will be provided for the machine.
Q: What is your payment terms?
A: 30% deposit in advance and 70% balance before shipment.
