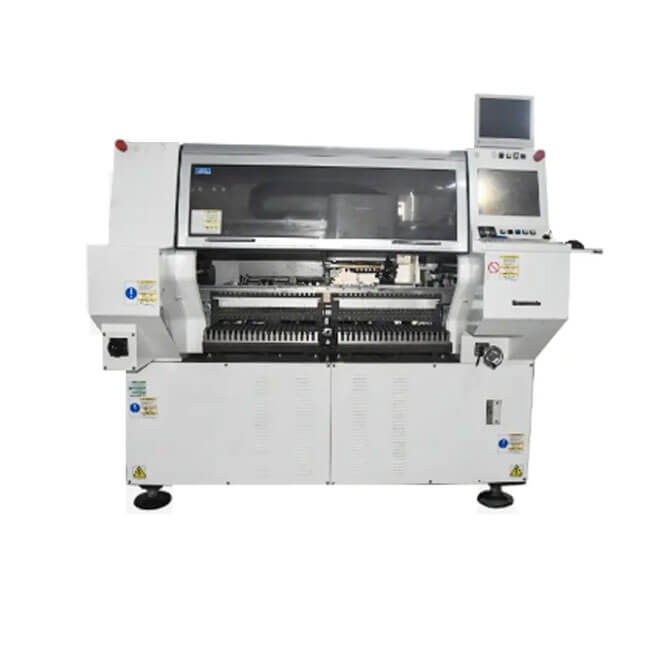

Panasonic BM221 Pick and place machine

Speed: 0.25S
Mounting accuracy :±50 µm/ chip (Cpk≥1), ±30 µm/QFP(Cpk≥1)
Substrate size (mm) :L50 × W50 ~ L330× W250
Component size (mm) : 0603 chip ~ L150 × W25 ×T15orL55× W55×T2

BASIC INFO

Panasonic BM221 Pick and place machine

The BM221 mounter has powerful functions, such as feeder setting, nozzle setting, material station setting, patch setting, mounter parameter setting, nozzle switching station setting, MARK point setting, IC mounting setting, mounting speed setting, and program optimization. Most of the structural parts of the BM221 mounter adopt a single structure, rather than a dispersed assembly structure, effectively improving the overall stability. Perennial use will not produce mechanical structure shaking and resulting in mounting errors. With the automatic track system and PCB automatic clamping system, it can be perfectly connected with the front and back placement machine or the docking station to realize the complete automatic production of the entire SMT mounting line. The automatic nozzle switching station can satisfy the automatic exchange of the nozzle that absorbs different sizes of components. Three sets of precision camera visual recognition system: can complete programming teaching, MARK point recognition, component recognition and other work to ensure mounting accuracy

Device model: BM221

Substrate size (mm) :L50 × W50 ~ L330× W250

Mount speed :0.25s/ chip
Mounting accuracy :±50 µm/ chip (Cpk≥1), ±30 µm/QFP(Cpk≥1)
Number of components: 60 (double braid rack: 120), pallet: 80
Component size (mm) :
0603 chip ~ L150 × W25 ×T15orL55× W55×T25
Substrate replacement time: 22.5s(when moving specifications at high speed, *6)
Power supply three-phase AC200V, 220, 380, 400, 420, 480V, 2.68kVA
Air pressure source: 0.43MPa, 150L/min (A.N.R.)
Size :1950/2060/1500mm,
Weight :2000kg
