Nordson XT-6 Series X-ray Inspection Machine

CMOS Flatpanel Detector：50 μm pixel size ( 5 MPix)
Max. inspection area：400 mm to 350 mm
Max. sample weight:：5 kg
Position repeatability：+/- 5 mm

BASIC INFO

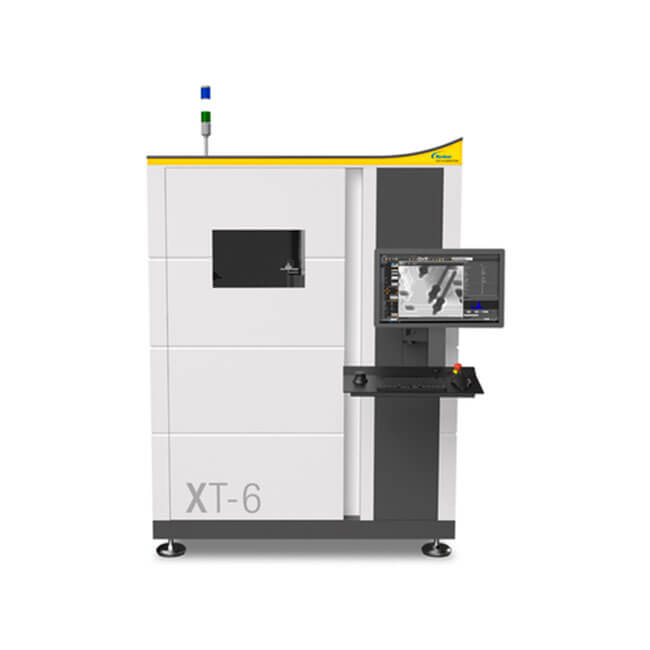

Nordson XT-6 Series X-ray Inspection Machine

The XT-series provides the advanced inspection capability of Nordson TEST & INSPECTION's inline system in a smaller footprint manual load/island of automation system. The platforms are designed for ﬂexibility and ease of use for a wide variety of products requiring 2D and 2.5D automated X-ray inspection. The XT-6/XT-6A platform is a highly ﬂexible automated X-ray inspection system with minimum footprint and a parallel-kinematic Hexaglide manipulation unit for extreme-angle off-axis image acquisition with high resolution. It is suitable for high-quality X-ray analysis of electronic assemblies and material analysis of parts that require ﬂexible part manipulation with multiple inspection angles. For batch modes and volume inspection the XT-6 can be equipped with a single-sided conveyor setup and magazine load/unload station (XT-6A).

High flexibility, island type AXI system

X-ray System Features

Flexible AXI system for manual load and island of automation conﬁgurations

Microfocus X-ray tube (sealed tube / maintenance free)

Extreme angle shot capability (up to 65 deg)

Multiple programmable motion system with servo drives

Digital CMOS flatpanel detector

Automatic grey-level and geometrical calibration

Barcode scanner for serial number and product type selection

Full product traceability via customized MES-Interface

Automatic grey-level and geometrical calibration

Full product traceability via customized MES-Interface

Highlights

Barcodereader

Heavy duty transport system

Low dose radiation filter

Hybrid or chip level assembly setup

Available Configurations

Depending on the type of product & inspection task

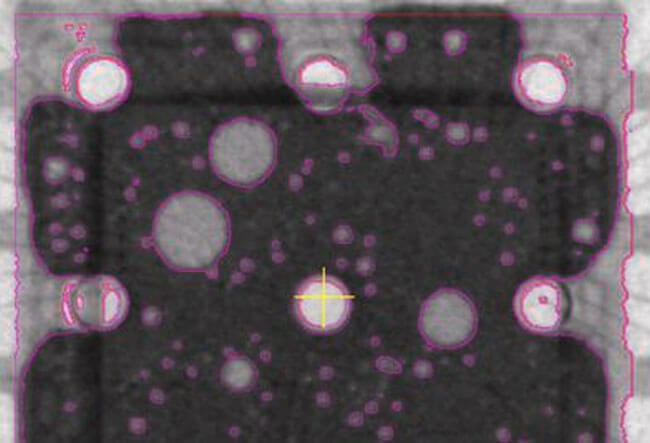

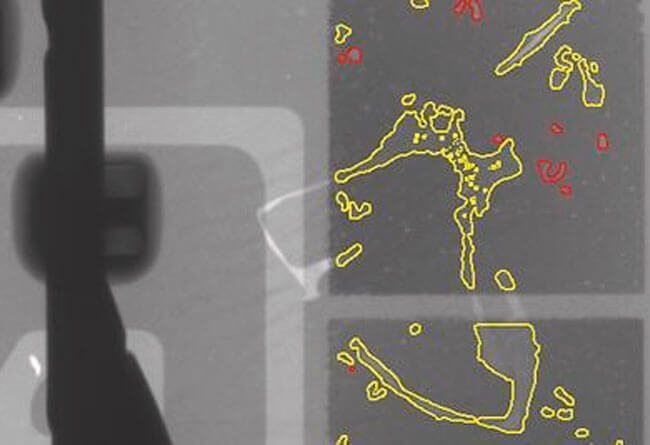

SMT setup for component and solder-joint inspection on PCB

XT-6(A) Transmission (2D) + SFT™ + Off-Axis (2.5D)

Applications

Inspection Technologies

The modular AXI system concept provides the unique capability to use several inspection technologies in one system. Depending on the specific application request the optimum inspection technique can be selected and/or combined.

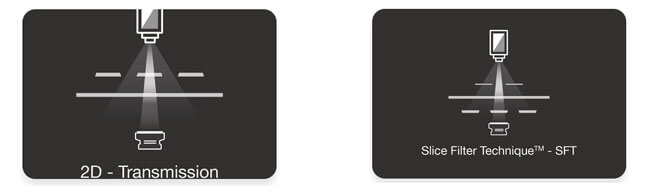

2D Transmission

Transmission is two-dimensional image capturing with a fixed detector position

SFT Slice Filter Technique

High-speed technique using first side image to filter out from double-side image

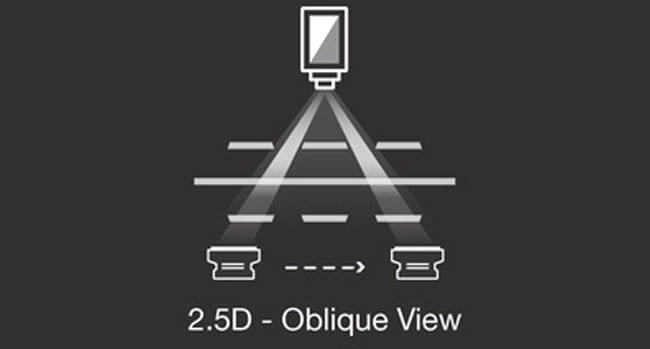

2.5D-Oblique View

AXI on programmable angle-shots up to 50 (60) dgr (used for high performance BGA and PTH inspection)

Specifications at a Glance

Dimensions:	1940 mm (H) x 2250 mm (W) x 1610 (D
Weight:	2,000 kg
Safe Operating Temperature:	15°-28°C optimal 20°-25°C
Power Consumption:	Max.6k W
Line Voltage:	220 VAC, single phase, 16A
Air:	5-7 Bar, < 21/min, filtered (30μ), dry, oil free
X-ray Source (sealed tube)
Energy:	SMT-Setup
Energy:	120 kV / 40 W
Grey resolution:	up to 14 Bit
Detector Types:
CMOS Flatpanel Detector	50 μm pixel size ( 5 MPix)
CMOS Flatpanel Detector	75 μm pixel size ( 3 MPix)
Parallel-kinematic Hexaglide unit with 6 axes
x,y (linear drives)	sample table
Position repeatability	+/- 5 mm
X-ray tube (sealed):	Z-drive
Handling
XT-6A	single lane,
XT-6A	in-out same side[
Inspection features
Max. sample size	400 mm to 350 mm
Max. inspection area	400 mm to 350 mm
Min. sample size	100 mm to 50 mm
Sample thickness	0,8 - 10 mm
Max. sample weight:	5 kg
Angle shot capability:	0 - 65 dgr
Resolution	down to 3 μm / pix

Assembly clearance
Topside (incl. board thickness):	160 mm
Bottom side (excl. board thickness)	35 mm
Min. edge clearance for clamping:	3 mm

Inspection speed
Transmission	up to 2 images /s
Off-Axis	up to 2 images /s
Options
Barcodereader
Heavy duty transport system
