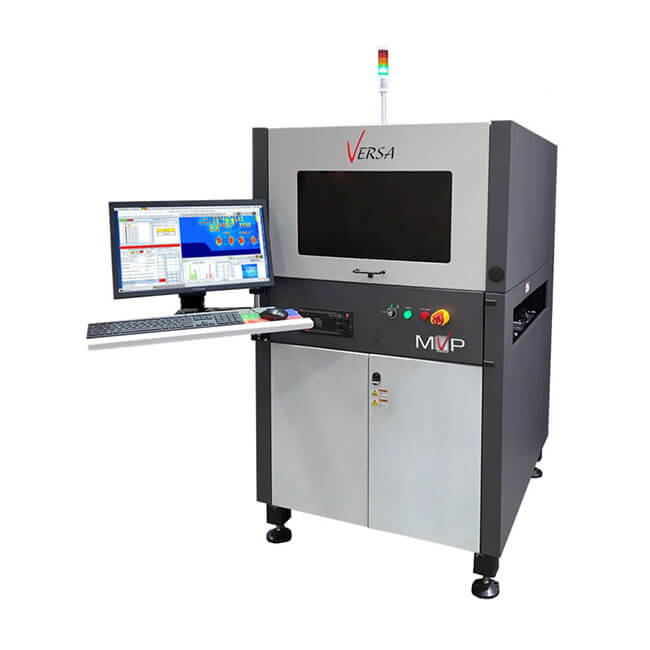

MVP Versa Duo 3D SPI Machine

Inspection Envelope3：508mm (20") x 457mm (18")3
Board Thickness4：0.254 - 12.5mm (0.01 - .5")
Conveyor Length：996mm (39")
Weight6：500 kgs (1100 lbs.)

BASIC INFO

MVP Versa Duo 3D SPI Machine

MVP’s new Cross Platform, High Performance 3D SPI Solution

The first part of any SMT process is Paste. MVPs Versa Platform provides high accuracy paste inspection. High accuracy paste measurements are made using a choice of 12um or 5um 3D measurement systems.

MVPs latest Versa Duo is our flagship 2D/3D system offers lightning-fast inspection ideal for hybrid assemblies, paste applications, and high-speed SMT.

With Versa Duo, enjoy swift programming and seamless integration into every stage of your production line.

Highest Accuracies at the fastest throughputs

“on the fly” 3D solder paste metrology

Full Line Integration and feedback to Printers

Built in barcode reading for traceability

Fastest Programming

MVP’s solutions allow you to merge stencil and placement data and standard inspection criteria.

For inspection, a single setup for all measurements, the same tool measures:

Height (Presence/Absence)

Bridging

Position/Translation

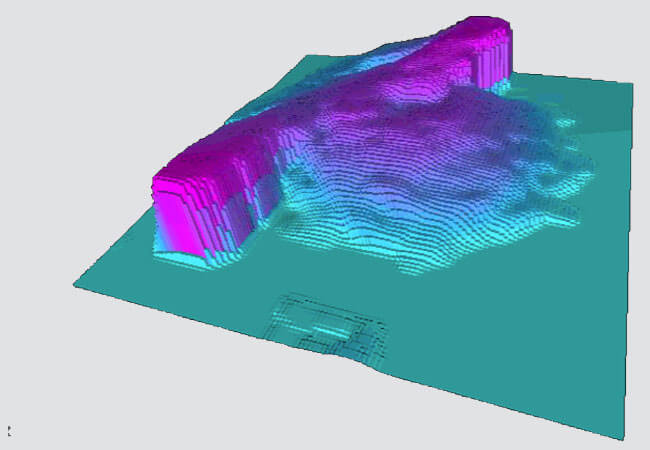

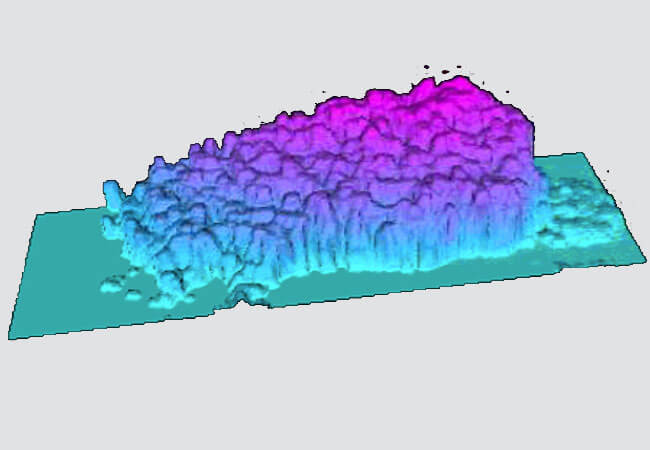

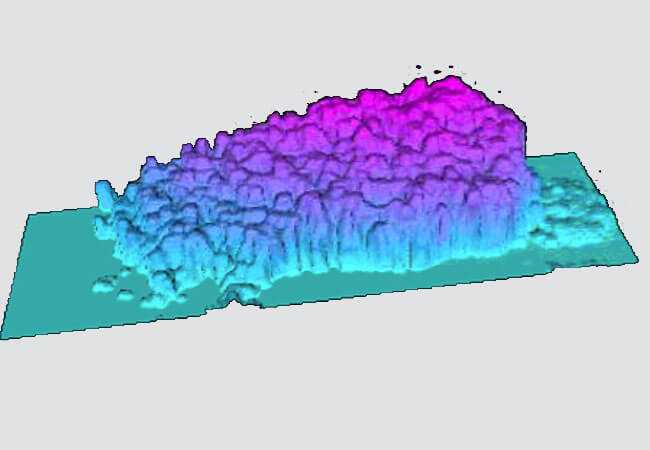

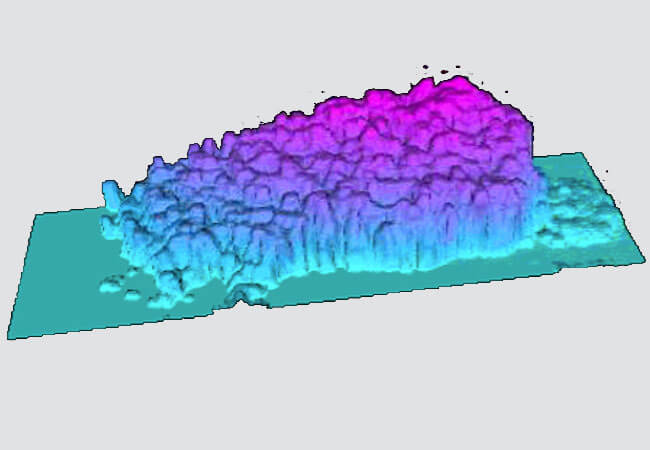

Paste Height and Volume

Fast Program Set-up

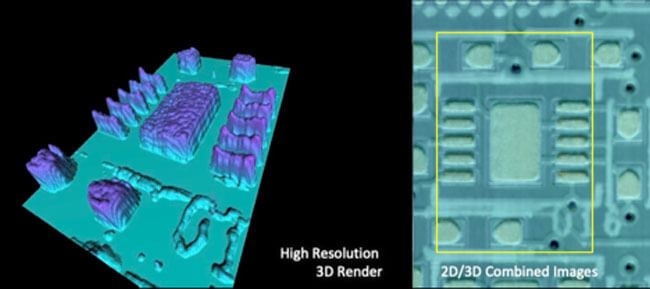

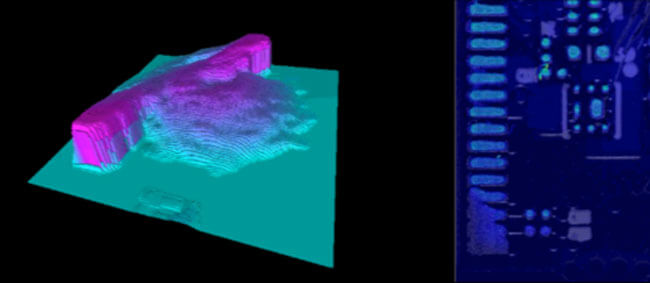

High Resolution Defect Analysis

High Resolution Defect Review

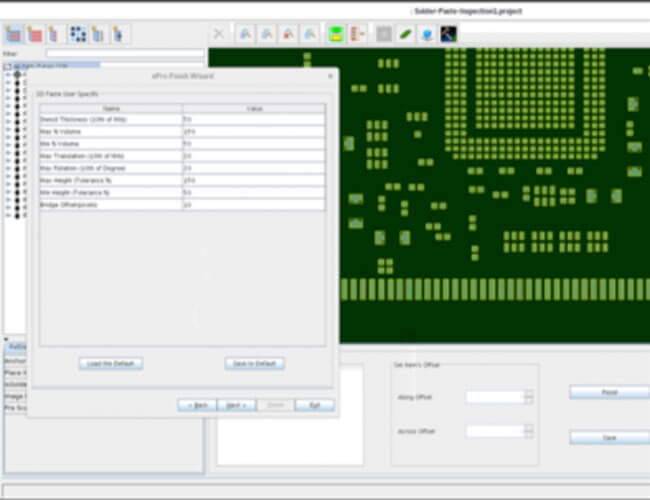

Cultivating on our expertise in defect detection for SMT and microelectronics inspection, MVP’s Versa allows for versatile program strategies in a single software toolset. Using MVP’s ease-of-use ePro software guides you through the program generation process allowing for each inspection strategy to be developed quickly and automatically. Import capabilities include Gerber, ODB++ and a variety of other formats. Combined with MVP’s leading-edge optimization tools for high performance and minimized over rejection, ease-of-use and rapid programming has been a paramount objective for our latest software suite. Designed with future technology trends in mind, Versa’s 3D and optical capabilities provide high accuracy measurement capabilities for all current and future paste and SMT inspection. The Versa has multiple 3D options for even the most complex of inspection challenges Using standard software and hardware across the Versa’s cross-process capability allows you to reduced support costs as you only need to provide support and training for a single platform vs. multiple different system. MVP’s leading reliability allows you to obtain the highest performance and uptime from your investments.
