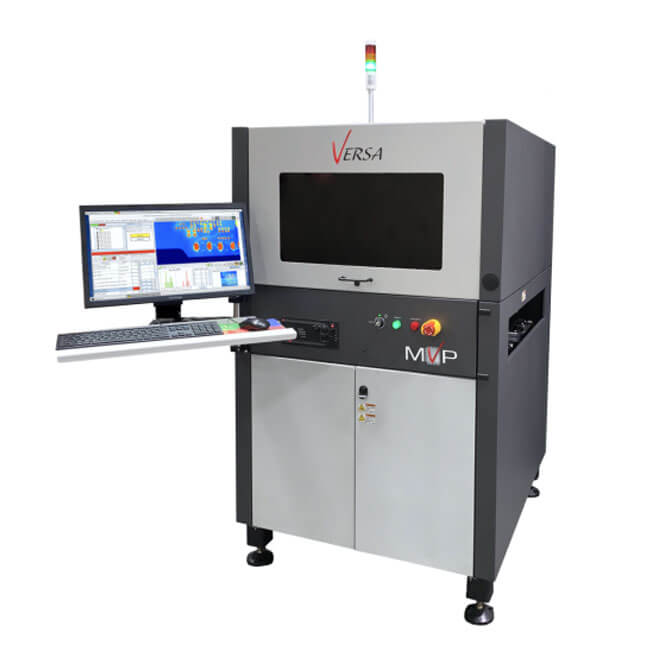

MVP Versa 3D AOI Machine

Optics Camera：25mp or 12mp
3D Speed1 (CM2 /s)：16
Clearance：Top Side to 50.8mm (2")
Footprint：990mm (39”) W x 1100mm (43”) D x 1580mm (62”) H

BASIC INFO

MVP Versa 3D AOI Machine

MVP’s new Cross Platform, High Performance 3D AOI Solution

Drawing upon three decades of groundbreaking innovation in Automated Optical Inspection, MVP proudly presents the Versa platform, a cutting-edge solution integrating the latest 3D technologies into our renowned SMT and SPI offerings. Representing a quantum leap forward in PCB assembly inspection, the Versa platform delivers unparalleled flexibility and performance.

Uniquely, MVP’s Versa system allows fast programming and the flexibility to fit into all the processes in the line: Paste Inspection, Pre-Reflow, Post-Reflow, Post-Wave and Selective Solder.

The Versa 3D AOI Solution is available in two models.

Versa Duo: Our flagship 2D/3D system offers lightning-fast inspection ideal for hybrid assemblies, paste applications, and high-speed SMT.

Versa Pro: Elevate your SMT solder fillet inspection with unrivaled precision and high resolution, featuring state-of-the-art Shadowless 3D capabilities.

The Versa system, is the first introduction in a new series of MVP 3D AOI products distinguished by: high-performance defect detection, lowest over-rejection and a low cost of ownership. With the enhanced 3D capabilities, the Versa maintains MVP’s flagship process flexibility and scalability.

Cultivating on our expertise in defect detection for SMT and microelectronics inspection, MVP’s Versa allows for versatile program strategies in a single software toolset. Using MVP’s ease-of-use ePro software guides you through the program generation process allowing for each inspection strategy to be developed quickly and automatically. Import capabilities include Gerber, ODB++ and a variety of other formats. Combined with MVP’s leading-edge optimization tools for high performance and minimized over rejection, ease-of-use and rapid programming has been a paramount objective for our latest software suite. Designed with future technology trends in mind, Versa’s 3D and optical capabilities provide high accuracy measurement capabilities for all current and future paste and SMT inspection. The Versa has multiple 3D options for even the most complex of inspection challenges Using standard software and hardware across the Versa’s cross-process capability allows you to reduced support costs as you only need to provide support and training for a single platform vs. multiple different system. MVP’s leading reliability allows you to obtain the highest performance and uptime from your investments.

Key Features

Versatile Capabilities That Cover, in a Single Platform Paste, Pre-Reflow, Post-Reflow, Post-Wave, BGA

12 Megapixel Color Camera with 3D Lighting w/ Standard 5-10um pixel resolution

Projector or Laser Based 3D Capability w/ 1um Repeatability

Standard Software Platform for all Places in the line

Linear axis and 0.5 micron linear encoders

Fast Programming Generation using ePro and Validate

Import capabilities include Gerber, ODB++ and a variety of other formats
