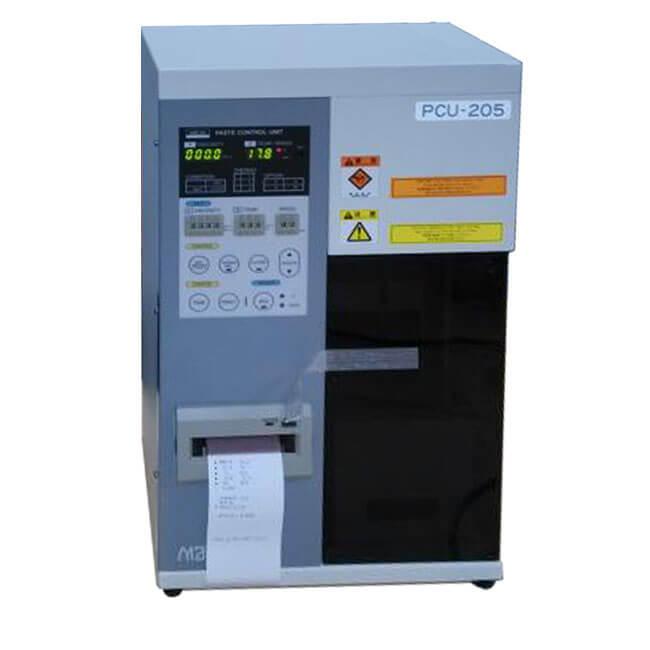

MALCOM PCU-205 Solder paste viscometer

The viscosity was measured：5Pa.s to 800Pa.s
Sliding speed：(0.6 × N) S-1
Accuracy of rotation：± 2% encoder control
Adjust the temperature range：Room temperature ± 5 ℃ (setting range of 15 ~ 30 ℃) thermostatic tank containing

BASIC INFO

MALCOM PCU-205 Solder paste viscometer

Malcom PCON-205 Paste Viscometer Features:

Reproducibility of non-Newtonian fluid well, but also continuous measurement (sliding speed, sliding time of a certain)

· The fixture in the container is suitable for all kinds of solder paste cans

· Automatic measurement (PCU-203, 205)

· Built-in printer can print a variety of data

· Adjust the temperature according to the sealability of the measuring section

· Personal computer connection is possible, automatic measurement, data read out to do automatic calculation (PCU-205)

Specifications:

Name	PCU-205
Viscosity sensor	Screw pump type
The viscosity was measured	5Pa.s to 800Pa.s
Number of revolutions	1 to 50 RPM
Sliding speed	(0.6 × N) S-1
Measurement accuracy	Indication value ± 5%
Accuracy of rotation	± 2% encoder control
Repeatability	± 0.5% (measurement accuracy is 10RPM speed with silica gel test solution test results)
Adjust the temperature range	Room temperature ± 5 ℃ (setting range of 15 ~ 30 ℃) thermostatic tank containing
Setting function	When the buzzer (setting the value of viscosity)
Logger output	Viscosity:
Built-in printer	Temperature, viscosity, sliding speed, laps, date
Automatic measurement	On-line measurement - Note
Interface	RS-232C
power supply	70VA
Accessories	Silicone KF96, stirring inside and outside the tube
