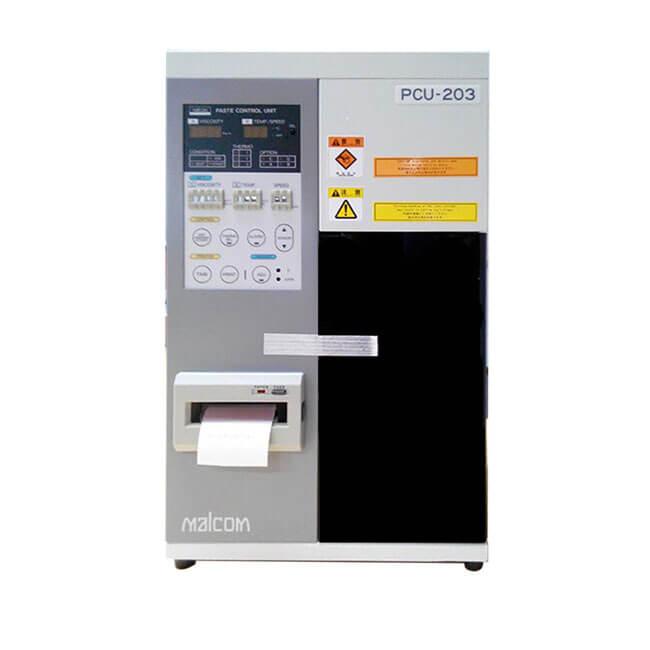

MALCOM PCU-203 Solder paste viscometer

The viscosity was measured：5Pa.s to 800Pa.s
Number of revolutions： 1 to 50 RPM
Sliding speed：(0.6 × N) S-1
Measurement accuracy：Indication value ± 5%

BASIC INFO

MALCOM PCU-203 Solder paste viscometer

Note: The measurement accuracy is measured at 10 RPM using silica gel test solution

Malcom PCU-203 Paste Viscometer Online Measurement Content:

Automatic measurement, read data, flow characteristics charts, viscosity index K / stir value of TI / viscosity non-recovery rate R automatic calculation.

Specifications:

Name	PCU-203
Viscosity sensor	Screw pump type
The viscosity was measured	5Pa.s to 800Pa.s
Number of revolutions	1 to 50 RPM
Sliding speed	(0.6 × N) S-1
Measurement accuracy	Indication value ± 5%
Accuracy of rotation	± 2% encoder control
Repeatability	± 0.5%
Adjust the temperature range	Room temperature ± 5 ℃ (setting range of 15 ~ 30 ℃) thermostatic tank containing
Setting function	When the buzzer (setting the value of viscosity)
Logger output	Viscosity: 1 mV / Pa · s, temperature: 10 mV / ° C
Built-in printer	Temperature, viscosity, sliding speed, laps, date
Automatic measurement	JIS standard measurement method
Interface
power supply	AC100V, 50 / 60Hz 70VA
Accessories	Silicone KF96, stirring inside and outside the tube
