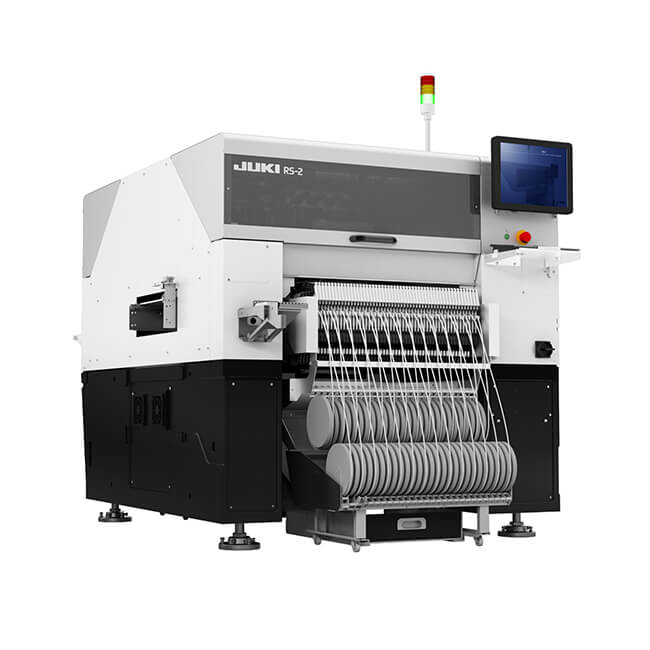

JUKI RS-2 Pick and place machine

Placement Speed : 50,000 CPH
Applicable PCB :800mm*370mm
Applicable Part : 03015-50 mm x 150 mm (1 x 3 segment recognition) x □74mm (2 x 2 segment recognition)
Accuracy: ±35μm(Cpk≧1)

BASIC INFO

JUKI RS-2 Pick and place machine

High speed of 50,000CPH

By positioning the laser sensor closer to the board and reducing travel time from pick-up to placement, the one-head mounter achieves an optimal speed of 50,000 CPH in its ideal conditions.

*Optimum condition

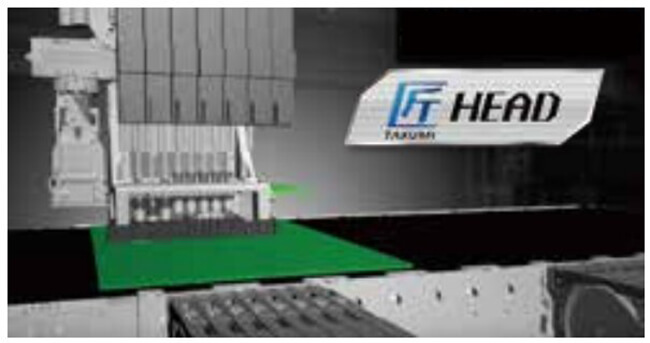

“TAKUMI Head” with adaptive sensor height

The height of the laser sensor on the “TAKUMI Head” automatically adjusts based on the height of each component being placed,
allowing precise pick-up and placement.
This 8-nozzle “TAKUMI Head” accommodates components of varying heights, from the smallest to the largest, ensuring optimal
speed and accuracy.

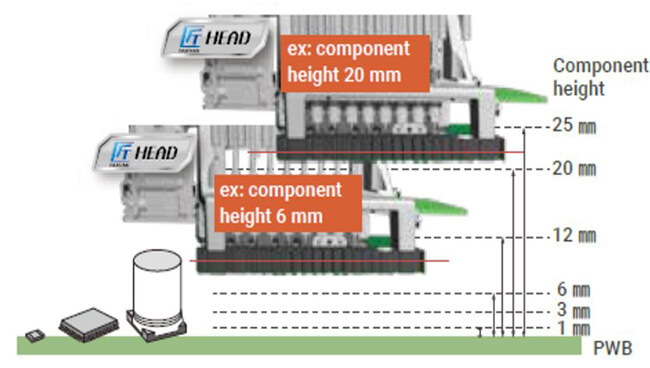

Component height can be selected from six levels: 1, 3, 6, 12, 20, and 25 mm.

“TAKUMI Head” which changes with the height of the sensor

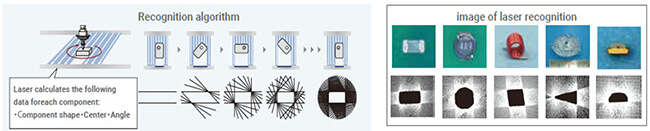

Realizes high-speed, high-precision recognition with JUKI’s proud laser-recognition technique

JUKI’s laser-recognition technology enables fast, accurate identification of various component shapes, including BGA, SOP, and QFP, ranging from as small as 03015 to sizes up to 50 mm square. This laser-recognition system ensures stable recognition and placement, unaffected by variations in electrode shape or surface gloss. Additionally, creating component data is simplified, allowing for quick integration of new components.

Flexibility

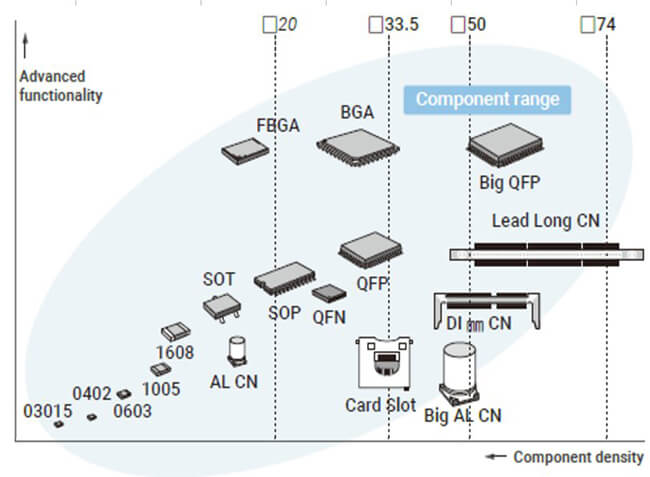

Wide component range

Supports components from sizes as small as 03015 up to 74 mm square or 50 mm x 150 mm, with placement heights accommodating components up to 25 mm.

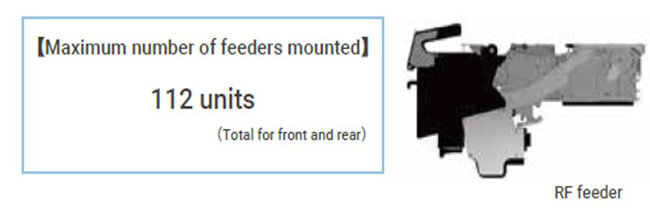

Up to 112 feeder mounting for flexible and efficient production

The compact, lightweight, and slim design of the RF feeder supports up to 112 feeder units (front and rear combined),
enabling high-efficiency production.
This setup is ideal for multi-product, small-lot production with minimized setup times.
* When RF feeder (RF08AS) is used.

Quality

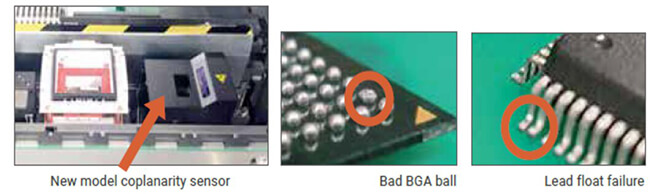

NEW Advanced high-precision coplanarity new model

Detects lead floating and BGA ball deformation to prevent the placement of defective components. High-precision coplanarity checks enhance product reliability.

Specification

Fast Smart Modular Mounter JUKI RS-2
Board size	Minimum		50 mm ×50 mm
	Maximum	1 buffer	800 mm ×370 mm
		3 buffers	410 mm×370mm
Allowable board weight			Max. 3 kg
Substrate thickness			0.3~6.0mm
Component height			25 mm
Component size			03015-50 mm x 150 mm (1 x 3 segment recognition) x □74mm (2 x 2 segment recognition)
Placement speed	Optimum		50,000CPH
	IPC9850		32,000CPH
Placement accuracy			±35μm(Cpk≧1)
Feeder inputs			112 products*1
Power supply			Three-phase AC200V (Standard Type)/Three-phase 200 VAC to 415V (When the Type with Transformer is Selected)
Apparent power			2.2 kVA
Operating air pressure			0.5±0.05 MPa
Air consumption			When using a vacuum generator: 200L/min (standard), when using a vacuum pump: 50L/min (optional)
Machine dimensions(WxDxH)*2			1,500 mm ×1,686 mm ×1,450 mm
Mass(approximately)			1,630kg
