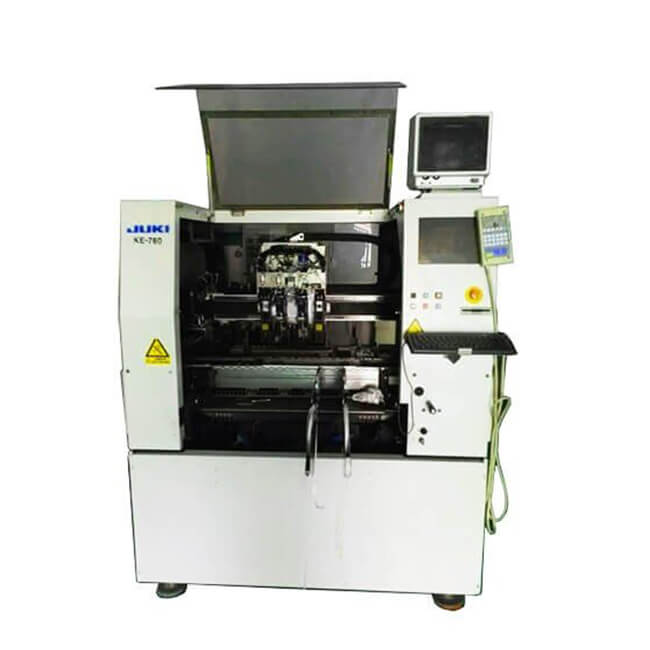

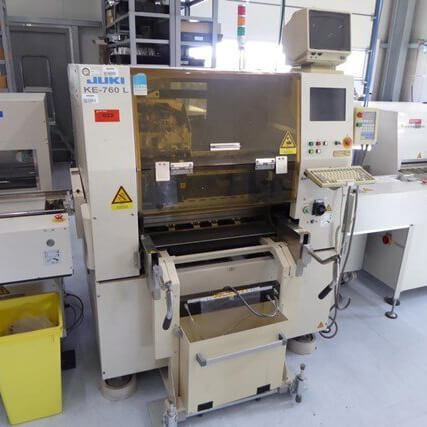

JUKI KE-760 Pick and place machine
JUKI KE-760 placement machine is a medium-sized economy multi-functional placement machine,the use of XY independent drive placement head,2 Placement head,laser alignment,the accuracy of 0.03MM.
Placement head: 2 placement head (at the same time,the adsorption attached alternately)
Mounting accuracy: ± 0.03mm / chip (laser recognition)
± 0.09mm / QFP (laser recognition)
Patch speed: 0.32 seconds / CHIP,1.8 / sec QFP)
Substrate size: Min 330 × 250 mm
Component range: 0402 ~ 50 × 50㎜
Power: Single-phase AC220V,50 / 60Hz,2.5KVA
Air pressure and air consumption: 0.5Mpa ± 10%,150N1 / min
Overall dimensions: 1400 × 1300 × 1551㎜
Weight: 1150㎏
|
Placement head: |
2 placement heads (simultaneous adsorption alternate mounting) |
|
Placement accuracy: |
±0.03mm/chip (with laser identification) ±0.09mm/QFP (at laser recognition) |
|
SMD speed: |
0.32 sec/CHIP, 1.8/sec QFP) |
|
Substrate size: |
Min 330×250㎜ |
|
Range of components: |
0402~50×50㎜ |
|
Power supply: |
Single phase AC220V, 50/60Hz, 2.5KVA |
|
Air pressure and air consumption: |
0.5Mpa±10%,150N1/min |
|
Dimensions: |
1400×1300×1551㎜ |
|
Weight: |
1150㎏ |
SMT Pick and place machine Brand
Efficient Technology Co.,Ltd provide a full SMT assembly line solutions, including SMT Production Line, SMT Pick and place machine, SMT Stencil Printer, SMT Inspection equipment, SMT Weling equipment, SMT Intelligent Storage System, SMT Automatic Insertion Machine, SMT Peripheral Equipment, SMT Feeders, SMT Nozzles, SMT Spare Parts etc any kind SMT machines you may need, please contact us for more information: WeChat: +8613714564591 Email: sales@efsmt.com
FAQ:
Q: What we can do for you?
A: One-stop SMT Solution Supplier; Reliable SMT Partner.
Q.What is your MOQ requirement for the machine?
A. 1 set moq requirement for the machine.
Q. This is the first i use this kind of machine, is it easy to operate?
A: Provide free training，There are also English manuals or instructional videos to show you how to use the machine.
Q: If the machine has any problem after we receive it, how can we do?
A: Our engineer will help to solve it first, and free parts send to you in machine warranty period.
Q: Do you provide any warranty for the machine?
A: Yes 1 year warranty will be provided for the machine.
Q: What is your payment terms?
A: 30% deposit in advance and 70% balance before shipment.
