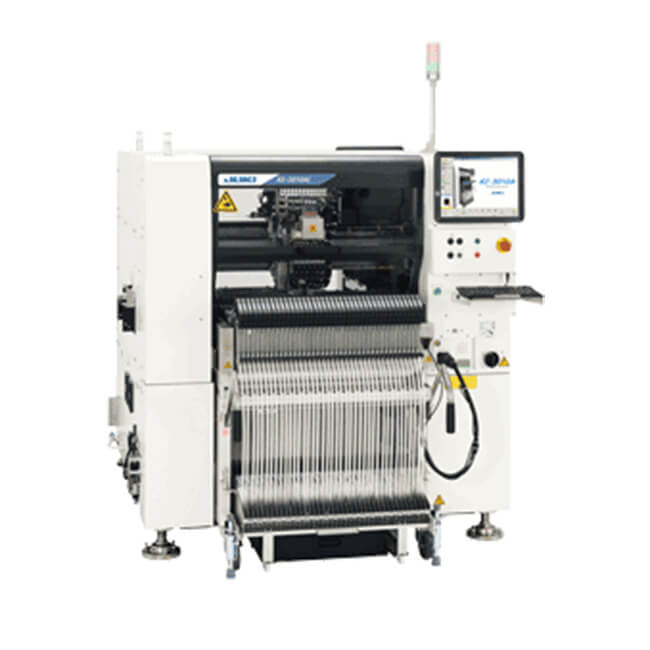

JUKI KE-3020VA Pick and place machine
Chip: 20,900CPH chip (Laser centering / Optimum)
17,100CPH (Laser centering / IPC9850)
IC: 9,470CPH (Vision centering / MNVC option)
From 0402(01005) to 74mm square components or 50×150mm
KE-3020VA
One multi-nozzle laser head (6 nozzles) plus
one IC head with CDS sensor (1 nozzle)
The use of electronic double tape feeders enables mounting of a maximum of 160 component types.
MNVC is standard
High-speed, on-the-fly vision centering
(When using both high-resolution camera and MNVC)
High speed feeding of tray components (Option)
Longer sized PWB in X axis(option)
PoP placement(option)
| ard size | M size (330×250mm) | yes | |
| L size (410×360mm) | yes | ||
| L-Wide size (510×360mm) *1 | yes | ||
| XL size (610×560mm) | yes | ||
| Applicability to long PWB (L size)*2 | 800×360mm | ||
| Applicability to long PWB (L-Wide size)*2 | 1,010×360mm | ||
| Applicability to long PWB (XL size)*2 | 1,210×560mm | ||
| Component height | 12mm | yes | |
| 20mm | yes | ||
| 25mm(XL size) | yes | ||
| Component size | Laser recognition | 0402(01005) ~ 33.5mm×33.5mm | |
| Vision recognition | Standard camera | 3mm ~ 74mm×74mm or 50×150mm | |
| High-resolution camera | 1.0×0.5mm*3 ~ 48mm×48mm or 24×72mm | ||
| Placement speed | Chip | Optimum | 20,900CPH |
| IPC9850 | 17,100CPH | ||
| IC *4 |
 9,470CPH*5
|
||
| Placement accuracy | Laser recognition | ±0.05 mm (±3σ) | |
| Vision recognition | ±0.03mm(MNVC ±0.04mm) | ||
| Feeder inputs | Max.160 in case of 8mm tape | ||
| (on a Electric double tape feeder)*6 | |||
*2 Applicability to long PWB is optional.
*3 KE-3020VA ： When using high-resolution camera. (option)
*4 Effective tact : The IC placement speed indicates an estimated value obtained when the machine places 36 QFP (100 pins or more) or BGA components (256 balls or more) on a M size board. (CPH=number of components placed for one hour)
*5 Estimated value when using MNVC and picking up components simultaneous with all nozzles.
.MNVC is standard in the KE-3020VA.
*6 When using Electric double tape feeder EF08HD.
* PWB size XL will be KE-3020V.
