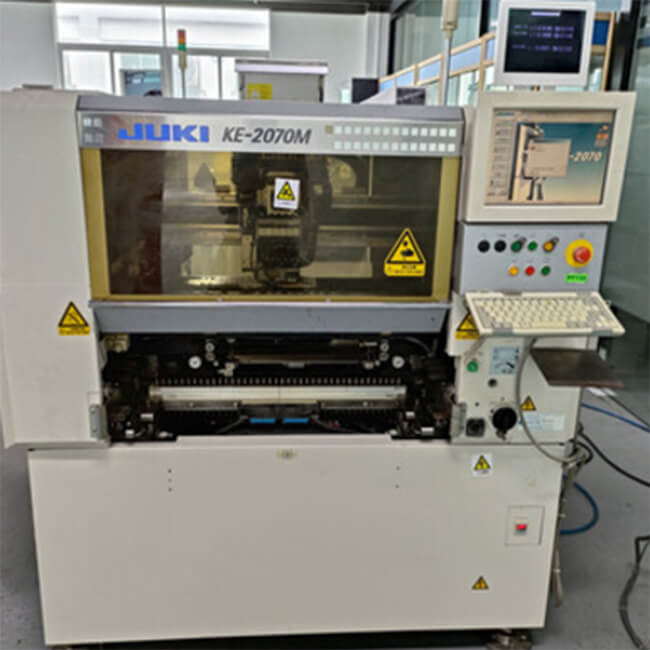

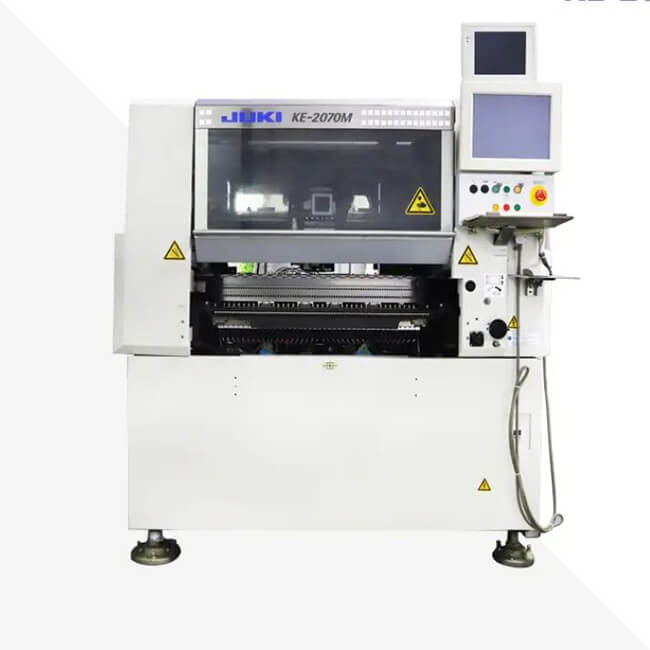

JUKI KE-2070M Pick and place machine

Placement Speed : 23,300 CPH
Applicable PCB :330*250mm
Applicable Part : 0402(01005) ~ □33.5mm
Accuracy: ±0.05mm（Cpk≧1）

BASIC INFO

JUKI KE-2070M Pick and place machine

With the addition of the optional MNVC, the component range can be increased even more for greater flexibility.

Chip
23,300CPH（laser centering/Optimum）（0.155Sec./chip）
18,300CPH（laser centering/IPC 9850）
IC
4,600CPH (vision centering with optional MNVC)
One multi-nozzle laser head (6 nozzles)
From 0402 (01005) to 33.5mm square components
Vision centering system (optional, featuring bottom, side, and back lighting, all ball recognition)

※1 Actual throughput may vary.
※2 Please download brochure for details.

Board size	M size (330×250mm)		○
	L size (410×360mm)		○
	L-Wide size(510×360mm) (option)		○
	E size (510×460mm)*1		○
Component size	Laser recognition		0402 (01005) ～□33.5mm
	Vision recognition	Standard camera	□3mm*2 ～□33.5mm
		High-resolution camera (option)	1.0×0.5mm*3 ～□20mm
Placement speed	Chip	Optimum	0.155Sec./chip(23,300CPH)
		IPC9850	18,300CPH
	IC*4		4,600CPH*5
Placement accuracy	Laser recognition		±0.05mm（Cpk≧1）
	Vision recognition		±0.04mm
Feeder inputs			Max. 80 on 8mm T/F*6

*1 Please ask for details on E size board.
*2 When using MNVC. (option)
*3 When using both high-resolution camera and MNVC. (option)
*4 Effective tact: The IC placement speed indicates an estimated value obtained when the machine places 36 QFP (100 pins or more) or BGA components (256 balls or more) on a M size board.
(CPH=number of components placed for one hour)
*5 Estimated value when using MNVC (option) and picking up components simultaneous with all nozzles.

*6 Including matrix tray changer, max 110.
