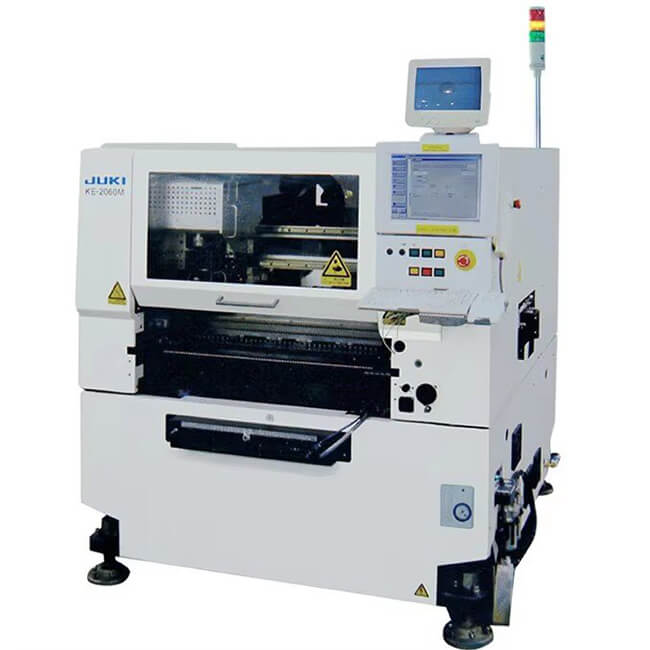

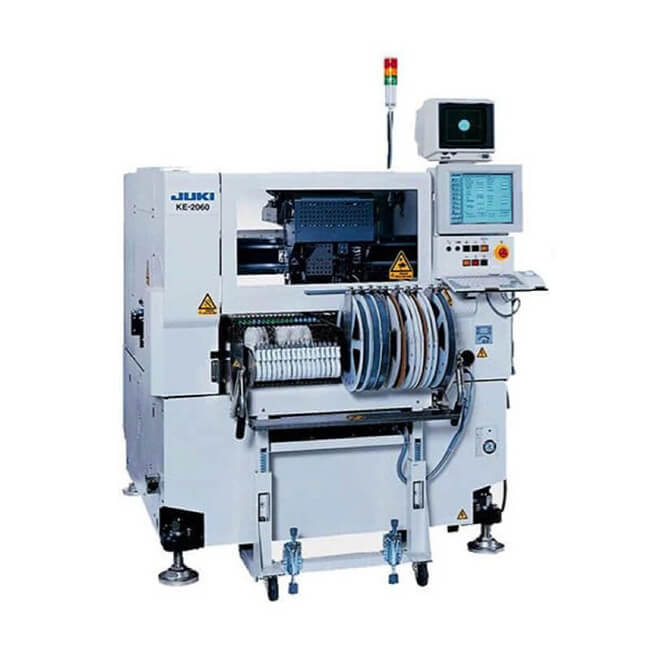

JUKI KE-2060M Pick and place machine

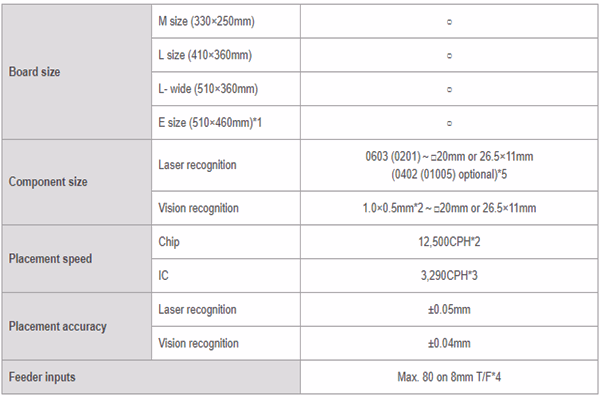

Board size M size (330×250mm)
L size (410×360mm)
L- wide (510×360mm)
E size (510×460mm)*1
Component size Laser recognition 0603 (0201)mm20mm or 26.5×11mm
(0402 (01005) optional)*5
Vision recognition 1.0×0.5mm*2mm20mm or 26.5×11mm
Placement speed Chip 12,500CPH*2
IC 3,290CPH*3
Placement accuracy Laser recognition ±0.05mm
Vision recognition ±0.04mm
feeder inputs Max. 80 on 8mm T/F*4
*1 Production arrangement starts only after receipt of P/O for E size board.
*2 Effective tact: The chip placement speed indicates an estimated value obtained when the machine places 400 1005-chips all over an M size board.
?CPH?number of components placed for one hour
*3 Estimated value when using MNVC and picking up components simultaneous with all nozzles.
*4 In addition to matrix tray changer, max 110.
*5 Please ask for details on 0402(01005) placement.
SMT Pick and place machine Brand
Efficient Technology Co.,Ltd provide a full SMT assembly line solutions, including SMT Production Line, SMT Pick and place machine, SMT Stencil Printer, SMT Inspection equipment, SMT Weling equipment, SMT Intelligent Storage System, SMT Automatic Insertion Machine, SMT Peripheral Equipment, SMT Feeders, SMT Nozzles, SMT Spare Parts etc any kind SMT machines you may need, please contact us for more information: WeChat: +8613714564591 Email: sales@efsmt.com
FAQ:
Q: What we can do for you?
A: One-stop SMT Solution Supplier; Reliable SMT Partner.
Q.What is your MOQ requirement for the machine?
A. 1 set moq requirement for the machine.
Q. This is the first i use this kind of machine, is it easy to operate?
A: Provide free training，There are also English manuals or instructional videos to show you how to use the machine.
Q: If the machine has any problem after we receive it, how can we do?
A: Our engineer will help to solve it first, and free parts send to you in machine warranty period.
Q: Do you provide any warranty for the machine?
A: Yes 1 year warranty will be provided for the machine.
Q: What is your payment terms?
A: 30% deposit in advance and 70% balance before shipment.
