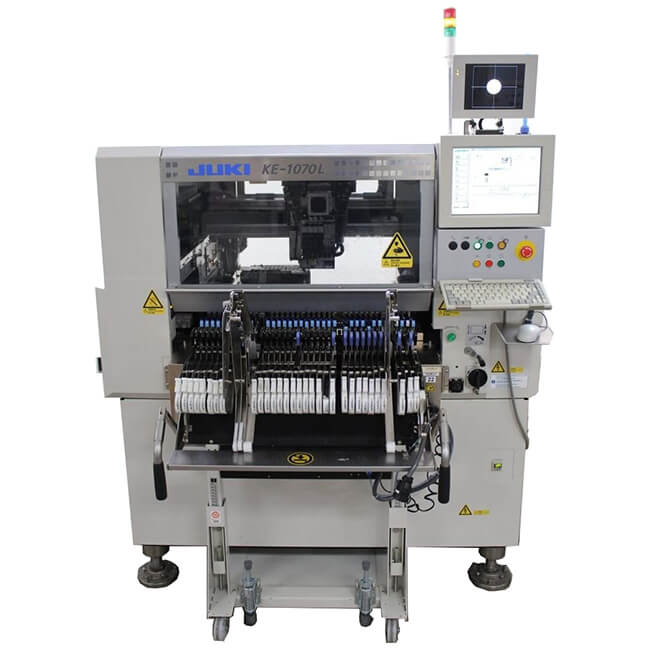

JUKI KE-1070 Pick and place machine
Introducing the KE-1070, the latest machine in the best-selling JUKI KE series family, featuring high end
performance at an affordable price.
Placement speed: 13,500CPH(IPC9850)
One multi-nozzle laser head (4 nozzles)
From 0603 (0201) to 33.5mm square components
Placement accuracy: ±0.05mm (Cpk≧1)
Change language between Japanese/English or English/Chinese.
High Precision/High Productivity
The new LNC60 laser sensor is equipped with 4 nozzles for on-the-fly simultaneous centering.
High speed placement of up to 13,500 CPH (IPC9850) with a placement accuracy of ±0.05mm (Cpk≧1).
Wide Component Range
The LNC60 laser centering unit supports components from 0603 (0201) to 33.5mm square components.

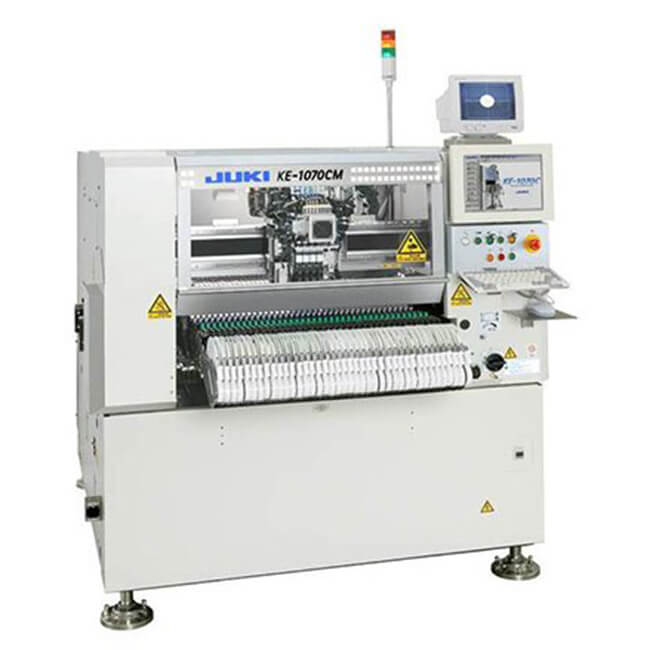

Two models are available for a variety of circuit board sizes. Medium size (M) for 330mm x 250mm and Large size (L) for 410mm x 360mm.
|
PWB dimensions(LxW) |
Min.50×30 ～ Max.410×360mm |
|
|
Dispensing tact time |
±0.15mm |
|
|
Syringe type |
30 cc |
|
|
Preset dispensing angle |
0°～359°(by 1°increment) |
|
|
Machine dimensions （W×D×H※1） |
1,500×1,393×1,440mm |
|
|
Mass (approximately) |
1400kg |
|
|
Machine Dimensions |
Width |
1,500 mm |
|
|
Depth |
1,393 mm |
|
|
Hight |
1,440 mm |
SMT Pick and place machine Brand
Efficient Technology Co.,Ltd provide a full SMT assembly line solutions, including SMT Production Line, SMT Pick and place machine, SMT Stencil Printer, SMT Inspection equipment, SMT Weling equipment, SMT Intelligent Storage System, SMT Automatic Insertion Machine, SMT Peripheral Equipment, SMT Feeders, SMT Nozzles, SMT Spare Parts etc any kind SMT machines you may need, please contact us for more information: WeChat: +8613714564591 Email: sales@efsmt.com
FAQ:
Q: What we can do for you?
A: One-stop SMT Solution Supplier; Reliable SMT Partner.
Q.What is your MOQ requirement for the machine?
A. 1 set moq requirement for the machine.
Q. This is the first i use this kind of machine, is it easy to operate?
A: Provide free training，There are also English manuals or instructional videos to show you how to use the machine.
Q: If the machine has any problem after we receive it, how can we do?
A: Our engineer will help to solve it first, and free parts send to you in machine warranty period.
Q: Do you provide any warranty for the machine?
A: Yes 1 year warranty will be provided for the machine.
Q: What is your payment terms?
A: 30% deposit in advance and 70% balance before shipment.
