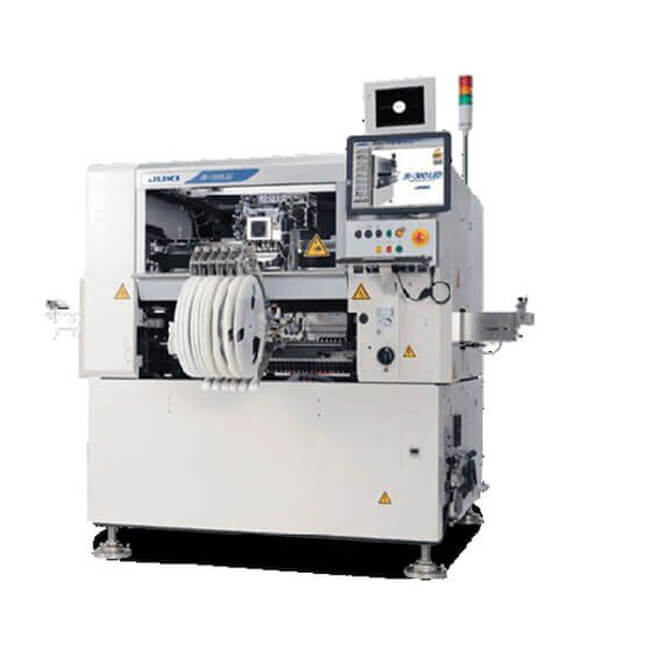

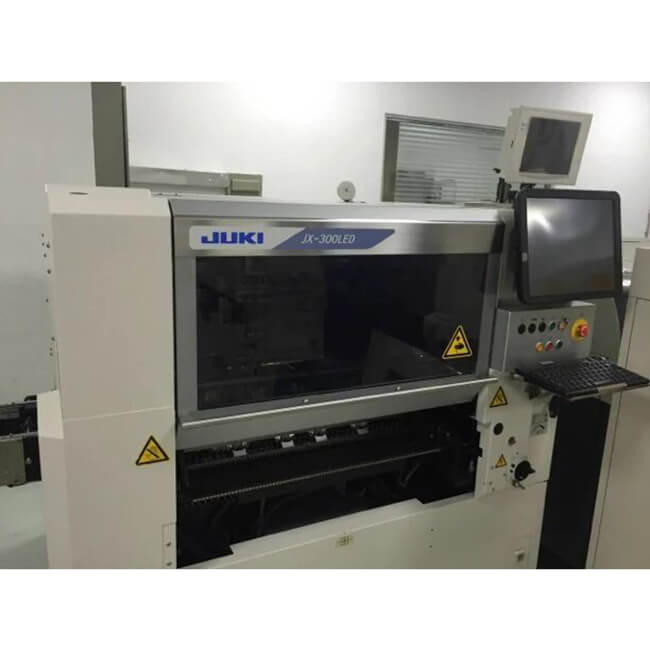

JUKI JX-300LED Pick and place machine

The new JX-300LED model can not only produce the most suitable LED substrates, but also fully capable of producing LED power substrates and other consumer electronics products. The actual placement efficiency of the new JX-300LED model has increased by 10% on the basis of the KE2070 model, and the actual production capacity has reached more than 18,000CPH.

Extended specification substrate (1500×360mm)

Mounting component height: 6mm / 12mm

Mount component size

Laser recognition: 0.6x0.3mm (English 0201) ~ 33.5mm

Mounting speed: Best condition: 0.155 seconds/chip (23,300CPH)

Mounting accuracy: Laser recognition: ±0.05mm (±3σ)

Types of mounted components: mechanical feeder: 40 types (8MM)

Device size (W*D*H): Standard size: 1,920×1,393×1,440mm

Device weight: about 1,420Kg

Specification

Operating system: WINDOWS XP (Chinese, Japanese, English language switching)

Substrate size: standard specification substrate (1200×360mm)

characteristic

1. JX-300LED is suitable for the production of 1200 ~ 1500mm LED lighting substrates and LENS LCD screens

JX-300LED's unique 2-time and 3-time splint function realizes the production of ≦1500MM LED substrates, and realizes high-precision placement by fully automatic visual alignment of the substrates through 3 sets of MARK points.

2. JUKI's unique laser patch monitoring function

JUKI's unique placement head is equipped with a laser sensor to detect the presence or absence of components on the placement head in real time. For LED devices that are adhesive to the surface of the component, the blowing time can be set to prevent the LED component from being brought back. Through the real-time monitoring function of the laser, it is possible to prevent components from falling before placement and sticky LED components from being brought back.

3. JUKI's unique laser positioning, identifying LENS pins

JUKI's unique LNC60 laser three-dimensional scanning imaging technology, through the 360-degree rotation of the LENS pin to take a side photo, draw the component appearance according to the component image edge and rotation angle, and calculate the component center, angle and size to complete the direction of the LENS Judgment, and finally complete the X, Y, and angle recognition of LENS for high-precision LENS placement.

LED placement machine JX-300LED, most suitable for LED lighting machines or LED placement machines for medium and large LCD backlight production！
