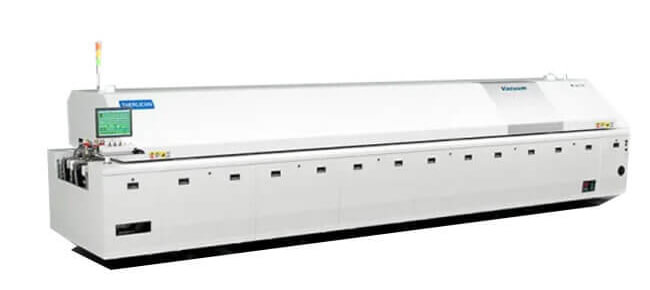

JT TRV-800D-N Dual-track Nitrogen Vacuum reflow soldering machine
TRV Series Vacuum Assisted Reflow Oven
● Independent temperature control zone, suitable for different temperature profile;
● Solve the problem of bubble & void, <1% void area can be achieved;
● High efficient vacuum pump unit equipped for fast down time;
● 3- section conveyor : Heating zone ,vacuum unit and cooling zone , adjustable individually;
● High production throughput, cycle time 40-60sec, average;
● Equipped with high efficient flux collection system.
● High efficiency、No voids、 Low maintenance cost: Equipped with vacuum unit to solve the problem of void, bubble, etc. Voids area can reach < 1% by the vacuum pressure 10-5mbar.
● High accurate vacuum level and temperature profile: Temperature of each zone can be adjusted individually. Pressure under 10mbar still can meet TI≤90S, TP≤240°C. Infrared heating equipped in vacuum unit to meet high throughput settings.
Description
| MODEL | TRV-800D-N |
| GENERAL | |
| Outside Dimension(L*W*H) | 5520 x 1660x 1530mm |
| Standard Color | Computer Grey |
| Weight | Approx. 2900KG |
| Number Of Heating Zones | Up 8(1IR) / Bottom 7 |
| Length Of Heating Zones | 3110mm（With Vacuum Area） |
| Number Of Cooling Zones | Up 3 / Bottom 3 (Cool Air Conversion) |
| Exhaust Volume | 10 m³ / min x 2 (Exhausts) |
| Electric Supply Required | 3 phase, 380V 50/60Hz (Optional: 3 phase, 220V 50/60Hz) |
| Electric Power Required | 67KW |
| Power For Warm Up | 34KW |
| Power Consumption | 11KW |
| Vacuum Level | 5 mbar～10 mbar |
| Warming Time | About Approx. 25 minute |
| Temp. Setting Range | Room Temp. — 300℃ |
| Temperature Control Method | PID Close Loop Control + SSR Driving |
| Temperature Control Precision | ± 1.0℃ |
| Temperature Deviation on PCB | ± 1.5℃ (by JT Board Test Standard) |
| Heating Element | Especial Heating elements For Long Life |
| Commutated Element | Aluminium Alloy Plate |
| Data Storage | Process Data and Status Storage |
| Abnormal Alarm | Abnormal Temperature (Extra-high / Extra-low Temp.) |
| Board Dropped Alarm | Tower Light: Yellow–Warming; Green-Normal; Red-Abnormal |
| Conveyor | chain conveyor |
| Rail Structure | Subsection Integrated Type |
| Rang Width Of PCB | Single Lane min70mm-max430mm；Dual Lane min70mm-max250mm |
| Rang Length Of PCB | min150mm-max300mm |
| chiller | Standard |
| Flux Collection System | Standard |
| N2 Control Device | Standard |
| Oxygen Analyser | Standard |
| The above contents are subject to change without further notice! | |
Efficient Technology Co.,Ltd provide a full SMT assembly line solutions, including SMT Production Line, SMT Pick and place machine, SMT Stencil Printer, SMT Inspection equipment, SMT Weling equipment, SMT Intelligent Storage System, SMT Automatic Insertion Machine, SMT Peripheral Equipment, SMT Feeders, SMT Nozzles, SMT Spare Parts etc any kind SMT machines you may need, please contact us for more information: WeChat: +8613714564591 Email: sales@efsmt.com
FAQ:
Q: What we can do for you?
A: One-stop SMT Solution Supplier; Reliable SMT Partner.
Q.What is your MOQ requirement for the machine?
A. 1 set moq requirement for the machine.
Q. This is the first i use this kind of machine, is it easy to operate?
A: Provide free training，There are also English manuals or instructional videos to show you how to use the machine.
Q: If the machine has any problem after we receive it, how can we do?
A: Our engineer will help to solve it first, and free parts send to you in machine warranty period.
Q: Do you provide any warranty for the machine?
A: Yes 1 year warranty will be provided for the machine.
Q: What is your payment terms?
A: 30% deposit in advance and 70% balance before shipment.
