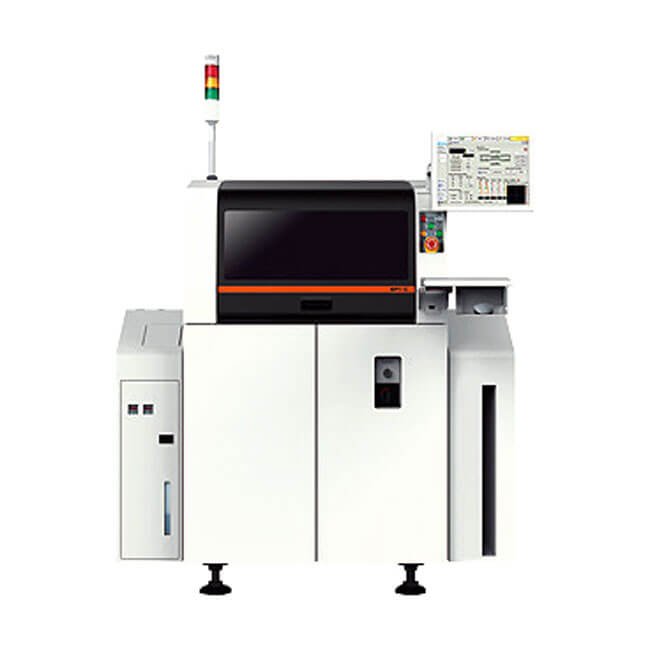

Hanwha SP1-C Solder paste printer
Provides the highest productivity as well as 6 SIGMA level high quality printing.
6 sigma level of high quality printing
Corrects print offset automatically by feeding back defective SPI printing
Features
High Quality
6 sigma level of high quality printing
Applies new alignment mechanism for high quality printing.
High Productivity
Rapid Job Change
Allows rapid job change by automatically moving to the printing position for print setting when loading the stencil mask.
High Reliability
Various Options Available
Connects an external Air Conditioner to maintain a constant print temperature for a stable print environment.
Easy Operation
Increased User Convenience
Operational convenience is maximized by monitoring a variety of information about production.
Specifications
|
|
SP1-C |
|
|
Alignment Repeatability |
±12.5um @μ+6σ |
|
|
Wet Print |
±25um @μ+6σ |
|
|
Cycle Time |
5sec (Excl. Printing Time) |
|
|
Board Handling |
|
|
|
Max.Size (mm) |
L330 × W250 (Single Lane) |
|
|
L330 × W250 |
||
|
(Dual Lane/Option) |
||
|
Min.Size (mm) |
L50 × W50 |
|
|
Thickness (mm) |
0.4 ~ 4.0 |
|
|
Max.Weight (kg) |
1.5 |
|
|
Stencil |
|
|
|
Min.Size (mm) |
L550 × W650 |
|
|
Max.Size (mm) |
L650 × W550 |
|
|
Frame Thickness (mm) |
30 ~ 40 |
|
|
Matching |
Center Standard |
|
|
Vision |
|
|
|
Function |
Fiducial Recognition, Inspection |
|
|
FOV (mm) |
10.6 × 8.0 |
|
|
Fiducial Types |
●, ▲, ■, ◆, ＋ |
|
|
Fiducial Size (mm) |
0.5 ~ 4.0 |
|
|
Operator Interface |
|
|
|
Hard Ware |
LCD Monitor, Mouse & |
|
|
Keyboard |
||
|
Software Operating System |
Window XP Embedded |
|
|
Utility |
|
|
|
Power Supply |
100/110/120/200/220/240V |
|
|
(±5%)Single Phase |
||
|
Max.4.5kVA, 50/60Hz |
||
|
Power Supply |
Pressure 4.5~7.0kgf/cm2 |
|
|
Max. 700Nℓ/min |
||
|
Mass |
Approx. 1,250kg |
|
|
External Dimension (mm) |
L1,326 × D1,200 × H1,904 |
|
|
Option List |
|
|
|
SPI |
Auto Cleaning |
Standard |
|
Auto Printing |
Standard |
|
|
Offset Control |
||
|
Dual Lane Conveyor(Bypass) |
× |
|
|
Dual Lane Conveyor(Conveyor In Common Use at the Front and Rear) |
Option |
|
|
Air Conditioner (External) |
Option |
|
|
Fan Blower (Internal) |
Option |
|
|
ASS (Auto Solder Supply) |
Option |
|
|
Stage Auto Leveling |
Standard |
|
|
PCB Temperature Sensor |
Option |
|
|
Gerber Pad |
Option |
|
|
Default PCB Program |
Standard |
|
|
2D Barcode Tracability |
Option |
|
