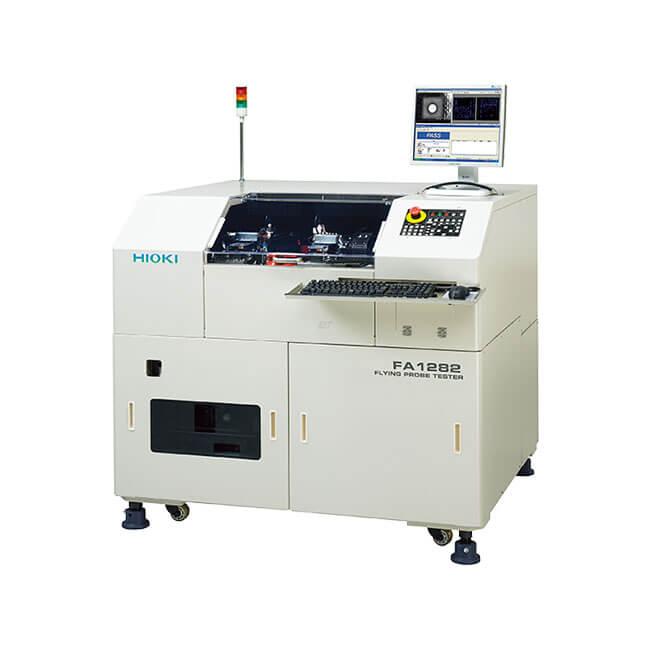

HIOKI FA1282 Flying Probe Tester
Robust Support for Testing Boards with Embedded Passive and Active Devices through High-Speed, Double-Sided Testing
Key FeaturesHigh-precision probing
Max. 100 steps/s ultra-high speed inspection
Reliable clamping of thin boards
High-speed insulation testing of up to 100GR
Minute resistance measurement of IVHs and through-holes
Measure with high applied currents of up to 200 mA, which is close to current ratings for fine patterns
Large testing area of 394 mm × 324 mm
Inline function (optional feature)
LSI reliability testing (optional feature)
Specifications Overview
|
Number of arms |
4 (2 each, top and bottom) |
|
Number of test steps |
300,000 (max.) |
|
Measurement ranges |
Resistance: 40.00 μΩ to 40.0 MΩ |
|
Capacitance: 10.00 fF to 40.00 mF |
|
|
Inductance: 10.00 μH to 100.0 mH |
|
|
Diode VZ measurement: 0.000 V to 25.00 V |
|
|
Insulation resistance:200.0 Ω to 100.0 GΩ |
|
|
Capacitance Insulation resistance:200.0 Ω to 10.00 MΩ |
|
|
High voltage resistance :200.0 Ω to 25.00 GΩ |
|
|
High voltage short resistance:400.0 mΩ to 400.0 kΩ |
|
|
Leak current measurement:100.0 nA to 10.00 mA |
|
|
Zener diode VZ measurement: 0.000 V to 25.00 V |
|
|
Digital transistor measurement:0.000 V to 25.00 V |
|
|
Photo couplers measurement:0.000 V to 25.00 V |
|
|
Continuity test:400 mΩ to 1.000 kΩ |
|
|
Open test:4.000 Ω to 4.000 MΩ |
|
|
Short test:400.0 mΩ to 40.00 kΩ |
|
|
DC voltage measurement: 40.00 mV to 25.00 V |
|
|
Discharge function, Visual test, Visual alignment measurement |
|
|
Measurement time |
100 steps/ sec (X-Y movements of 0.15 mm, 4-arm simultaneous probing, capacitance measurement) |
|
Probing precision |
400 mm (15.75 in) W × 324 mm (12.76 in) D |
|
Fixed board dimensions |
Thickness : 0.1 mm to 2.5 mm (0.10 in) |
|
Outer dimensions : 50 mm (1.97 in) W × 50 mm (1.97 in) D to 400 mm (15.75 in) W × 330 mm (12.99 in) D |
|
|
Power supply |
200 V AC ±10% (single-phase), 50/60 Hz, 5 kVA |
|
220 V, 230 V, 240 V AC : factory options |
|
|
Dimensions and mass |
1,350 mm (53.15 in) W × 1,206 mm (47.48 in) H × 1,240 mm (48.82 in) D, 1,100 kg (38.800.7 oz) |
