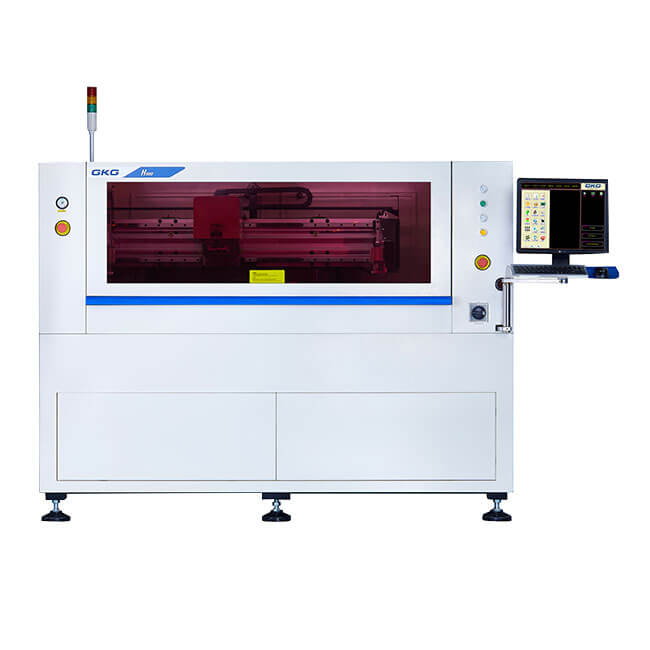

GKG HR900 Solder paste printer

Product characteristics

1. High precision LED roll lamp with special platform, equipped with Wenckell vacuum design;

 2. Programmable suspension horizontal (X-direction) adaptive printing structure to ensure pressure stability;

 3. Innovative handling mode, meet the uninterrupted and unlimited printing of roll lamp belt, with special solid equipment, can provide special whole line equipment and process plan;

 4. Equipped with 1.3 megapixel digital camera, 10*8mm FOV field of view, perfectly compatible with all types/coatings MARK.

Maximum substrate size:300*120mm

Minimum substrate size:50*50mm

Steel mesh frame dimensions:720*300mm~750*750mm
