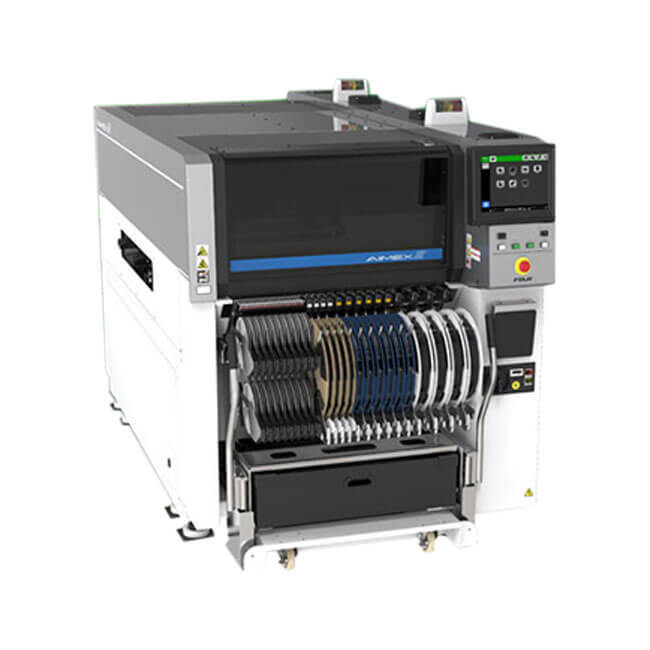

FUJI ALMEX III Pick and place machine
The AIMEX III is designed for component flexibility, PCB flexibility and production flexibility.
Features
Production for Large Panels or Simultaneous Production of Two Models

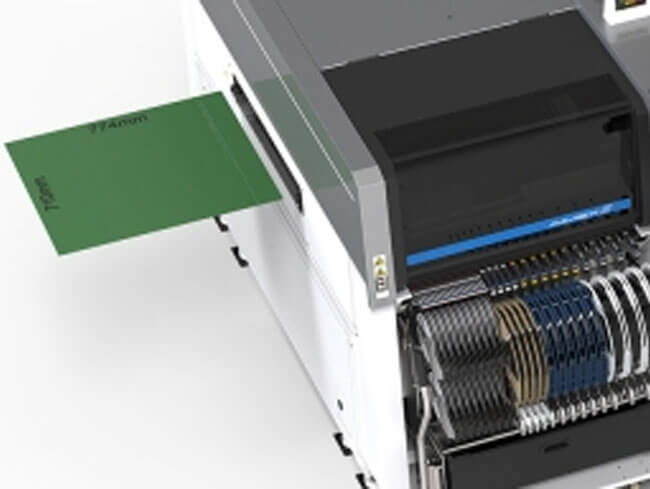

The AIMEX III can support large panels up to 774 (L) x 710 (W) mm in size.
Simultaneous production of two different products is possible using our dual conveyor configuration machine. The AIMEX III also enables various production methods and supports a wide range of panel sizes.
Supporting 0402 (01005") to 74 x 74 mm with one head

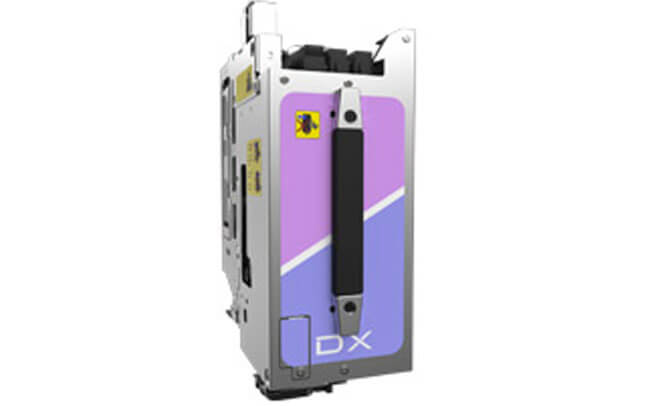

Our DX head exchanges the dedicated tool in one action depending on the part size, from small chips to large odd-form parts. Also, using wide range nozzles together provides further efficient placement.
DynaHead Dynamic Exchange

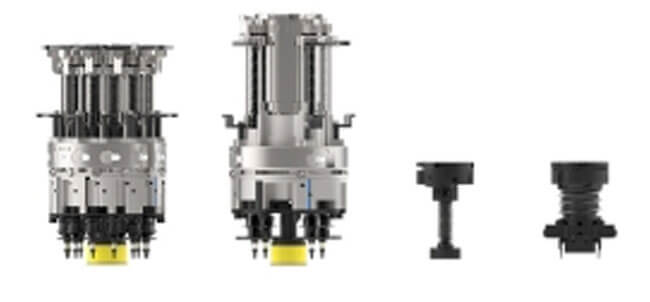

The AIMEX III offers dynamic exchange during production to the best tool for the job. Borderless production is made possible using the DynaHead to dynamically exchange between 12-nozzle, 4-nozzle and single nozzle tools.
Minimizing the changeover count

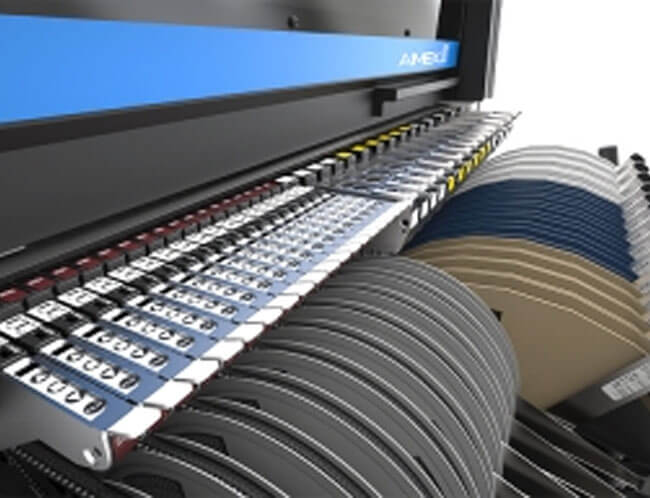

Changeover time can be reduced by performing MFU batch changeover and by the machine having up to 130 slots for feeders which makes it possible to load all of the required parts.
Ramping up production smoothly

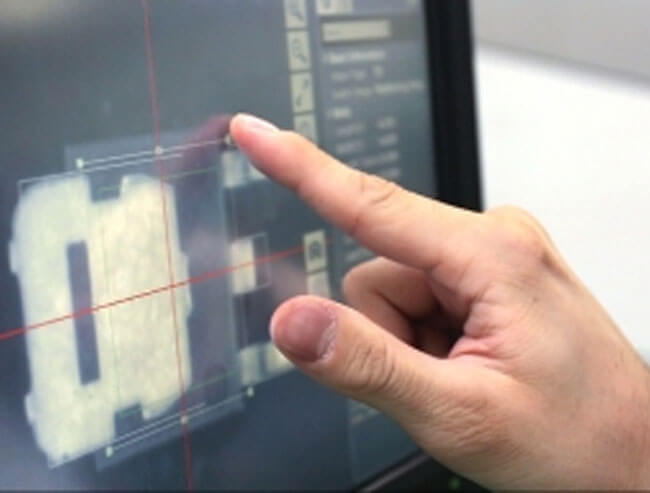

Automatic data creation and on-machine editing using a large touchscreen panel work to support ramping up new production and quick response to sudden changes to programs.
| Basic Specifications | |
| PCB size(LXW) | 48 x 48 mm to 774 x 610 mm (double conveyor)* |
| 48 x 48 mm to 774 x 710 mm (single conveyor) | |
| *Double conveyors can handle PCBs up to 330 (W) mm. PCBs larger than 330 (W) mm must be produced by changing the double conveyor to single lane production mode. | |
| Feeder capacity | Up to 130 (8 mm tape) |
| PCB load time | 2.9 sec |
| Placing accuracy | H24G: +/-0.025 mm (Standard mode) / +/-0.038 mm (Productivity priority mode, under development) (3sigma) cpk≥1.00 |
| (Fiducial mark based referencing) | H08M: +/-0.040 mm (3σ) cpk≥1.00 |
| OF: +/-0.050 mm (3σ) cpk≥1.00 | |
| H02F: +/-0.025 mm (3σ) cpk≥1.00 | |
| H01: +/-0.030 mm (3σ) cpk≥1.00 | |
| Machine dimensions | L: 1280mm, W: 2656mm, H: 1556mm |
