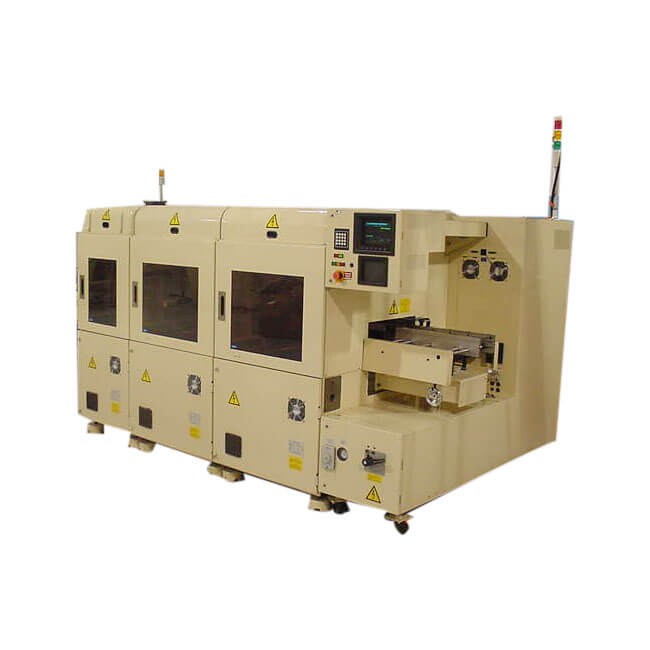

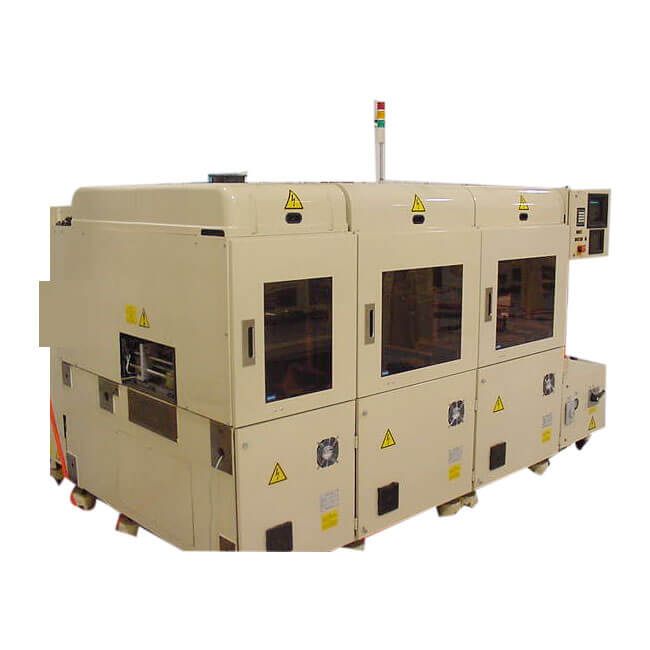

FUJI QP-242E Pick and place machine
PCB dimensions
Max: 457mm x 356mm
Min: 80mm x 50mm
Thickness: 0.5 to 4.0 mm
Component capacity Feeders:
Upto 21 types (8mm tape) with 600-series module
Upto 31 types (8mm tape) with 800-series module
Trays: Upto 50 types x 2(350 x 250 mm trays)
Placing Accuracy:
Chips: ±0.1 mm (3 s)
QFPs,PLCCs: ±0.04mm (3 s)
Flip Chips: ±0.03mm (3 s)
Placing rate
Chips: 1.2 to 2.5 sec./component
Flip chips: 3.5 to 5.0 sec./component
Packaging Types
Any Type, sticks or Trays confirming EIA and EIAJ standards.
Power:
3 phase 200 to 480 VAC ICM: 1.0 kVA. No of modules x 0.5kVA
Machine dimensions
ICM: L: 530 mm W: 1700 mm H: 1547 mm
Module: L: 600 to 800 mm W : 1961 mm H: 1566 mm
Weight
ICM: 430 kg
600-series module: 1100 kg
800-series module: 1220 kg
SMT Pick and place machine Brand
Efficient Technology Co.,Ltd provide a full SMT assembly line solutions, including SMT Production Line, SMT Pick and place machine, SMT Stencil Printer, SMT Inspection equipment, SMT Weling equipment, SMT Intelligent Storage System, SMT Automatic Insertion Machine, SMT Peripheral Equipment, SMT Feeders, SMT Nozzles, SMT Spare Parts etc any kind SMT machines you may need, please contact us for more information: WeChat: +8613714564591 Email: sales@efsmt.com
FAQ:
Q: What we can do for you?
A: One-stop SMT Solution Supplier; Reliable SMT Partner.
Q.What is your MOQ requirement for the machine?
A. 1 set moq requirement for the machine.
Q. This is the first i use this kind of machine, is it easy to operate?
A: Provide free training，There are also English manuals or instructional videos to show you how to use the machine.
Q: If the machine has any problem after we receive it, how can we do?
A: Our engineer will help to solve it first, and free parts send to you in machine warranty period.
Q: Do you provide any warranty for the machine?
A: Yes 1 year warranty will be provided for the machine.
Q: What is your payment terms?
A: 30% deposit in advance and 70% balance before shipment.
