FAI1055 Offline First Article Inspection Equipment
PCB Size No limit
Detect Coverage Type Data type: wrong BOM usage, repeated positions, missing definition of XY coordinates, multiple definitions;
Circuit board: multiple pastes, missing parts, wrong parts, reverse, rollover, offset, rotation, etc.
Overview
FAI1055 Offline First Article Inspection

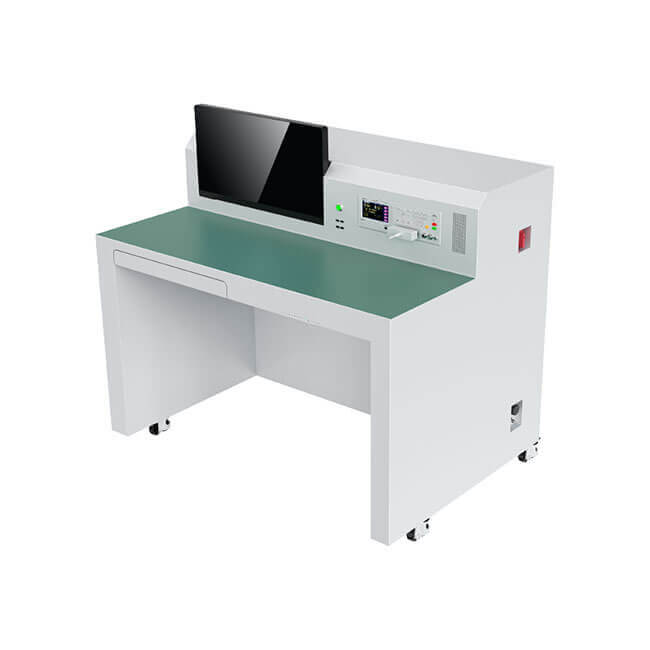

The FAI1055 is a smart and efficient SMT offline first article inspection machine designed for electronics factories. It addresses common challenges in SMT production line, such as time-consuming manual inspections, high labor costs, incomplete test coverage, and difficult traceability. This first article inspection machine improves inspection accuracy and reduces errors.
The frst article inspection system can inspect the first article of various types of boards, including solder paste boards (after solder paste printing and component placement), adhesive boards (with double-sided adhesive and component placement), and red glue boards (after red glue printing and component placement). It detects issues such as BOM errors, incorrect XY coordinates, repeated or missing definitions, and other data discrepancies.
The first article inspection equipment also identifies process-related issues, such as incorrect component placements, missing parts, reverse orientations, and wrong parts. Additionally, it checks the electrical performance of components like resistors, capacitors, and inductors, catching potential errors early in the production process.
With the SMT offline first article inspection machine, SMT production lines can experience faster inspections, higher accuracy, and better product quality, making it an essential tool for first article inspection in offline settings.
Key Features
BOM Compatibility
The FAI1055 SMT offline first article inspection machine supports various BOM formats. It analyzes and adjusts to different customer BOM lists for seamless compatibility.
Optimized Detection Path
The machine uses an advanced path algorithm. The software automatically optimizes the measurement path, making SMT first article inspection more efficient.
Automatic Detection Results
The system automatically receives data, determining if components are PASS or FAIL. The real-time display ensures no errors are missed during the SMT offline first article inspection.
ERP and MES Integration
The inspection results can connect with ERP or MES systems. Reports are uploaded in real-time, allowing easy monitoring and traceability.
Dual Picture Display
The machine displays both physical and numbered images simultaneously. This makes component comparison and viewing easier during SMT offline first article inspection equipment.
Automatic Silk Screen Detection
For components like ICs, diodes, and resistors, the machine uses visual technology to detect direction and polarity. It supports multi-point detection for repeated use.
Power Outage Protection
If an interruption occurs, like a power outage, the machine automatically saves progress and resumes from where it stopped, ensuring uninterrupted FAI intelligent first article inspection system .
LED and Diode Polarity Testing
The system can turn on LEDs and test diode polarity, ensuring correct polarity during the SMT offline first article inspection process.
Drawing-Aided Design
The machine can mark drawings with reference numbers, standard values, and specifications to simplify the inspection process.
User Rights Management
The system allows flexible user rights management, preventing unauthorized modifications during the first article inspection.
Specification
|
Model |
FAI1055 |
|
PCB Size |
No limit |
|
Accuracy |
0.05% |
|
Measurement Display Range |
R: 0.01m ohms ~ 99.9999M ohms |
|
L: 0.01nH ~ 9999.9H |
|
|
C: 0.00001pF ~ 9.9999F |
|
|
Detect Coverage Type |
Data type: wrong BOM usage, repeated positions, missing definition of XY coordinates, multiple definitions; |
|
Circuit board: multiple pastes, missing parts, wrong parts, reverse, rollover, offset, rotation, etc |
|
|
Test Frequency |
20Hz ~ 300KHz |
|
Dimensions |
1160*800*1100mm (W*D*H) |
|
Weight |
180KG |
