EGS ED100 In-line PCB Jet Printer Machine

Jet Frequency, Max : 1,800,000 DPH (Dot Per Hour) / 500Hz
Max. Acceleration : 3g
Max. Speed : 1.5m/s
Min. Dot Diameter : 150 μm

BASIC INFO

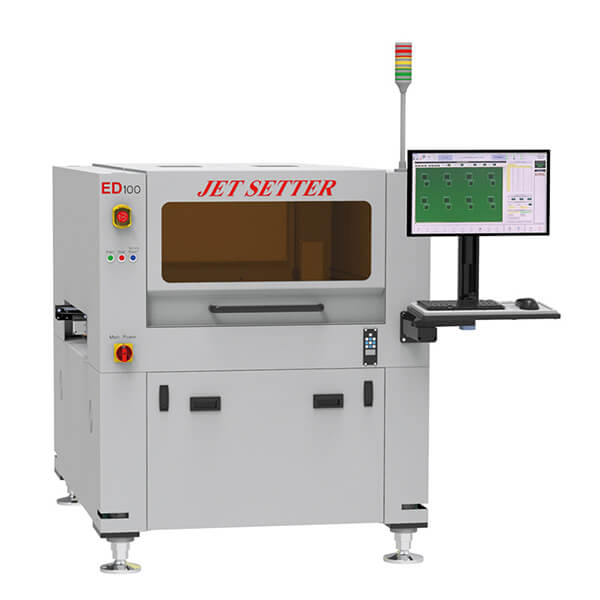

EGS ED100 In-line PCB Jet Printer Machine

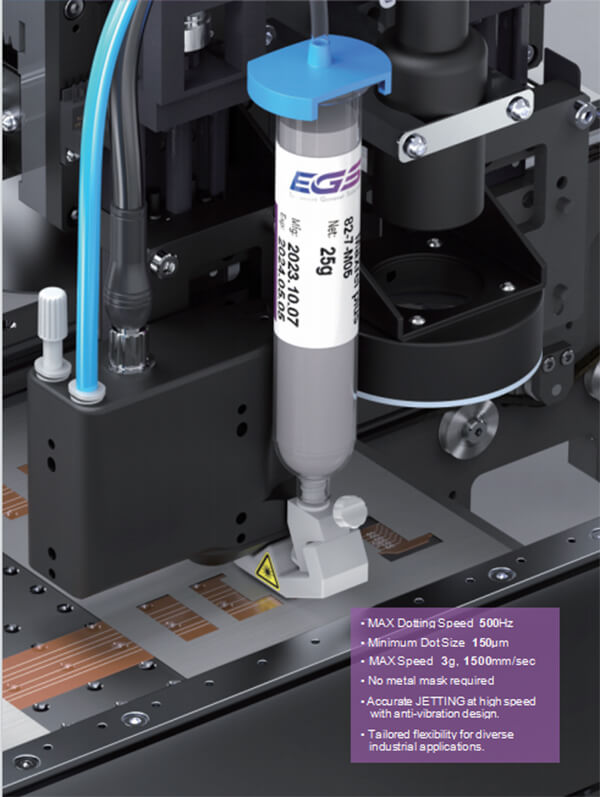

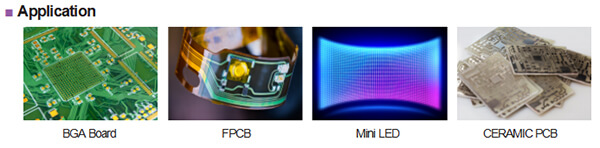

ED100, ED150 & ED200 are high-speed jet printers capable of producing 1.8 million dots per hour with a cpk of 1.33 or higher for high precision quality. They offer solder paste dotting without the need for a mask, unlike traditional screen printers, and can also be used for various types of dispensing such as underfill and coating. Additionally, their low center of gravity design minimizes vibration even at high speeds.

JET PRINTER Series

Machine Platform

ITEM	ED100
Jet Frequency, Max.	1,800,000 DPH (Dot Per Hour) / 500Hz / Solder paste standard
Gantry Type	X/Y Linear Motor
Servo	Advanced DSP Motion Control
Max. Acceleration	3g
Position Resolution	0.2 μm
Active Field of View	16.8 x 14.1 mm
Gantry Repeatability	±3 μm
Dimension (W x D x H, mm)	1,200 x1,550 x1,430
Weight	1,800 Kg
Height Measurement	Laser Analog Sensor
Voltage	3Phase AC220 ±10%, 50/60Hz
Power Requirement	4kW (Peak)
Power Consumption	3kVA
Air Pressure	0.55Mpa ~ 0.75Mpa
Ambient Temperature	+18℃ ~ 32℃, 30 ~ 80% RH

Board Handling

ITEM	ED 100
Board Transport Height (mm)	880 ~ 925
Board Transport Height (SMEMA)	930 ~ 975
Single Lane Board Size (Without Buffer) (L x W, mm)	410 x 585
Dual Lane Board Size (Without Buffer) (L x W, mm)	410 x 320
Single Lane Board Size (With Buffer) (L x W, mm)	330 x 580
Dual Lane Board Size (With Buffer) (L x W, mm)	330 x 320
2 Step Working Board Size, Max. (L x W, mm)	800 x 580
Board Weight, Max.	3kg / 5kg
Minimum Board Size (L x W, mm)	70 x 40
Board Thickness Range (mm)	0.4 ~ 6.0
Transport Direction	L → R, R → L, Bypass

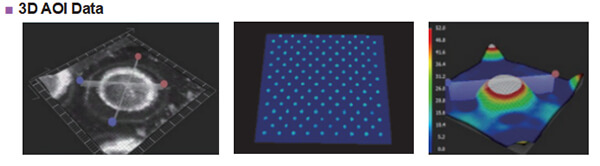

Capability

Media	Solder Paste	Other Adhesives
Applicator Type	Pneumatic Valve	Piezo Ejector
Min. Dot Diameter	150 μm
Syringe Size	5, 10, 30cc
Single Dot Repeatability / Accuracy	±25 μm /±35 μm
