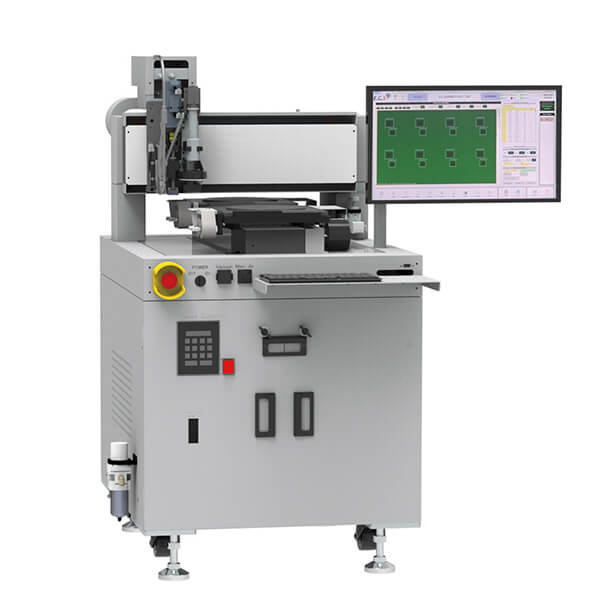

EGS ED300 Desktop Jet Printer and Dispenser Machine

Jet Frequency, Max : 1,800,000 DPH (Dot Per Hour) / 500Hz
Max. Acceleration : 0.5g
Max. Speed : 0.7m/s
Min. Dot Diameter : 150 μm

BASIC INFO

EGS ED300 Desktop Jet Printer and Dispenser Machine

ED300 & ED400 are equipment designed for quick sample production and testing in research labs and companies. They provide the same high precision and quality results as in-line equipment but operate at a lower speed. They include the same functions as in-line equipment. Additionally, their low center of gravity design minimizes vibration even at high speeds.

JET PRINTER Series

ITEM	ED300 / ED400
Jet Frequency, Max.	1,800,000 DPH (Dot Per Hour) / 500Hz / Solder paste standard
Gantry Type	Ball Screw, Servo Motor	Ball Screw, Servo Motor	X/Y Linear Motor
Servo	Advanced DSP Motion Control
Max. Speed	0.7 m/s
Position Resolution	10 μm	10 μm	0.2 μm
Active Field of View	16.8 x14.1 mm
Gantry Repeatability	±20 μm	±20 μm	±3 μm
Power Requirement	1.4kW (Peak)

Main Specification (Solder paste standard)

ITEM	ED300	ED400
Jet Frequency, Max.	1,800,000 DPH (Dot Per Hour) / 500Hz
Max. Acceleration	0.5g
Max. Speed	0.7m/s
Min. Dot Diameter	150 μm
Dimension	700 x 772 x 689 700 x 1,040 x 1,300	1,380 x 1,230 x 1,785
