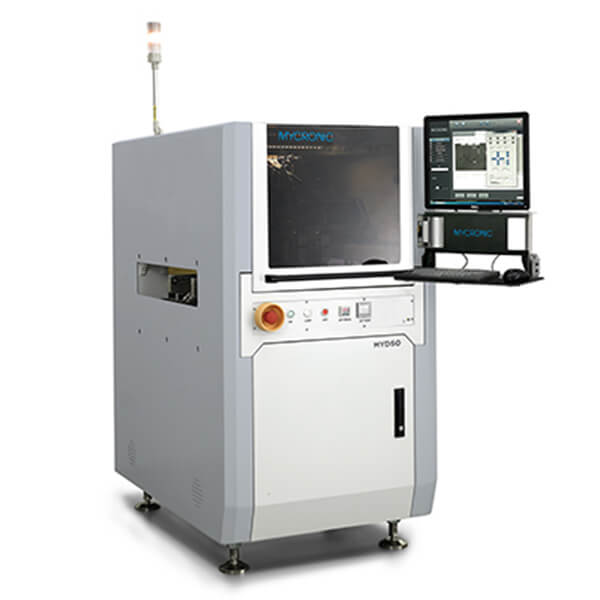

Axxon Mycronic Inline Precision Dispensing MYD50X
Axxon Mycronic's MYD50X precision dispenser features closed-loop linear motors, ensuring micron-level accuracy for high-recision applications. Key uses include hot melt, underfill, pin encapsulation, edge/corner bonding, surface mount adhesive (SMA), package-on-package (PoP), dam and fill, FPC component assembly, and reinforcement materials in consumer electronics.
FLEXIBLE
MYD series can handle different substrate sizes and compositions to meet specific process requirements.
Numerous applications can be achieved with optional features such as tilt and rotate, contact and non-contact heating and dual head configurations.
COST-EFFICIENT
Smaller machine dimensions, high-quality build and streamlined mechanical design allow the system to run for longer periods of time with less maintenance and lower downtimes. Our Piezo Jetting technology has been designed with a reduced number of wear parts, further reducing the cost of ownership making the MYD series a cost-effective dispensing solution.
IMPROVED PRODUCTIVITY
Precise temperature controls, on-the-fly fiducial search, robust vision algorithms, low motion Z axis and non-contact dispensing are some feautures to increase productivity.
KEY APPLICATIONS,CONSUMER ELECTRONICS
• Hot melt • Underfill • Pin encapsulation • Edge/corner bonding
• Surface mount package • Package on package • Dam and fill • SMA
• FPC component • Reinforcement materials
Specifications
|
Specification |
MYD50X |
|
Power supply |
AC 200~240V,1.8kW,8A,50/60Hz |
|
Air supply |
90psi(6bar) |
|
Dimension |
770x1300x1530mm(WxDxH) |
|
Weight |
1350kg |
|
Standard compliance |
CE |
|
Dispense area |
|
|
Max dispensing area (single lane/dual lane) |
350x500mm/350x218mm（WxD） |
|
Asynchronized dual valve (single lane/dual lane) |
290x430mm/290x183mm（WxD） |
|
Tilt & rotation (single lane/dual lane) |
270x410mm/270x173mm（WxD） |
Efficient Technology Co.,Ltd provide a full SMT assembly line solutions, including SMT Production Line, SMT Pick and place machine, SMT Stencil Printer, SMT Inspection equipment, SMT Weling equipment, SMT Intelligent Storage System, SMT Automatic Insertion Machine, SMT Peripheral Equipment, SMT Feeders, SMT Nozzles, SMT Spare Parts etc any kind SMT machines you may need, please contact us for more information: WeChat: +8613714564591 Email: sales@efsmt.com
FAQ:
Q: What we can do for you?
A: One-stop SMT Solution Supplier; Reliable SMT Partner.
Q.What is your MOQ requirement for the machine?
A. 1 set moq requirement for the machine.
Q. This is the first i use this kind of machine, is it easy to operate?
A: Provide free training，There are also English manuals or instructional videos to show you how to use the machine.
Q: If the machine has any problem after we receive it, how can we do?
A: Our engineer will help to solve it first, and free parts send to you in machine warranty period.
Q: Do you provide any warranty for the machine?
A: Yes 1 year warranty will be provided for the machine.
Q: What is your payment terms?
A: 30% deposit in advance and 70% balance before shipment.
