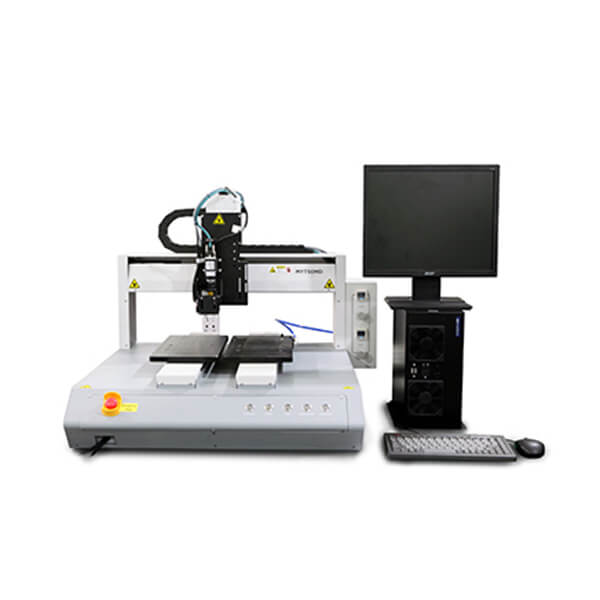

Axxon Mycronic MYT50 series tabletop dispensing machine

Repeatability: ± 10um
Max speed: X: 800 Y: 800 Z: 300 mm/s
Work load: 10 kg
Acceleration: 0.8 g

BASIC INFO

Axxon Mycronic MYT50 series tabletop dispensing machine

The Axxon Mycronic MYT50 tabletop dispensing is designed to tackle complex electronics assemblies. Possessing most of the capabilities of our inline dispensers in a tabletop format, ideal for NPI builds and batch level volume dispensing processes.

The MYT50 is a computer controller desktop robot that is highly capable and scalable to meet current and future requirements. From advanced prototyping to batch production, the MYT50 is designed with flexibility and configurability in mind.

Product Features

FULL RANGE DISPENSER ON A TABLETOP

The MYT50 comes with advanced capabilities, including automated calibration and visual inspection, barcode and fiducial scanning, and z-axis laser height compensation, bringing easy-to-use in-line functionality into a space saving tabletop format.

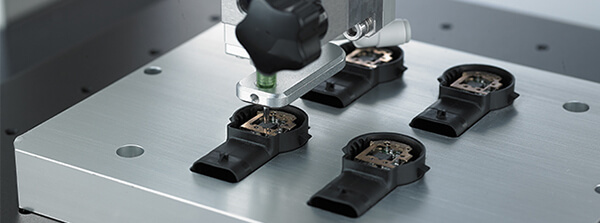

COMMON APPLICATION

• Fingerprint module dispensing

• FPC dispensing

• VCM dispensing

• Underfill

• Encapsulation and coating

• Edge bonding and sealing

• Corner bonding

• Solder paste dispensing

STANDARD SETUP

• Three-axis movement

• CCD for fiducials and programming

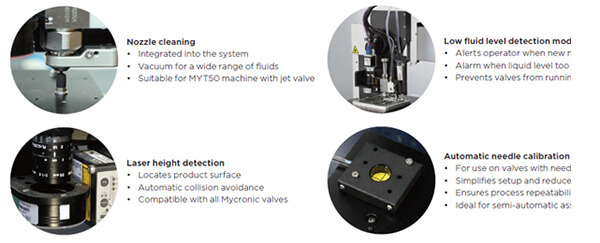

• Non-contact laser height sensor

• Intelligent valve control

• CCD barcode reader for program loading

• Nozzle cleaning

• IPC

CONFIGURABLE OPTIONS

• Low liquid level alarm

• Bent needle calibration

Specifications

Specification	MYT50S	MYT50M	MYT50L	MYT50MD	MYT50LD
Dimension (D x W x H)	606x741x638mm	706x841x638mm	806x941x638mm	706x841x638mm	806x941x638mm
Axis travel (X x Y x Z/XxY1xY2xZ)	300x300x100mm	400x400x100mm	500x500x100mm	400x400x400x100mm	500x500x500x100mm
Dispense area (X x Y x Z)	260x260x100mm	360x360x100mm	460x460x100mm	360x360x100mm	460x460x100mm
Machine weight	104 kg	126 kg	143 kg	136kg	114kg
Gantry type	H-Bridge			H-Bridge
System control	Windows 10 IPC,			Windows 10 IPC,
	Axxon/Mycronic software			Axxon/Mycronic software
Drive system	AC servo motor and precise ball screw			AC servo motor and precise ball screw
Work load	10 kg			10 kg
Z-axis work load	5 kg			5 kg
Max speed	X: 800 Y: 800 Z: 300 mm/s			X: 800 Y1: 800 Y2:800 Z: 300 mm/s
Acceleration	0.8 g			0.8 g
Repeatability	± 10um			± 10 um
Memory capacity	256G			256G
Power	AC 220V, 50/60 Hz, 650 W, 10 A			AC 220V, 50 Hz, 850 W, 10 A
Visual system	Industrial CCD			Industrial CCD
Camera Resolution	0.01 x 0.01 mm(adjustable)			0.01 x 0.01 mm(adjustable)
Field of View	14 x 14 mm(adjustable)			14 x 14 mm(adjustable)
Light source	LED			LED
Optional function	Low fluid level detection module,			Low fluid level detection module,
	automatic needle calibration module			automatic needle calibration module
Certification	CE			CE
