Axxon Mycronic MYT10S MYT10M MY10L table top dispensing machine

Repeatability: XYZ:±10um
Max speed: X: 800 Y: 800 Z: 300 mm/s
Work load: 10 kg
Acceleration: 0.8

BASIC INFO

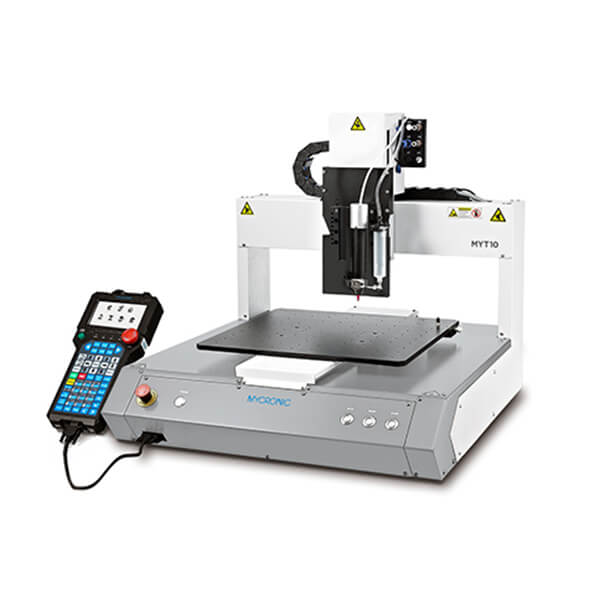

Axxon Mycronic MYT10S MYT10M MY10L table top dispensing machine

Axxon Mycronic MYT10 provides small-batch manufacturers small-batch manufacturers a selection of simple, robust tabletop dispensing robots with varying levels of capabilities for basic dispensing applications.

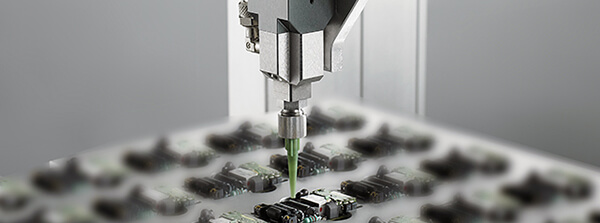

The semi-automated MYT10 series is well suited for testing and cost-efficient handling of standard electronic, industrial packages and heat-conductive dispensing. Automatic needle calibration and intelligent valve control help to ensure minimal setup and stoppage times for the most complex program routines.

Product Features

COMMON APPLICATIONS

• Adhesive dispensing

• Testing

• Industrial dispensing

• Potting

• Gasketing

STANDARD FEATURES

• Three-axis movement

• Vacuum cleaning

• Handheld pendant controller

OPTIONAL FEATURES

• Low fluid level sensor

• Automatic needle calibration

• Four direction electric tilt & pneumatic rotation

• Two direction electric tilt

• Synchronous dual-valve

• Z-axis heighten 50mm/100mm/200mm

• Spot UV

• Small area LED UV lamp (40x40mm)

• CE Certified table top enclosure with door (no sensor)

• CE Certified table top enclosure with light curtain

Specifications

Specification	MYT10S	MYT10M	MYT10L
Dimension (D x W x H)	606x741x638mm	706x841x638mm	806x941x638mm
Axis travel (X x Y x Z)	300x300x100mm	400x400x100mm	500x500x100mm
Dispense area (X x Y x Z)	300x300x100mm	400x400x100mm	500×500×100mm
Machine weight	103kg	125kg	142 kg
Gantry type	H-Bridge
System control	Independent motion controller
Drive system	AC servo motor and precise ball screw
Work load	10 kg
Z-axis work load	5 kg
Max speed	X: 800 Y: 800 Z: 300 mm/s
Acceleration	0.8
Repeatability	XYZ:±10um
Programming	Hand-held programme
Memory capacity	128 M
Power	AC 220 V, 600 W, 10 A， 50/60 Hz,
I/O	8 input / 8 output
Certification	CE
