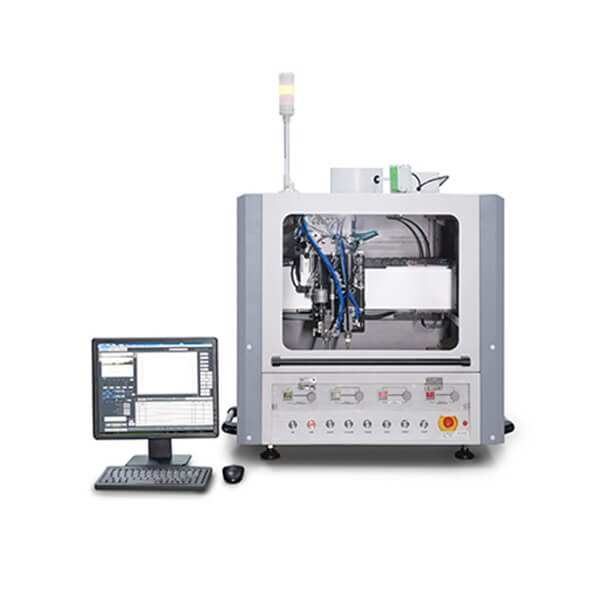

Axxon Mycronic MYC10 Benchtop coating machine
MYC10 is a flexible three axis robot with an optional 4-position rotation and tilt unit. This unit is ideal for virtually any benchtop of laboratory selective coating application. MYC10 features a robust motion platform using servo motors and precision ball screw drives.

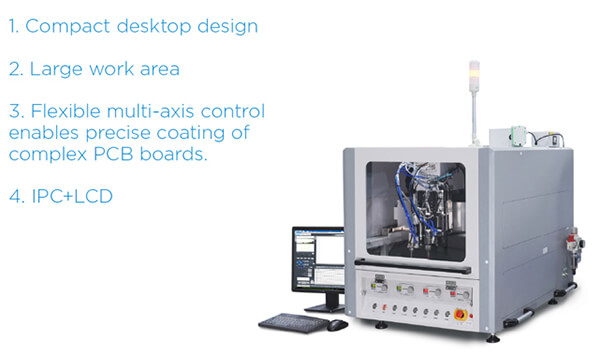

Product Features

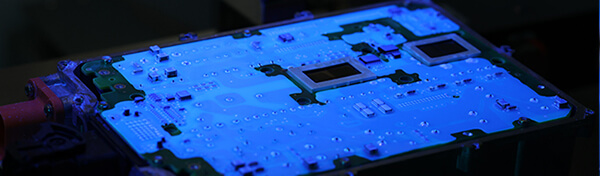

APPLICATIONS
• Consumer electronics • Industrial electronics • Household appliances
• Automotive control panels • Military electronics • Computer control panels
• Agricultural equipment control panels • Battery protection boards • LED lighting
• Outdoor led displays • Converter circuit boards • Security control panels
• Motor control boards • Power management devices
Specifications
|
MOTION SYSTEM |
|
|
X-/Y-AXIS |
Z-AXIS |
|
X, Y speed: max 500mm/s |
Z axis speed: max. 300mm/s |
|
X, Y acceleration: max. (0.5 g peak with s-curves) |
Z axis acceleration: max. (0.3 g peak with s-curves) |
|
X, Y repeatability: ± 25um@3σ |
Z axis repeatability: ± 25um@3σ |
|
X, Y drive mode: servo motor, ball screw |
Z axis drive mode: servo motor, ball screw |
|
FOUR DIRECTION TILTING MODULE |
|
|
Rotation angle: 0 degree, 90 degrees |
Tilt angle: 0 degree, ± 35 degrees(Manually adjust other degrees) |
|
Repeatability: ± 0.1 degree |
Repeatability: ± 0.1 degree |
|
Drive mode: cylinder |
Drive mode: cylinder |
|
DISPENSING AREA |
|
|
Single valve max: 320x400mm |
|
|
Asynchronous dual valve max: 280x400mm |
|
|
Asynchronous dual valve with four direction tilting module max: 250x350mm |
|
|
Asynchronous tri-valve max: 205 x 370 mm |
|
|
Max clearance PCB: top 90mm, bottom 90mm |
|
Efficient Technology Co.,Ltd provide a full SMT assembly line solutions, including SMT Production Line, SMT Pick and place machine, SMT Stencil Printer, SMT Inspection equipment, SMT Weling equipment, SMT Intelligent Storage System, SMT Automatic Insertion Machine, SMT Peripheral Equipment, SMT Feeders, SMT Nozzles, SMT Spare Parts etc any kind SMT machines you may need, please contact us for more information: WeChat: +8613714564591 Email: sales@efsmt.com
FAQ:
Q: What we can do for you?
A: One-stop SMT Solution Supplier; Reliable SMT Partner.
Q.What is your MOQ requirement for the machine?
A. 1 set moq requirement for the machine.
Q. This is the first i use this kind of machine, is it easy to operate?
A: Provide free training，There are also English manuals or instructional videos to show you how to use the machine.
Q: If the machine has any problem after we receive it, how can we do?
A: Our engineer will help to solve it first, and free parts send to you in machine warranty period.
Q: Do you provide any warranty for the machine?
A: Yes 1 year warranty will be provided for the machine.
Q: What is your payment terms?
A: 30% deposit in advance and 70% balance before shipment.
