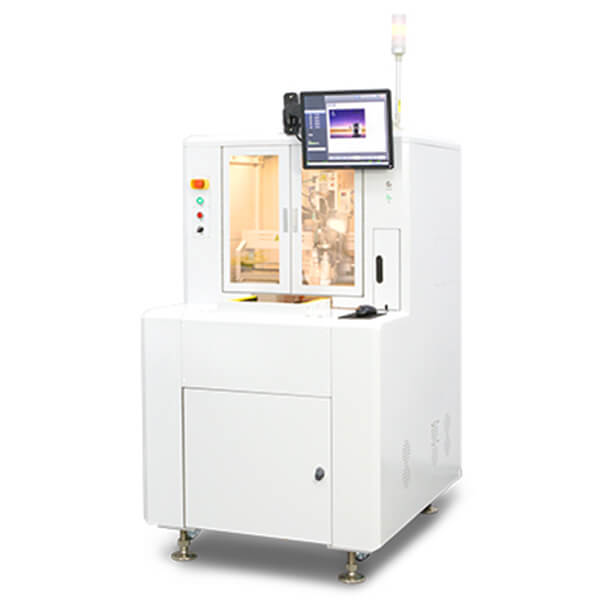

Axxon Mycronic AM300Q five axis synchronized dispensing system

Air supply: 90psi(5.5bar)
Dimension: 1,000x1,200x1,700(WxDxH)
Weight: 750kg
Power supply: AC 220V,16A,50/60Hz,3.6kW

BASIC INFO

Axxon Mycronic AM300Q five axis synchronized dispensing system

Axxon Mycronic's AM300Q is a single station, five axis synchronized dispensing system. Designed for contoured applications such as smart phone mid-frame dispensing, wearable product dispensing and other non-linear dispense applications.

Capable of following a 3D dispense path through combined five axis synchronized dispensing motion. This enables new product form factors, reducing material waste and reducing interface layers. The equipment is compatible with Axxon independently developed auger and jet valves (pneumatic and piezoelectric). Modular control and hardware systems provide flexibility that can resolve different product process requirements.

Product Features

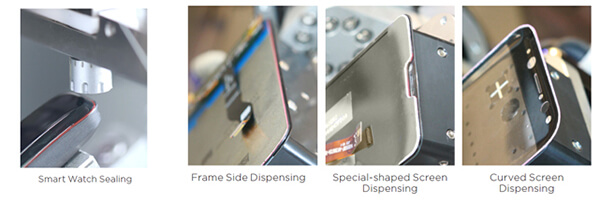

- Touch Panel Screen Dispensing

- Special-shaped Screen Dispensing

- Curved Screen Dispensing

- Phone Frame Dispensing

- Smart Wearable Products Dispensing

- Flexible Screen Dispensing

- Flexible Screen FPC Reinforcement

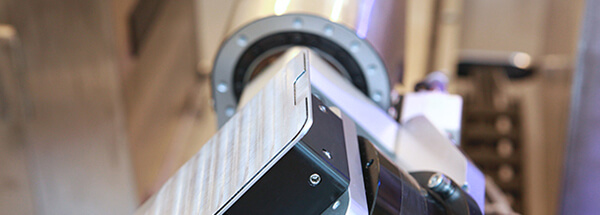

POWERFUL 3D DISPENSE ABILITY

With kinematic calibration technology, CCD auto captures the contour of round or curved shaped products. Software calculates the center position and calibrates all moving axis offsets. The 3D movement path transition is seamless and smooth, and the motion system is intelligent and precise.

INTELLIGENT AND EASY OPERATION

The five axis equipment obtains positioning template in real time via mark points and the product edge features.If there are offsets or misalignments, the system can compensate and alarm automatically if outside tolerance. Effectively preventing operation mistakes.

MODULAR DESIGN, FLEXIBLE OPTIONAL FUNCTIONS

Easy to operate and maintain, our modular design further enables the system to be configured with varying functions: QR code scanning, MES, UV spot cure, low fluid level sensor, automatic weighing and cleaning functions, etc.

- Fully automatic image recognition

- Five axis synchronized control technology

- Non-contact laser height measuring technology, automatic detection of product height, automatic adjustment of dispensing height

- Large offering of optional functions to meet different dispensing needs

Specifications

Specification	AM300Q
Power supply	AC 220V,16A,50/60Hz,3.6kW
Air supply	90psi(5.5bar)
Dimension	1,000x1,200x1,700mm(WxDxH)
Weight	750kg
Communication	SMEMA
Dispensing area	200x100mm(WxD）
