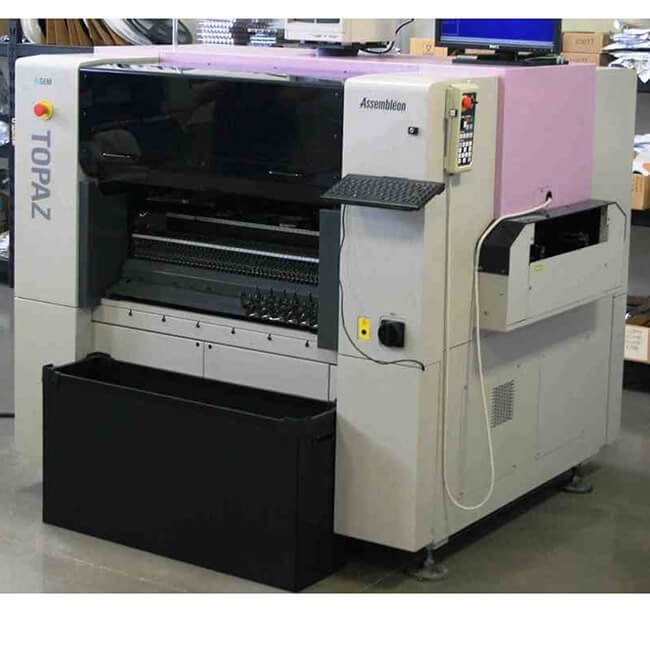

Assembleon Topaz XII Pick and place machine

Placement Speed : 20,000 CPH
Applicable PCB :460*440mm
Applicable Part :0402 ~ 45*100mm
Accuracy: ±50µ @ CpK1

BASIC INFO

Assembleon Topaz XII Pick and place machine

Optimal output per hour: 20k
IPC 9850 output per hour: 15.4k
Head design with SF: one single beam with 8 super fi ne heads
Head design with FNC: one single beam carrying 4 standard heads and 4 heads with nozzle exchange on-the-fly
Placing accuracy at sigma: 50 micron for chips, 5 micron for QFP’s
Component range: 01005 (0402) to 45 x 100mm (BGA, µBGA, CSP, Connector, Odds)
Maximum component height:11mm (0.4") (area CCD camera required)
Toolbit exchange: automatic nozzle exchange
Maximum board size (L x W): 460 x 440mm (18.1 x 1.")
Minimum board size (L x W): 50 x 50mm (2.0 x 2.0")
Large Board Application: 650 x 850mm (25.6 x .5")
Board thickness: 0.4 to 4.0mm (0.016 x 0.16")
Tape feeding positions (8mm):90 (CLi) or 160 (ITF)
Tray feeding:LCS tray feeder with 40 pallets, single ATS tray feeder with 20 pallets
Other feeder options:tape, stick, tray, tube, waffl e pack, etc.
Feeder trolleys:4 x 20 position (CLi) or 4 x 20 position (ITF)
Alignment principle:line array camera, area CCD camera, co-planarity check on-the-fly
Footprint (L x W): 1650 x 1408mm (5.4 x 4.5 ft)
Operating system: Windows NT™
