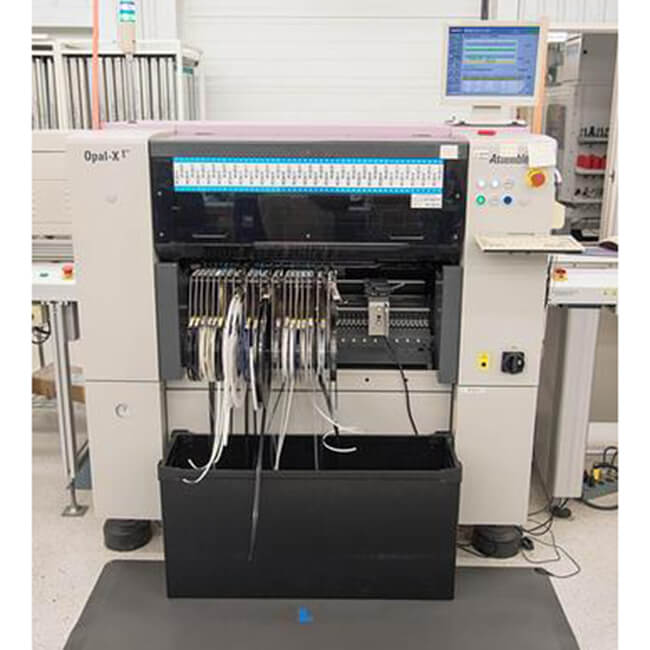

Assembleon Opal-XII Pick and place machine

Placement Speed : 12,500 CPH
Applicable PCB :460*390mm
Applicable Part :0201 ~ 45mm
Applicable Part :0201 ~ 45mm

BASIC INFO

Assembleon Opal-XII Pick and place machine

The Opal-XII is a High Speed flexible machine that can handle a wide range of components at speeds up to 12,500 SMDs per hour. The machine is built around a very rigid, vibration-free frame for improved accuracy and long-term stability and is perfectly suitable for round-the-clock production.

The Opal-XII features a high precision single placement beam carrying 4 Super Fine heads with exchangeable nozzles. The placement beam moves in X/Y and Z direction, while the board and component feeders are stationary. A flexible board transport system enables the Opal-XII to handle virtually any type of PCB, with or without tooling pins. Board conveyor width is automatically adjustable, allowing board dimensions up to 460 x440mm (17.9" x 17.2") to be handled.

The newly designed vision system with Line Array camera allows fast and accurate “on the-fly” alignment of a wide range of components from 0201 up to 45mm square PLCC,including 45mm square QFPs with lead pitches down to 0.5mm (20 mil). Dark background BGAs, µBGAs and CSPs with ball pitches down to 0.5mm (20 mil) and ball diameters down to 0.3mm (12 mil) can be recognized with the use of new developed illumination unit which allows measurement of ball positions and dimensions.
