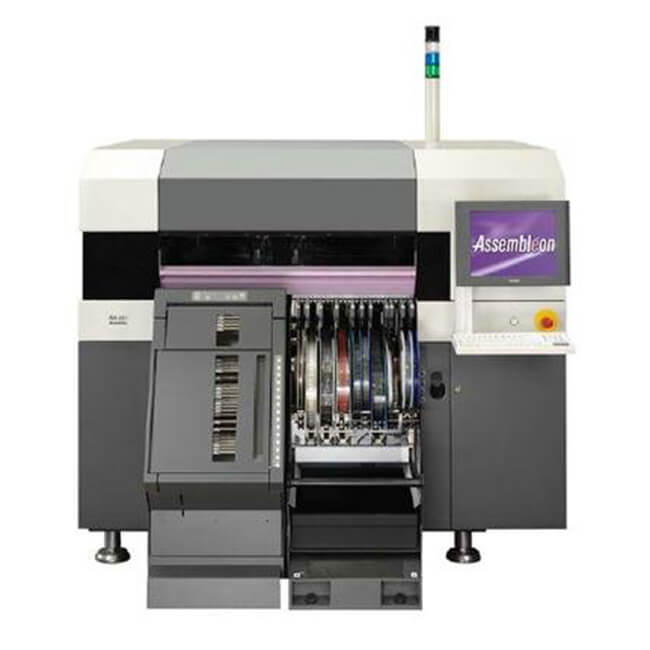

Assembleon AX201 Pick and place machine
For High Accuracy With a Wide Component Range
The Assembleon AX-201 offers a no-compromise combination of high placement accuracy, extremely wide component range and fast placement rate. This makes it ideally suitable for either stand-alone applications or as an end-of-line machine in combination with AX-501 or AX-301 machines.
- Scalable output
- High placement accuracy and reliability
- Handles a wide range of components
- Modularity ensures a seamless line fit
- Small footprint

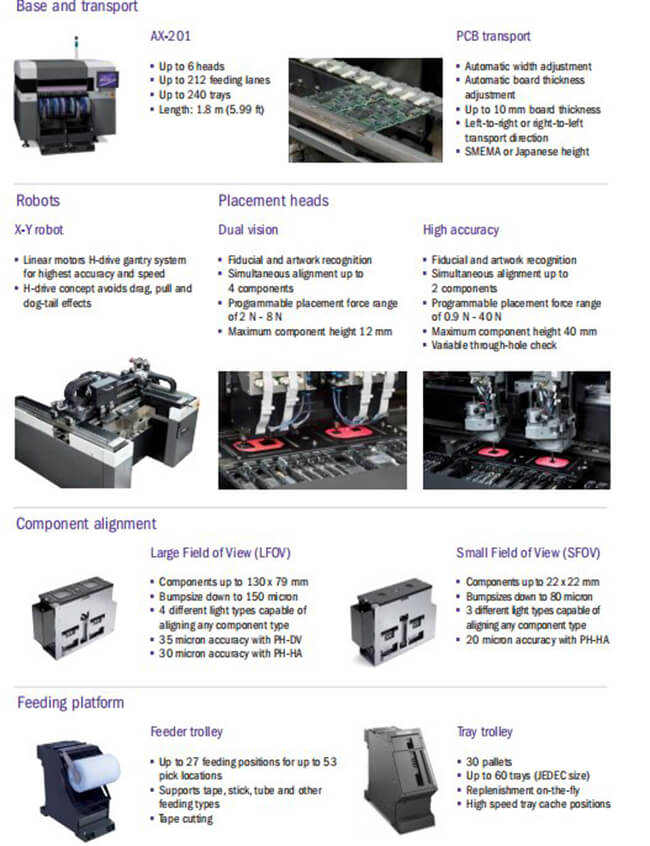

Feeding
With feeder trolleys, the AX-201 provides up to 212 twin tape pick positions or via 106 via single tape feeders. Each tray trolley allows 94 JEDEC sized trays or 188 different matrix trays providing a maximum possibility of 376 JEDEC sized trays.
Other feeding possibilities are:
- carrier tape tray
- stick
- tray stackers
- surftape
- waffle pack
- direct die
- direct die ultra
- GPAX
- radial tape
- stacked tube
- label
- device programming feeding (Data I/0)
Tray Feeders
- Manual tray, for a maximum of two trays (JEDEC size)
- Single stacked tray feeder, for single tray components (maximum of 30 JEDEC trays)
- Multiple tray feeder, for multiple tray components (maximum of 94 JEDEC sized trays or 188 matrix trays)
- Carrier tape tray, for feeding small strips of tape (8 to 200 mm wide, 10 mm deep)
Vision
The AX-201 utilizes one vision tool over two placement head types. A second offline vision tool is available to prepare components offline.
Large Field of View: For components up to 45 x 45 mm, odd components up to 130 mm long and bump sizes from 0.150 mm with programmable placement forces from 2 to 8 N or 0.9 to 40 N depending on the placement head type used.
Small Field of View: For components up to 22 x 22 mm and bump sizes from 0.08 mm with programmable placement forces starting at 0.9 N with the High Accuracy Placement Head.
| Maximum output per hour | 15k |
| IPC 9850 output per hour | 9.3k |
| Placement accuracy (3s) | 20 micron |
| Minimum component range | 0.4 x 0.2mm (01005) |
| Maximum component range | 130 x 79mm (5.12 x 3.11") |
| Maximum component height | 40mm (1.57") |
| Programmable placement force | 0.9 to 40N |
| Minimum board size (L x W) | |
| Standard: | 50 x 50mm (2 x 2") |
| Optional: | 50 x 25mm (2 x 1") |
| Maximum board size (L x W) | |
| Standard: | 515 x 457mm (20.28 x 18") |
| Optional: | 800 x 457mm (31.5 x 18") |
| Board thickness: | |
| Standard: | 0.3 to 6mm (0.01 to 0.24") |
| Optional: | 10mm (0.4") |
| Automatic tool bit exchange | nozzles, grippers |
| Tape feeding positions (8mm) | 212 twin tapes, 106 single tapes |
| Feeder options | tape, stick, strips, tray, bare die, GPAX, radial |
| Footprint (L x W) incl. front side feeder trolleys | 1852 x 1810mm (72.91 x 71.26") |
