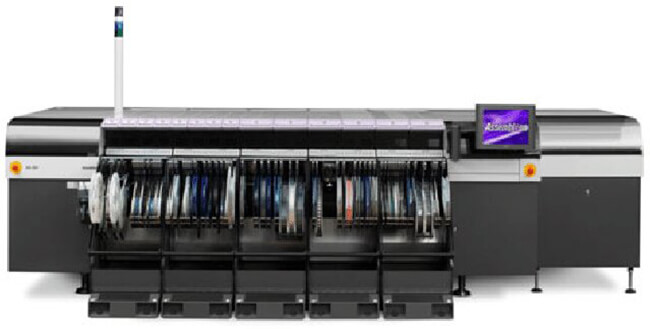

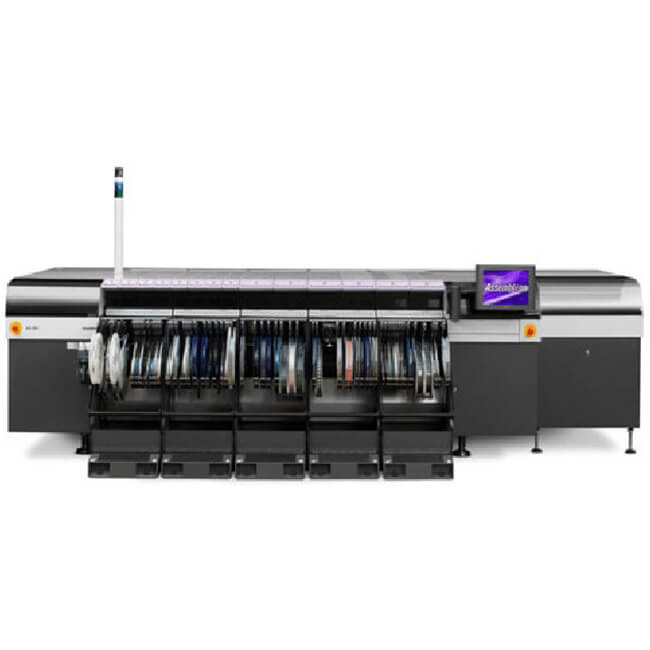

Assembleon AX501 Pick and place machine

- With software optimizing factory processes efficiently, the AX-501 and AX-301 can simply be blended within your factory. The truly modular single sided concept simplifies use and offers complete control and overview from one side only in any product mix or volume environment.

- With up to 156 (AX-301) or 260 (AX-501) tape feeding positions and up to 30 tray positions, the machines can be configured and re-configured in small steps from 30K to 77K (AX-301) or 121K (AX-501) components per hour to suit your exact capacity requirements without under or overspending. The true parallel placement robot delivers exceptionally high first pass yields and line performance in the single-digit defects per million range.

Placement performance benefits of true parallel placement

- All equipment capable of performing in a high speed line should be designed to place more than a trillion components every year, year after year. The AX is - by concept - optimizes control of each and every placement for the highest first-pass yield in the industry. It minimizes the costs associated with repair and possible scrapping. In addition, the high quality of your manufactured product assures end-user satisfaction, with minimal warranty recalls by the final consumer.

- The Assembleon A-Series allows single sided operation, multiple feeding positions, fast changeover, offline aids, and has software to create family or cluster setups. That makes it excellent equipment not just for high speed environments, but for any production environment of any mix.

- Conceptually smooth machine movement: low maintenance, reliable component handling and a continuous basis for accuracy, 24 hours a day, 7 days a week.

- Fully software controlled service-driven Pick and Place cycle: controlled pick, optimum acceleration and deceleration process and controlled placement.

- Constant component monitoring from pick to place with on-the-fly laser alignment guarantees the component is present and placed at the correct angle for the highest placement accuracy.

- Accurate placement force control: correct placement of components in paste, prevention of damage of the smallest (01005) components.

- Fewer than 10 defects per million placement performance (proven!).

- High resolution laser alignment for placement accuracy of 40 micron, even for very small components like 01005 types.

- Parallel robots can be added or removed in order to increase or decrease output without altering the line footprint.

AX-501 Pick and place machine:

- Base length : 3.7m

- Up to 260 feeding lanes

- Up to 47 trays

- Confi gurable up to 121 kcph (IPC 9850)

- Board sizes up to 515 x 390mm

- Optional board width 457mm

AX-301 Pick and place machine:

- Base length : 2.7m

- Up to 156 feeding lanes

- Up to 47 trays

- Confi gurable up to 77 kcph (IPC 9850)

- Board sizes up to 475 x 390mm

- Optional board width 457mm

Services & Software

Continuous refinement and updating of our customer support services ensure your lines stay competitive. We can help make your manufacturing processes more efficient. The services and software you choose are tailored to meet very specific factory automation requirements. This personalized applications support is available from our Competence Centers in Asia, America and Europe. This means the expertise behind the unique Installed Base Solutions and Assembléon Manufacturing Suite (AMS) software is always close to you.

Assembleon A-SERIES PICK & PLACE SERIES

The A-Series SMT Pick & Place Systems is a solution for medium and large batch production, also in high product mix environments. Three compatible machines (AX-201, AX-301 and AX-501) place complex and odd-form components with high accuracy. Line performance offers single-digit defects per million at placement rates of between 11k and 165k components per hour.

The A-Series uses nozzles and grippers that individually can pick and place a large range of component types, reducing unnecessary exchange times. Custom nozzles and grippers are also available on request. The A-Series machines automatically change the nozzles if required.

Model		Assembleon AX-501	Assembleon AX-301
Maximum output per hour:		165 k	99 k
		(121k IPC 9850(A))	(79k IPC 9850(A))
Placement quality *:		< 1 dpm	< 1 dpm
Placement accuracy CpK>1*		35 micron for chips	35 micron for chips
		25 micron for QFP	25 micron for QFP
Maximum component size(LxW):		45 x 45 mm	45 x 45 mm
Maximum component height (LxW)	Standard:	10.5 mm	10.5 mm
	Optional:	12 mm**	12 mm**
Programmable placement force:		1.5 to 8 N	1.5 to 8 N
Maximum board size(LxW)	Standard:	515 x390 mm	475 x390 mm
		(20.28 x 15.35″	(18.7 x 15.35″)
	Optional:	800×457 mm	800×457 mm
		(31.5 x 18″)	(31.5 x 18″)
Minimum board size(LxW)	Standard:	50 x 50 mm (2 x 2″)	50 x 50 mm (2 x 2″)
	Optional:	50 x 25 mm (2 x 1”)	50 x 25 mm (2 x 1”)
Board thickness	Standard:	0.3 to 6 mm	0.3 to 6 mm
	Optional:	10 mm	10 mm
Automatic toolbit exchange:		Nozzles	Nozzles
Maximum tape		260 twin tapes	156 twin tapes
feeding positions(8 mm)		130 single tapes	76 single tapes
Feeding options		tape, stick, tray,	tape, stick, tray,
(special feeders on reguest):		re-usetape, stick,	re-usetape, stick,
		tray, re-use	tray, re-use

SMT Pick and place machine Brand

Efficient Technology Co.,Ltd provide a full SMT assembly line solutions, including SMT Production Line, SMT Pick and place machine, SMT Stencil Printer, SMT Inspection equipment, SMT Weling equipment, SMT Intelligent Storage System, SMT Automatic Insertion Machine, SMT Peripheral Equipment, SMT Feeders, SMT Nozzles, SMT Spare Parts etc any kind SMT machines you may need, please contact us for more information:  WeChat: +8613714564591  Email: sales@efsmt.com
