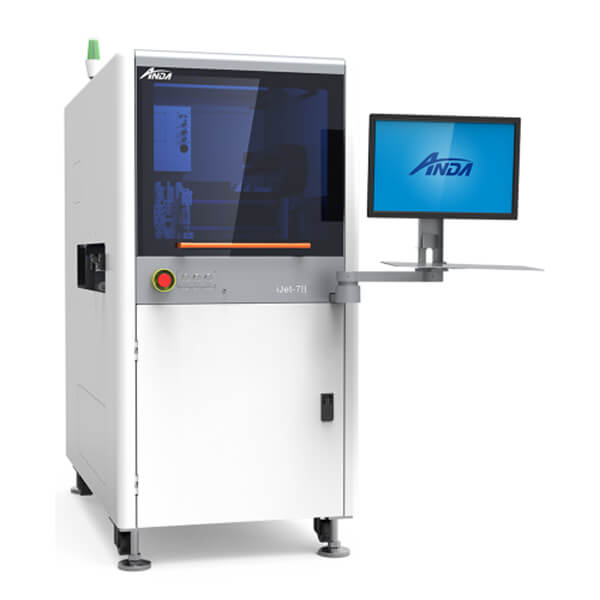

Anda iJet-7H Fluid Dispensing Machine

Standard Work Area : X 400 x Y 480 x Z 30 mm
Maximum Components Height: ± 30 mm(± 1.18") from PCB
PCB Clearance Topside: 30 mm (1.18")
Conveyor Height: 900 ± 20 mm

BASIC INFO

Anda iJet-7H Fluid Dispensing Machine

The iJet-7H is Anda’s flag ship high speed precision fluid dispensing system. This multi-functional dispensing machine delivers the highest operating speed with a combined repeated accuracy of ±0.01 mm (10 µm) for high volume applications.

The systems X&Y axes are equipped with linear motors and its Z axis a servo motor with ball screw actuator. The Anda User Interface software ensures fast dispensing speed and short cycle time. This machine is capable of dispensing adhesives and sealants.

Standard Features

IPC and Windows OS control

CCD visual positioning system

Servo motor with ball screw

Inline CCD visual programming or Gerber upload

UPS and voltage stabilizer

ESD grounding point

CE certified

Optional Features

Heated valves for viscosity control

Tetragonal tilt

PCB heater enhances material flow for underfill applications

Precision weight measurement ensures accurate volumetric dispensing

Laser height detection to calibrate Z axis automatically for component deformation

Multiple valves available: Pneumatic Jet Valve, Slide Valve and Screw Valve

Dual valves configuration for tuning with different glues and applications independently

iJet-7H Specifications

Board Handling
Standard Work Area	X 400 x Y 480 x Z 30 mm
(Single Conveyor & Valve)	(X 15.75" x Y 18.90" x Z 1.18")
Optional Work Area	X 340 x Y 220 x Z 30 mm
(Dual Conveyors & Valves)	(X 13.39"x Y 8.66" x Z 1.18")
Maximum Components Height	± 30 mm(± 1.18") from PCB
Acceleration	1.2 g
PCB Edge Clearance	≥3 mm ( ≥0.12")
PCB Clearance Topside	30 mm (1.18")
Max. Conveyor Width	400 mm (15.75")
Min. Conveyor Width	50 mm (1.97")
Fluid Volume	30 cc
Fluid Level Sensor	Automatic monitor
Smart Auto Nozzle Cleaner	Non-contact vacuum nozzle cleaning
Transmission System
Conveyor Quantity	1 pair
Conveyor Type	Thermostable ESD belt
Process Flow	L to R (Standard), R to L (Optional)
Conveyor Height	900 ± 20 mm (35.43" ± 0.79")
Conveyor Width Adjustment	Automatic (motorized)
Conveyor Speed (XY)	2-13 m/min
Width Adjustment Speed	250 mm/min
Max. Loading	4 kg/m (even distribution)
Vision System
Resolution	1296 x 966 px
Pixel Size	3.75 x 3.75 μm
Light Source	LED coaxial light source and ring light source
XYZ Axis Configuration
No . of Valves	Single valve, Dual valves (option)
Motor	X & Y axes linear module,
Motor	Z axis servo motor with ball screw actuator
Motor Power	DC 24V 69W x 2
Maximum Speed	1200 mm/s
Repeatability Accuracy	± 0.01 mm (± 0.0004") 10 µm
Facility
Standard Footprint	L 790 x W 1600 x H 1600 mm
Standard Footprint	(L 31.10" x W 62.99" x H 62.99")
Weight	700 kg (1540 lb)
Air Requirement	0.6 Mpa
Extraction	≥ 6.5 kg f/m³
Input Power	AC 220V 50/60Hz
Rated Power	2.5 kW
Interface
Controller	IPC and motion control card
Software	Anda UI & Windows OS
Programming	On-line vision programming
Communications Protocol	SMEMA & IPC-CFX
