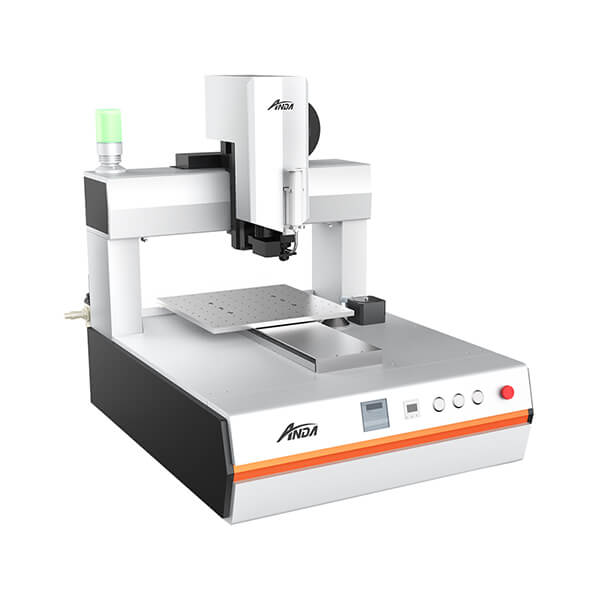

Anda TSV-300 Desktop Dispensing Machine

Work Area: X 300 × Y 300 mm
Maximum Components Height: 95 mm
Operation Height Level: 900 ± 20 mm
Maximum Moving Speed: 1000 mm/s

BASIC INFO

Anda TSV-300 Desktop Dispensing Machine

TSV Series are versatile compact high speed precision tabletop dispensing machines designed for fluid dispensing and jetting applications. Due to their compact size, these dispensing machines are easily portable making them ideal for low volume processes or laboratory tabletop applications.

The TSV Series is equipped with a 3 axes (X, Y, Z) servo motor and ball screw drive system. This dispensing machine series is available in two different models with varying platform work areas and X-Y travel dimensions. The TSV-300 model is 300 x 300 mm and the TSV-400 model is 400 x 400 m

Standard Features

IPC and Windows OS control

Online visual programming

CCD visual positioning system

Servo motor ball screw drive system

Equipped with jetting valves

UPS and voltage stabilizer

CE certified

Optional Features

Continuous fluid heating system

Laser height detection system (calibrates Z axis automatically for component deformation)

TSV-300 Specifications

Dispensing Parameters
Standard Work Area	X 300 × Y 300 mm (X 11.81“ × Y 11.81“ )
Maximum Components Height	95 mm (3.74”)
Operation Height Level	900 ± 20 mm (35.43” ± 0.79”)
Number of Valve	1 set
Nozzle Cleaner	Vacuum cleaning
Transmission System
Number of Axes	X, Y, Z axis
Driver	Servo motor
Maximum Moving Speed	1000 mm/s
Acceleration	0.8 g
Position Accuracy	XY : ± 0.02 mm (0.00078”) @3δ, Z : ±0.01 mm (0.00039”) @3δ
Repeatable Accuracy	XY : < 0.015mm (0.00059”) @3δ, Z : ± 0.005mm (0.00019”) @3δ
Vision & Lighting System
Resolution	1296 x 966 px
Pixel Size	3.75 x 3.75 μm
Light Source	Combination of ring light and co-axial light
Facility
Standard Footprint	L 810 x W 660 x H 760 mm
Standard Footprint	(L 31.88” x W 25.98” x H 29,92”)
Weight	80 kg (176 lb)
Ventilation	12 m3/min
Pressure	95 psi (0.6MPa)
Input Power	AC 220 V 50 / 60 Hz 10 A
Interface
Controller	IPC and motion control card
Software	Anda UI & Windows OS
Programming	On-line vision programming
Communication Protocols	SMEMA & IPC-CFX
