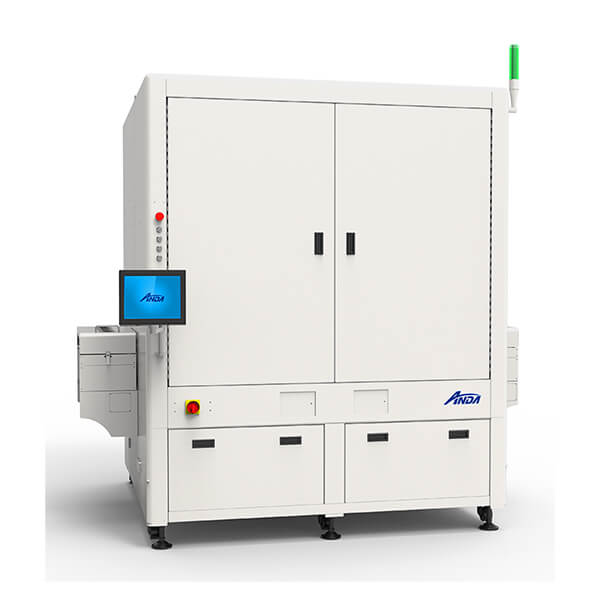

Anda VCO-70 Inline Compact Automated Vertical Curing Oven

Number of Heat Zones: 8 RHA zones
Minimum Cycle Time: ＞12s
Product Spacing Pitch: 25.4 mm
Maximum Product Storage: 70 pieces

BASIC INFO

Anda VCO-70 Inline Compact Automated Vertical Curing Oven

The Anda vertical curing oven (VCO) uses recirculating hot air to accelerate printed circuit board assembly (PCBA) cure times for underfill, epoxy resin encapsulation, and adhesives. Our vertical curing oven works inline with production processes for eliminating manual loading/unloading of batch curing ovens. Unlike horizontal conveyor style ovens, the VCO Series accommodates larger quantities of boards utilizing a compact footprint. This makes vertical curing an ideal solution for processes where factory floor space is limited or in clean room environments.

The uninterrupted curing process of the VCO Series reduces manufacturing costs and improves both production and quality of assemblies. Unlike a batch oven, the doors on the VCO Series remain closed during production ensuring constant heat tracking throughout the curing process, this ensure coatings are precisely cured at controlled temperatures in order to maximize coating strength and provide better PCBA protection.

Standard Features

Uniform temperature & thermal runaway protection

8 independent recirculating hot air (RHA) heating control zones

PID closed loop control

Ergonomic control interface

Modular design allows easy online maintenance & quick heat module replacement

Automatic conveyor width adjustment

Automatic door opening

Entrance/Exit doors reduce heat loss & power consumption

SMEMA communication protocol

CE certified

Optional Features

R to L process flow (Optional)

VCO-70 Inline Infrared Heat Curing Oven

Curing System
Maximum Temperature	150℃
Temperature Accuracy	±5℃
Heating method	Recirculating Hot Air (RHA)
Number of Heat Zones	8 RHA zones
Minimum Cycle Time	＞12s
Minimum Cure Time	＞192s
Transmission System
Product Spacing Pitch	25.4 mm (1″)
Maximum Product Storage	70 pieces
Process Flow	L to R (Standard),
Process Flow	R to L (Optional)
Conveyor Height	900 ± 20mm (35.43” ± 0.79”)
Product Dimensions	L 100 x W 100 mm – L 500 x W 500 mm
Product Dimensions	(L 3.94” x W 3.94” – L 19.68” x W 19.68”)
PCB Rim Space	10 mm (0.39”)
Top Conveyor Clearance	80 mm (3.14”)
Bottom Conveyor Clearance	50 mm (1.96”)
Conveyor Width Adjust	Motorized
Input / Output Door	Motorized
Driving Method	Metal chain conveyor with gear motor
Conveyor Width Adjustment	Automatic (motorized)
Facility
Standard Footprint	L 2450 x W 1800 x H 2500 mm
Standard Footprint	(L 96.45″ x W 70.86″ x H 98.42″)
Weight	2500 kg (1136 lb)
Exhaust Port	150 mm (5.90″)
Power	3 Phase 380 VAC (Standard), 208/480 VAC with transformer (Optional)
Rated Power	35 kW
Interface
Controller	PLC and touch screen
Communication Protocols	SMEMA & IPC-CFX
