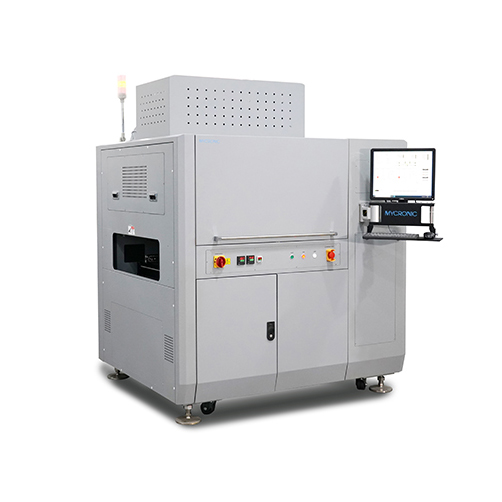

Axxon Mycronic UV200 UV LED curing oven
The UV-200 inline curing tunnel is designed for efficient curing of UV or visible light sensitive adhesives, inks and coating materials.
A variety of lamps are available to meet the requirements of a wide range of applications. The system is designed with complete UV shielding as a safety measure and for optimized cure results. Flexible configuration options allow for the lowest cost of ownership while meeting your needs.
Product Features
- Complete UV shielding
- Adjustable exposure time
- Adjustable conveyor width up to 600mm
- Adjustable conveyor speed control
- Adjustable lamp height
- Lamp life monitor
Specifications
|
Curing system |
UV-200-M |
UV-200-L |
|
Lamp type and brand |
Primarc mercury lamp |
Metal halid lamp |
|
UV lamp type |
Electric arc |
Electric arc |
|
Lamp active wattage |
8KW |
8KW |
|
Number of lamps |
2pcs |
2pcs |
|
Lamp lifetime |
3,000h |
3,000h |
|
Reflector lifetime |
8,000h |
8,000h |
|
Effective irradiation width of a single lamp |
300x600mm |
300x600mm |
|
Effective irradiation area of the oven (LxW) |
600x600mm |
600x600mm |
|
Lamp length |
770mm |
770mm |
|
Lamp diameter |
25mm |
25mm |
|
UV spectrum wavelength |
200-440nm |
200-500nm |
|
Main band |
365nm |
365+395nm |
|
Light intensity |
2,500mw/cm² |
2,500mw/cm² |
|
Adjustable power levels |
YES |
YES |
|
Lamp configuration in machine |
Upper conveyor lampx2 |
Upper conveyor lampx2 |
|
Light traps on the top module |
YES |
YES |
|
Light traps on the bottom module |
NO |
NO |
|
Lamp height adjustment |
Manual adjustable 40-110mm |
Manual adjustable 40-110mm |
|
Cooling method |
Air cooling |
Air cooling |
|
Exhaust fan with low level flow alarm |
YES |
YES |
|

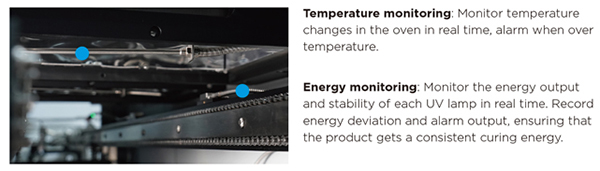

UV temperature measurement sensor |
YES |
YES |
