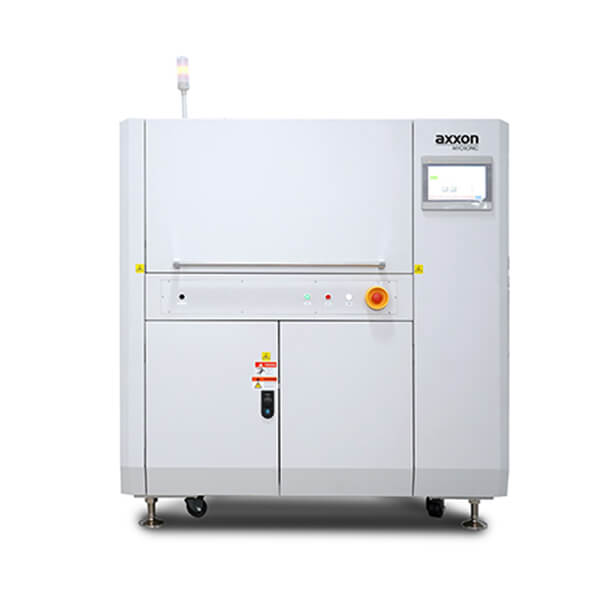

Axxon Mycronic UV150 fusion lamp curing oven
The Axxon Mycronic AUV150 UV curing oven is a compact and efficient inline UV curing oven for curing conformal coating materials, capable of curing the entire UV spectrum making this the most versatile UV oven.
The microwave powered lamps combined with custom-designed high-gloss aluminium reflectors focus the high energy UV light that activates the fluid on the substrate. Shorter curing times enable higher throughputs, all within a footprint of just 1500 mm.
Product Features
ADVANTAGES
- Uniform curing results
- Easy to operate system

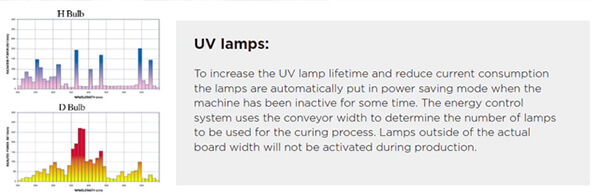

- Both H- as well as D-bulbs available
- Easy exchangeable lamp units
- Long lamp life time
Specifications
|
BASIC PARAMETERS |
AUV150 |
||
|
H-UV-1 |
H-UV-2 |
H-UV-3 |
|
|
Curing technology |
Single fusion UV lamp |
Dual fusion UV lamps |
Triple fusion UV lamps |
|
Lamp type |
H- or D-bulb |
||
|
Curing width |
150mm |
300mm |
450mm |
|
Machine dimension (WxDxH) |
1,500x1,230x1,670mm(without light tower) |
||
|
Control method |
Touch screen+PLC(standard)/IPC (optional) |
||
|
Convey height |
900±20mm |
||
|
Conveyor chain |
5 mm pin chain |
||
|
Board clearance |
±100mm |
||
|
Max conveyor load |
10kg/m |
||
|
Conveyor width adjustment mode |
Auto width adjustment |
||
|
Conveyor width |
50-460mm |
||
|
Control mode |
4kg/m |
||
