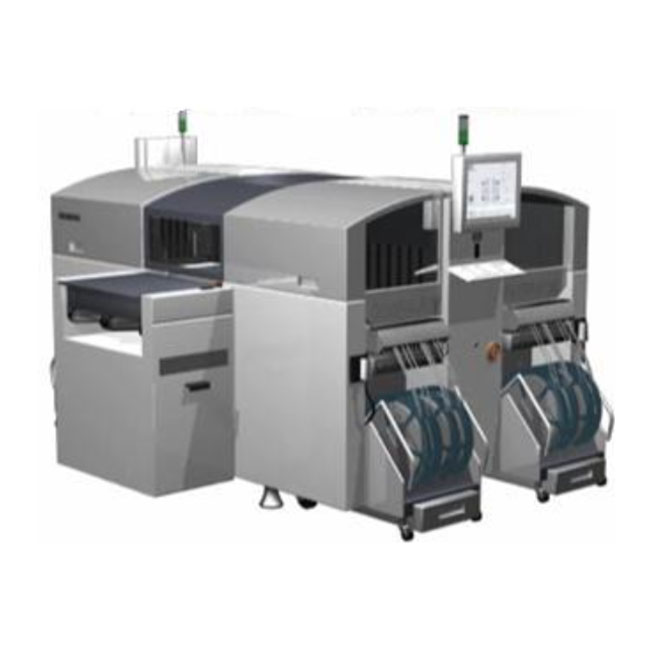

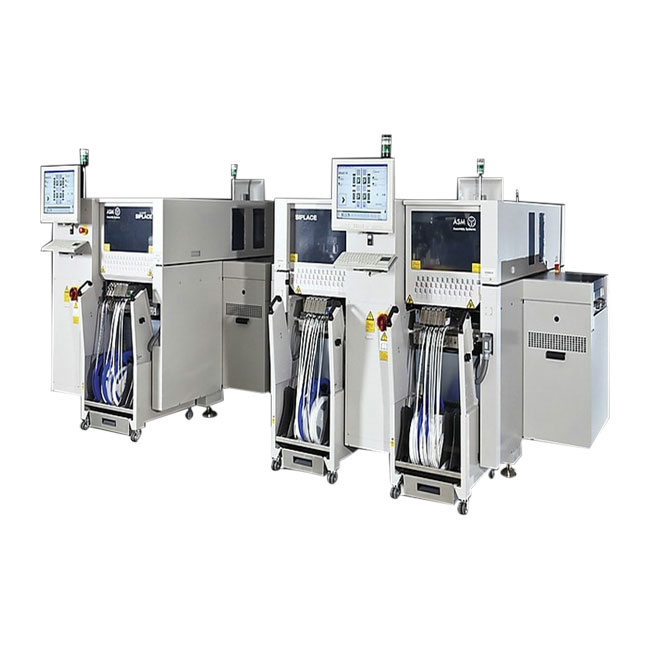

ASM SIPLACE D3 Pick and place machine

BASIC INFO

ASM SIPLACE D3 Pick and place machine

Technical data:

Performance Theoretical value up to 61,000CPH

IPC value up to 37,600CPH

Accuracy ±22μm,±0.05ﾟ@3

PCB size Single rail transmission 50 x 50 to 610 x 508mm

Dual rail transmission 50 x 50 to 610 x 430mm

PCB thickness standard 0.3 to 4.5mm (others can be provided on request)

Feeding quantity: 180 pieces of 8mm rails

Component range 0201" - 200 x 125mm

Quality pickup rate: >/= 99.95%

DPM Rate: Setting Power Supply 200/ 208/ 230/ 380/ 400/ 415VAC ±5%, 50/60Hz

Air supply 5.5bar (0.55MPa) - 10bar (1.0MPa)

Dimensions up to 2380 x 2815 x 2112mm (length x height x width)

Mass 3790kg (basic machine with 4 feeders)

SMT Pick and place machine Brand

FAQ:

Q: What we can do for you?

A: One-stop SMT Solution Supplier; Reliable SMT Partner.

Q.What is your MOQ requirement for the machine?

A. 1 set moq requirement for the machine.

Q. This is the first i use this kind of machine, is it easy to operate?

A: Provide free training，There are also English manuals or instructional videos to show you how to use the machine.

Q: If the machine has any problem after we receive it, how can we do?

A: Our engineer will help to solve it first, and free parts send to you in machine warranty period.

Q: Do you provide any warranty for the machine?

A: Yes 1 year warranty will be provided for the machine.

Q: What is your payment terms?

A: 30% deposit in advance and 70% balance before shipment.
