BASIC INFO

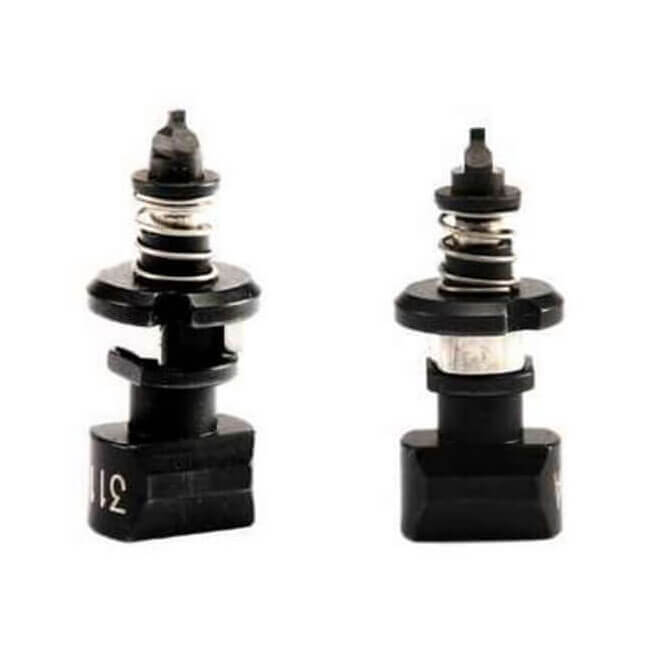

Yamaha YS12 YS12F YS12P YS24 MG-3 Nozzles
| PART No. | NAME | SPECIFICATION | MATERIAL | REMARK |
| KHY-M77A0-A0X | 310A | 0.25×0.35 (○) | CERAMIC | 402 |
| KHY-M7710-A0X | 311A | 0.35×0.75 (□) | CERAMIC | 603 |
| KHY-M7720-A0X | 312A | 1.2×0.45 (□) | CERAMIC | 1005 |
| KHY-M7730-A0X | 313A | 1.3×2.0 | CERAMIC | 2012 |
| KHN-M7710-A1X | 301A | 0.8×0.7 (X) | CERAMIC | 1005 |
| KHN-M7720-A1X | 302A | 1.0×1.7 (X) | CERAMIC | 1608 |
| KHY-M7740-A0X | 303A/314A | Φ4.0/3.0×2.0 | METAL | IC |
| KHY-M7750-A0X | 304A/315A | Φ8.0 | O-ring | SOP,QFP |
| KHY-M7760-A0X | 305A/316A | Φ15.0 | O-ring | SOP,QFP |
| KHY-M7770-A0X | 306A/317A | 3.0×2.0 | METAL | MELF |
| 309A | Φ1.2/Φ0.7 | CERAMIC | 1608 |
