BASIC INFO

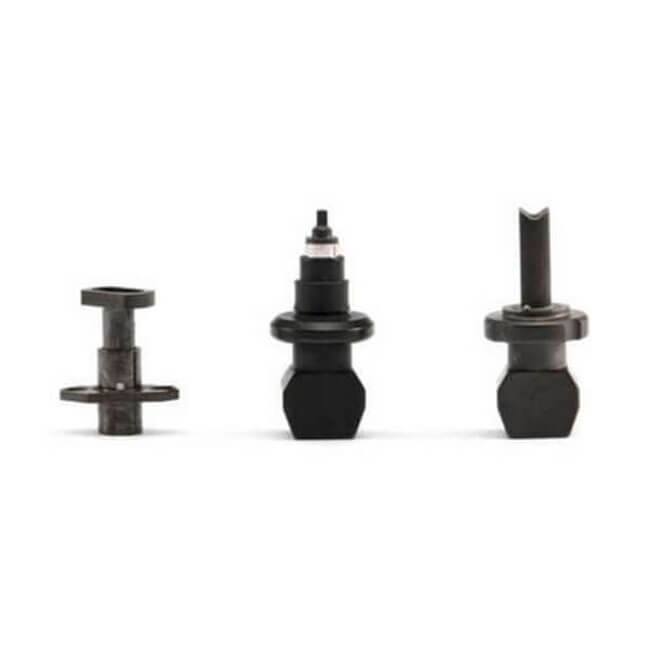

Yamaha YV100X YV100X-F Nozzles
| PART No. | NAME | SPECIFICATION | MATERIAL | REMARK |
| 603 | 0.35×0.65 | CERAMIC | 603 | |
| KV8-M7710-A0X | 71A | 0.7×0.8 (X) | CERAMIC | 1005 |
| KV8-M7720-A0X | 72A | 1.0×1.7 (X) | CERAMIC | 1608 |
| KV8-M7730-A1X | 73A | Φ4.0/3.0×2.0 | METAL | IC |
| KV8-M7740-A1X | 74A | Φ8.0 | O-ring | SOP, QFP |
| KV8-M7760-A1X | 76A | 3.0×2.0 | METAL | MELF |
| KV8-M77WL-A00 | 79A | Φ1.2/Φ0.7 | CERAMIC | 1608 |
| KV8-M71U1-002 | 71F | 0.7×0.8 (X) | CERAMIC | 1005 |
| KV8-M71N2-A00 | 72F | 1.0×1.7 (X) | CERAMIC | 1608 |
| KV8-M71N3-A00 | 73F | Φ4.0/3.0×2.0 | METAL | IC |
| KV8-M7WL-A00 | 79F | Φ1.2/Φ0.7 | CERAMIC | 1608 |
