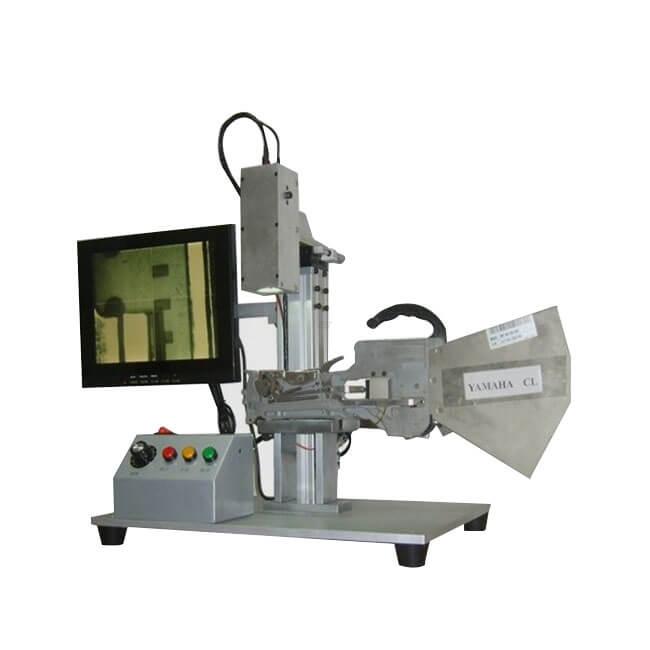

Yamaha CL Feeder Calibration jig
With simple structure, simple operation, and optimized function. And the use of high-precision 0 gap guide, to ensure positional stability, greatly improve work efficiency.
2.High accurate inspection. Pick up position, height, all can be measured with accuracy so that can better measure the quality.
3.With 10 inch LED display, circled LED lighting, 50X CCD, tight structure.
4.Simple operation, can simulate the SMT machine, monitor
The pickup position continuously automatically, so can better understand the feeder running quality in order to control the casting rate.
1）Precise XY axis adjustment;
2）Axis camera can be directly adjusted;
3）220V/24V DC power supply;
4）black and white cross reference cursor;
5）Automatically step function;
6）bright LED display;
7）precise control fixtures feeders;
8）precise 8mm,12mm,16mm and 24 mm feeders control band.
Uses for : FEEDER calibration jig for calibration of various models
Power supply: 220V/24V
Compressed air requirements: 5kg/cm2
Dimensions: L500mm * W 350mm * H550mm
Weight: about 35kg
SMT Inspection Equipment Brand
Efficient Technology Co.,Ltd provide a full SMT assembly line solutions, including SMT Production Line, SMT Pick and place machine, SMT Stencil Printer, SMT Inspection equipment, SMT Weling equipment, SMT Intelligent Storage System, SMT Automatic Insertion Machine, SMT Peripheral Equipment, SMT Feeders, SMT Nozzles, SMT Spare Parts etc any kind SMT machines you may need, please contact us for more information: WeChat: +8613714564591 Email: sales@efsmt.com
FAQ:
Q: What we can do for you?
A: One-stop SMT Solution Supplier; Reliable SMT Partner.
Q.What is your MOQ requirement for the machine?
A. 1 set moq requirement for the machine.
Q. This is the first i use this kind of machine, is it easy to operate?
A: Provide free training，There are also English manuals or instructional videos to show you how to use the machine.
Q: If the machine has any problem after we receive it, how can we do?
A: Our engineer will help to solve it first, and free parts send to you in machine warranty period.
Q: Do you provide any warranty for the machine?
A: Yes 1 year warranty will be provided for the machine.
Q: What is your payment terms?
A: 30% deposit in advance and 70% balance before shipment.
