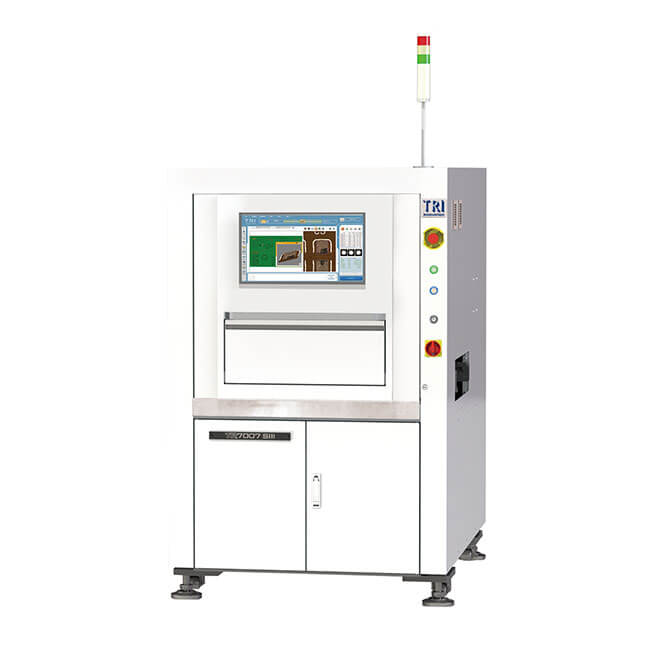

TRI TR7007 SIII SPI Machine
The TR7007 SIII performs at an industry-leading speed of up to 200 cm2/sec. The TR7007 SIII is built on an enhanced mechanical platform to guarantee stability, accuracy, and precision during the inspection. The 3D SPI is an Industry 4.0 Ready Solution supporting the upcoming and innovative protocols such as IPC Connected Factory Exchange (CFX) and IPC Hermes 9852 standard.
Features
• Industry-leading inspection speed up to 200 cm2/sec
• Ready to Inspect in Minutes with TRI's Smart Programming
• Multiple Industry Applications: Telecom, Consumer electronics and more
• Closed Loop Ready: Feedback and Feedforward Capabilities
• Smart Factory solution with Real-time SPC Trends
Specification
SMT Inspection Equipment Brand
Efficient Technology Co.,Ltd provide a full SMT assembly line solutions, including SMT Production Line, SMT Pick and place machine, SMT Stencil Printer, SMT Inspection equipment, SMT Weling equipment, SMT Intelligent Storage System, SMT Automatic Insertion Machine, SMT Peripheral Equipment, SMT Feeders, SMT Nozzles, SMT Spare Parts etc any kind SMT machines you may need, please contact us for more information: WeChat: +8613714564591 Email: sales@efsmt.com
FAQ:
Q: What we can do for you?
A: One-stop SMT Solution Supplier; Reliable SMT Partner.
Q.What is your MOQ requirement for the machine?
A. 1 set moq requirement for the machine.
Q. This is the first i use this kind of machine, is it easy to operate?
A: Provide free training，There are also English manuals or instructional videos to show you how to use the machine.
Q: If the machine has any problem after we receive it, how can we do?
A: Our engineer will help to solve it first, and free parts send to you in machine warranty period.
Q: Do you provide any warranty for the machine?
A: Yes 1 year warranty will be provided for the machine.
Q: What is your payment terms?
A: 30% deposit in advance and 70% balance before shipment.
Imaging Method
Dynamic Imaging
Camera
4 Mpix
Imaging Resolution
10 μm, 15 µm (factory setting)
Lighting
Wide Spectrum 2D Lights (RGB+W), Coaxial Lighting
3D Technology
2-way Fringe Pattern
Field of View
4 Mpix@ 10 µm: 20 x 20 mm
4 Mpix@ 15 µm: 30 x 30 mm
Inspection Performance
Imaging Speed
4 Mpix@ 10 µm: 90 cm²/sec
4 Mpix@ 15 µm: 200 cm²/sec
Height Resolution
0.4 µm
Max. Solder Height
@ 10 µm: 400 µm
@ 15 µm: 385 µm
Motion Table & Control
X-Axis Control
Linear motor + Linear Scale + EtherCAT Servo
Y-Axis Control
AC motor with ball screw + EtherCAT Servo
Z-Axis Control
AC motor with ball screw + EtherCAT Servo
X-Y Axis Resolution
0.5 µm
Z-Axis Resolution
1 µm
Board Handling
Max PCB Size
TR7007 SIII: 510 x 460 mm
TR7007 SIII DL: 510 x 310 mm x 2 lanes, 510 x 590 mm x 1 lane
PCB Thickness
0.6-5 mm
Max PCB Weight
3 kg
Top Clearance
50 mm
Bottom Clearance
40 mm
Edge Clearance
3 mm
Conveyor Height
880 – 920 mm
* SMEMA Compatible
Inspection Functions
Defects
Insufficient Paste
Excessive Paste
Shape Deformity
Missing Paste & Bridging
Measurement
Height
Area
Volume
Offset
Dimensions
WxDxH
TR7007 SIII: 1100 x 1480 x 1600
TR7007 SIII DL: 1100 x 1705 x 1600 mm
Note: not including signal tower, signal tower height 512 mm
Weight
TR7007 SIII: 740 kg
TR7007 SIII DL: 925 kg
