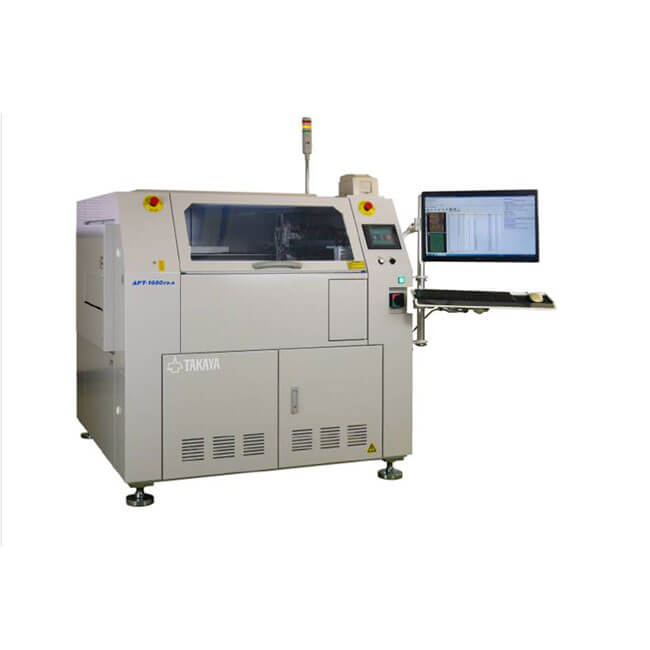

TAKAYA APT-1600FD Flying Probe Tester

Measuring range: -5.0 to +50.0mm (-0.95″ to +1.95″)
Repeatability: ±100µm or less
Board size: L50 × D50mm (2″×2″) to L540 × D483mm (21″×19″)
Main body dimensions (W×D×H), Weight：1400×1500×1400mm (55″×59″×55″), 1450Kgs (3200 lb)

BASIC INFO

Dual-side Flying Probe Tester

Four probes are equipped above the top surface and two under the bottom surface of the circuit board.

The APT-1600FD Series is a dual-sided flying probe test system which deploys the flying probes to both sides of a printed circuit board. Owing to the simultaneous dual-sided probing contact, the APT-1600FD Series can contribute to a marked increase in test coverage with shortest amount of test time.

The APT-1600FD Series has world-class test speed and positioning accuracy, and is equipped with laser height measurement system, LED test sensors and a wealth of extraordinary test functionalities that significantly expand the application possibilities of flying probe tester.

Exclusive Features of the TAKAYA Flying Probe APT-1600FD Series

4 – Heads and 6 – Flying Probes from Top

2 – Heads and 4 – Flying Probes from Bottom

Unprecedented Test speed

Strong and Rigid Granite XY stage

High-end and High-precision Measurement Unit

NSW Test for shortening of test time

Easy & User-Friendly Software and Security Function

In-Line System (APT-1600FD-A)

Attenuating Contact Pressure of Probes

Flexible PCB Clamp system

Enhanced Test Area & Clearance
