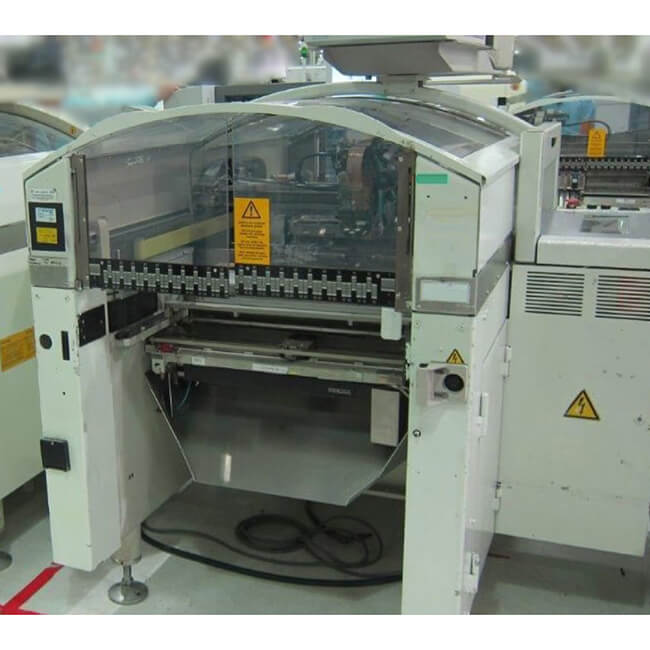

Siemens Siplace S20 Pick and place machine

Main technical parameters:

1. Available component sizes: from 0201 (0.25mm x 0.5mm) to 18.7mm x 18.7mm.

2. Types of parts that can be pasted: resistors, capacitors, inductors, Flip Chip, QFP, TSOP, PLCC to PLCC44, SO to SO32, DRAM, BGA, u BGA, QFP, CSP, connectors and other special-shaped parts, etc.

3. Types of parts that can be loaded at one time: 120 types (8 mm parts).

4. Placement speed: 20,000 parts/hour.

5. Chip placement accuracy: 68um (at 3 sigma).

6. Size of PCB that can be attached:

In single track: PCB length and width range from 50mm x 50mm to 460mm x 460mm;

In case of double tracks: PCB length and width range from 50mm x 50mm to 460mm x 216mm.

7. Applicable PCB thickness: 0.5mm to 4.5mm.

8. Maximum PCB weight: 3 kg. Both hard and soft boards can be mounted.

9. Power supply requirements: 230/400 V~ / 119/208 V~± 5%, 50/60 Hz

10. Power consumption: 4 KW (at full load).

11. Air consumption: 250 liters/minute (at minimum pressure of 5.5 kg).

12. Weight: 2.0 tons.

13. Dimensions: 1.6m x 2.5m x 1.7m (length x width x height).
