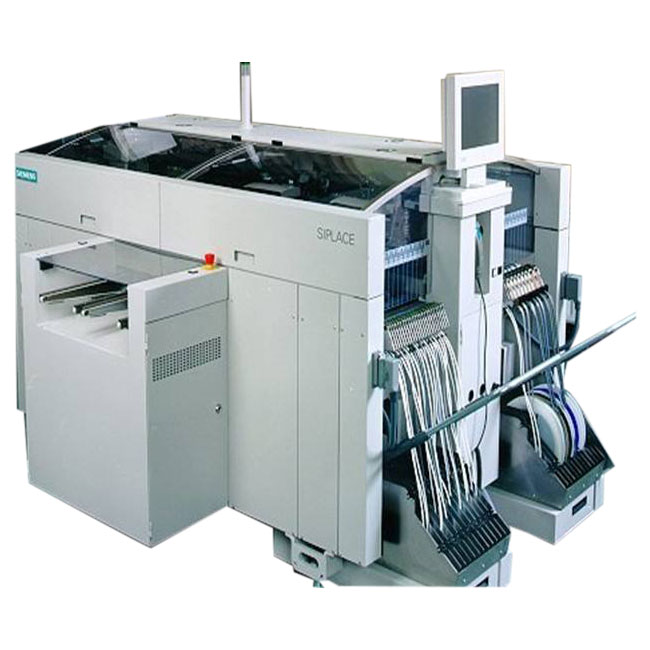

Siemens Siplace HF Pick and place machine

Placement Speed :28,000CPH
Applicable PCB : 50*50 - 450*508mm
Applicable Part :0201 - 85mm
Accuracy: ± 60μm

BASIC INFO

Siemens Siplace HF Pick and place machine

Siemens HF placement machine, siplace HF multi-function placement machine detailed introduction:

Siemens HF placement machine, siplace HF multi-function placement machine Description: Placement head type: double placement head and/or 12 nozzle collection placement head and/or 6 nozzle collection placement head, cantilever number:

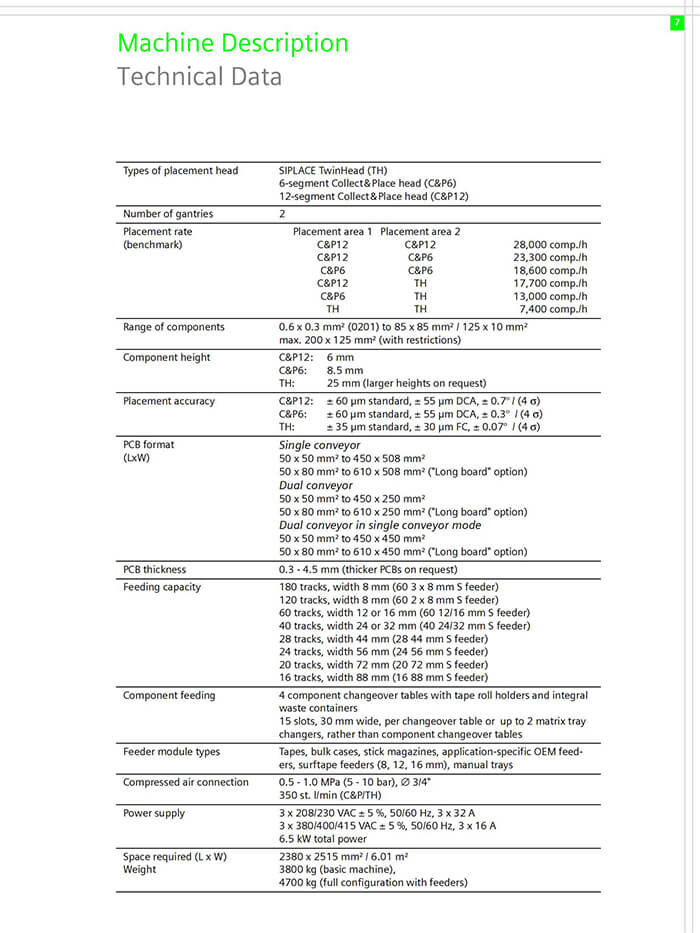

Siemens HF placement machine main technical parameters:
Placement head type: double placement head and/or 12 nozzle collection placement head and/or 6 nozzle collection placement head
Number of cantilevers: 2

Placement head module:
Placement head area 1: dual placement head or 6-nozzle collection placement head or 12-nozzle collection placement head
Placement head area 2: dual placement head or 6-nozzle collection placement head or 12-nozzle collection placement head
Placement rate (theoretical value)
Placement head configuration Placement rate
12C&P/12C&P 28000 pieces/hour
12C&P/6C&P 23300 pieces/hour
12C&P/dual placement head 17700 pieces/hour
6C&P/6C&P 18600 pieces/hour
Dual placement head/dual placement head 7400 pieces/hour
Placement range: 0201 to 85 x 85mm/125x10mm Maximum 200x125mm
Component height: dual placement head 25mm/ 6C&P:8.5mm/12C&P:6mmm
Highest placement accuracy (4sigma):
12 nozzle collection and placement head: 60um
6 nozzle collection and placement head: 60um
Dual placement head: 35um
Rack support: 180 pieces, 8mm strip
IC placement head: 40um
Applicable substrate: 50x50mm~450 x 508mm
Power: 6.5KW
Compressed air requirements: 5.5~10bar, 350Nl/min, pipe diameter 3/4"
