Siemens Siplace F5 Pick and place machine

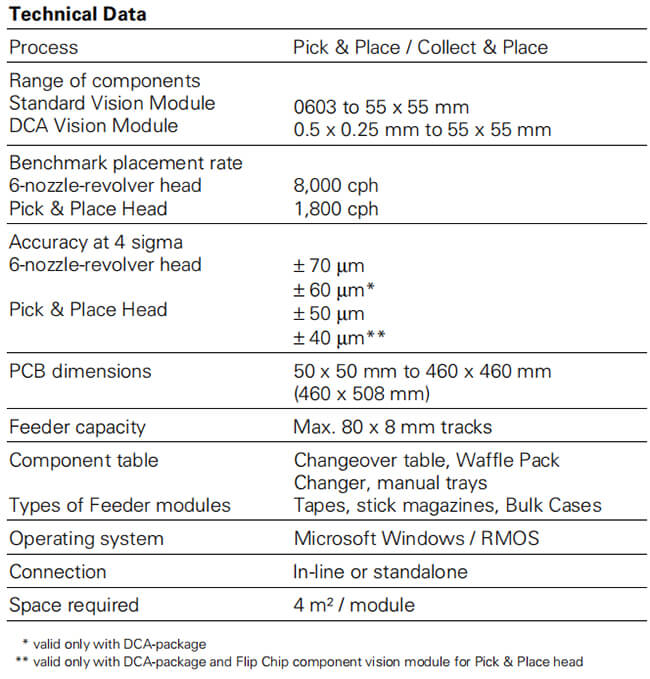

Placement Speed : 8,000 CPH
Applicable PCB : 50*50 - 1525*560mm
Applicable Part : 0603 - 55 x 55 mm
Accuracy: ±40 μm

BASIC INFO

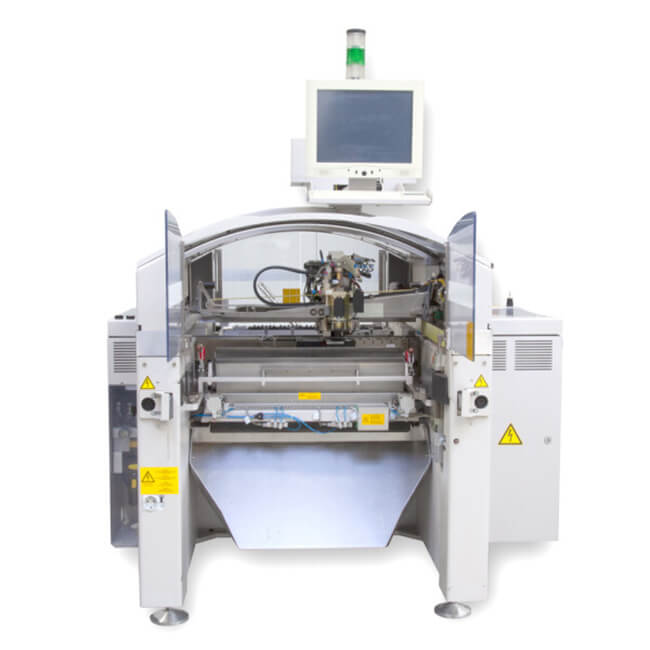

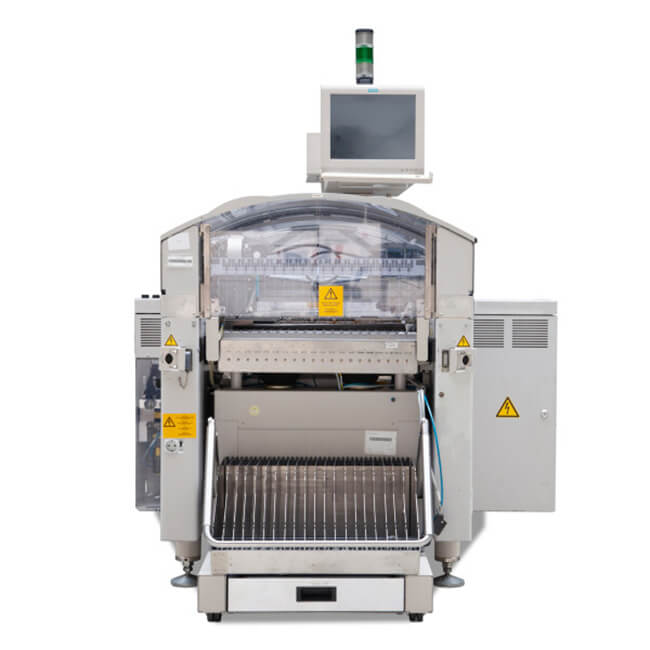

Siemens Siplace F5 Pick and place machine

SIPLACE F5 HM combines the Pick & Place Head with the Collect & Place Head to unite high precision with high speed.

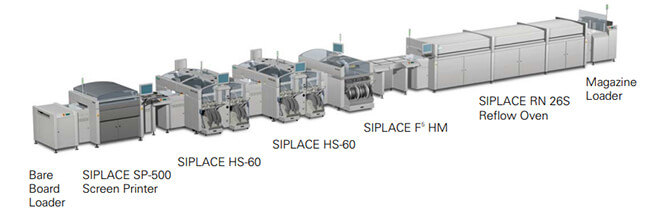

SIPLACE F5 HM is capable for stand-alone as well as for integration into a SIPLACE line.

The SIPLACE F5 HM holds both the component feeder table and the PCB stationary while populating boards.

While the PCB is transferring from the buffer zone to the stationary population zone, the Collect & Place Head is already picking up components. As soon as the PCB´s exact position is determined by the PCB camera, the Collect & Place Head will move into the population zone and perform its placement sequence.

This step will be repeated until all components assigned to the Collect & Place Head are placed. As soon as the Collect & Place Head has finished, the Pick & Place Head begins picking up and placing the components assigned to it, until the board is complete.

For a SIPLACE F5 HM configured with 6-Nozzle Collect & Place Head a DCA-package is available, which contains a DCA vision module instead of the standard vision module.

A Flip Chip (FC)-package is also available, which contains a FC vision module instead of the standard vision module for the Pick & Place Head.
