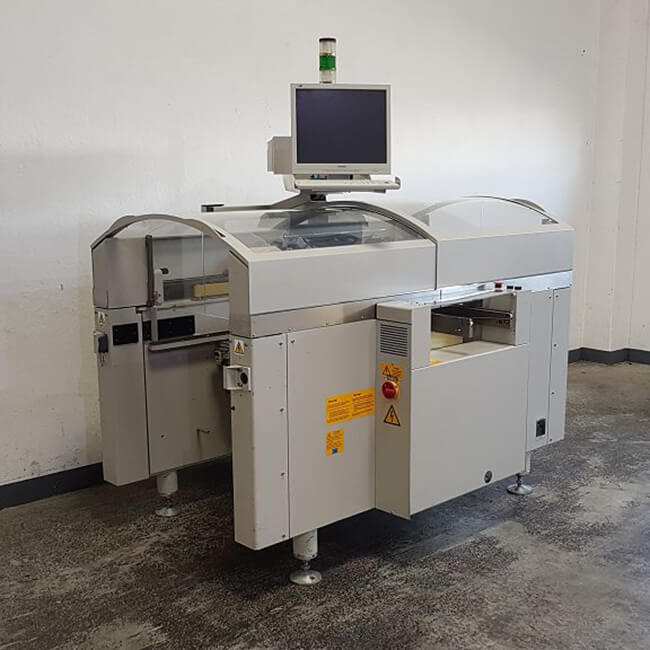

Siemens Siplace F4 Pick and place machine

Placement Speed :10,000 CPH
Applicable PCB : 45*45 - 460*460mm
Applicable Part : 0402-55 mm
Accuracy: ±37.5 μm @ 3 σ

BASIC INFO

Siemens Siplace F4 Pick and place machine

SIEMENS Siplace F4 is a solution for pc board assembly and manufacturing. It offers a comprehensive equipment with a variety of features and capabilities designed to make pc board assembly easier. The F4 features a 2-part feeder loader configuration. This ensures high throughput and rapid set up, enabling up to 600 components to be loaded in a single cycle. The feeder loader also features a visual inspection system that helps to ensure the accuracy of placement. It can also automatically identify missing elements to help reduce waste. The F4 is equipped with an advanced placement head, which can achieve a placement accuracy of +-0.020mm. This makes it suitable for the assembly of highly precise components such as BGAs and QFNs. It also has an efficient vision unit that ensures high accuracy on difficult boards. The F4's process control machine is highly automated, providing users with real-time information about the total assembly process. This allows operators to track and identify component faults, diagnose issues and ensure maximum yield. Siplace F4 is also designed to protect the components from damage and humidity. Its component centering tool offers a low-pressure, low-vacuum seal that helps protect components from heat. The F4 also features an isolation asset that protects the board from dust and other contaminants. Overall, SIEMENS Siplace F4 is a advanced pc board assembly and manufacturing model that offers users a comprehensive and efficient solution. Its accuracy, automation, and components protection capabilities make it an excellent choice for a range of applications.
